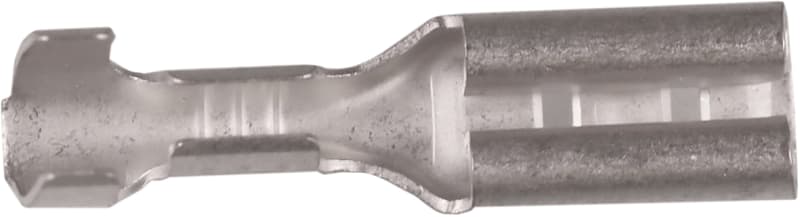

Elpress B1003FLS8 Receptacle, Rolled Type, 0.5-1 mm²
Part numberB1003FLS8EAN / GTIN7393487003521HS code8536.90
Electrical Components
Cable Lugs
MOQ:1
Pricing
Request a quote
We reply within 24 hours
Product Description
Elpress B1003FLS8 Uninsulated blade receptacle.
Technical Specifications
- Manufacturer part number (MPN)
- B1003FLS8
- EAN / GTIN
- 7393487003521
- Sales unit
- pcs
- Package quantity
- 100 pcs
- Article number
- 7167-500200
- Type designation
- B1003FLS8
- e (mm)
- 5
- L (mm)
- 12.7
- t (mm) - palm thickness
- 0.3
- s (mm) - strip length
- 7
- Tab Size
- 2,8x0,8
- AWG/MCM Cu
- 20 - 18 AWG
- mm² Cu
- 0,5-1
- Model
- Sleeve
- Material
- Brass
- AWG-range, Min
- 20
- AWG-range, Max
- 18
- Nominal cross section, Min (mm²)
- 0.5
- Nominal cross section, Max (mm²)
- 1
- Pieces per pack
- 100
- Net weight (kg)
- 0.0003
- Height Pack (mm)
- 100
- Depth Pack (mm)
- 60
- Width Pack (mm)
- 22
- Surface protection
- Tinned
- Insulation
- Not insulated
- Plug dimensions
- Flat 2.8x0.8 mm
- Nominal cross section
- 0.5–1 mm²
- With cam clamp
- No
- With tap spreader
- No
- Country of origin
- France
Standards & Compliance
- HS Code
- 8536.90
Cross References
- EAN 7393487003521
- SAP 1000070922
- Code 8561230
Product Documentation
Document preview: Elpress B1003FLS8 Receptacle, Rolled Type, 0.5-1 mm² — Specification sheet
More from Elpress
Elpress
KRF16-12-CP (7301-012403)
Elpress
Elpress UNINSULATED RING TERMINAL 0,75-1,5 B1510R
Elpress

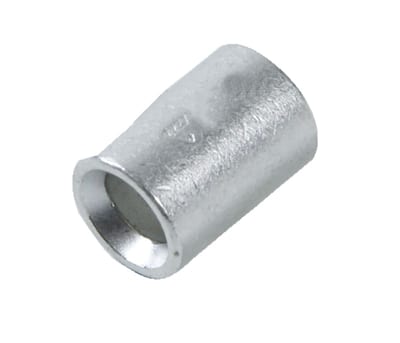

KS10P (7303-050300)
Elpress

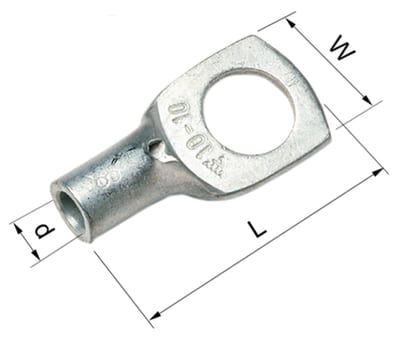

Elpress KR10-6-CP Copper Tube Cable Lug 10 mm² M6
Kr10-6-Cp
Elpress

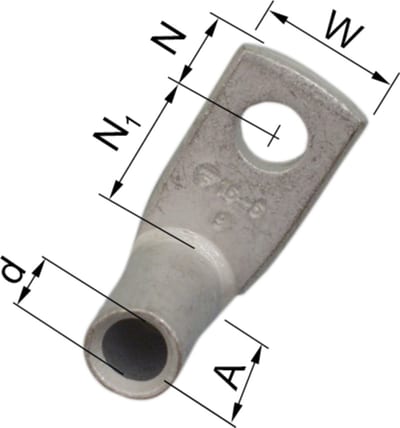

Elpress KRF35-6-90GR Copper 90° Angled Tube Cable Lug 35 mm² M6
Elpress
KRF35-12-CP (7301-013403)
Elpress

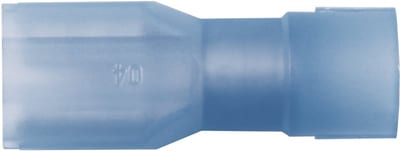

Elpress A2507FLSF
Elpress

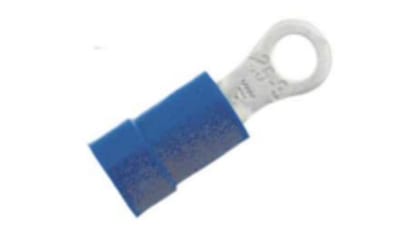

Elpress ISOL A2537R
