Elma Instruments

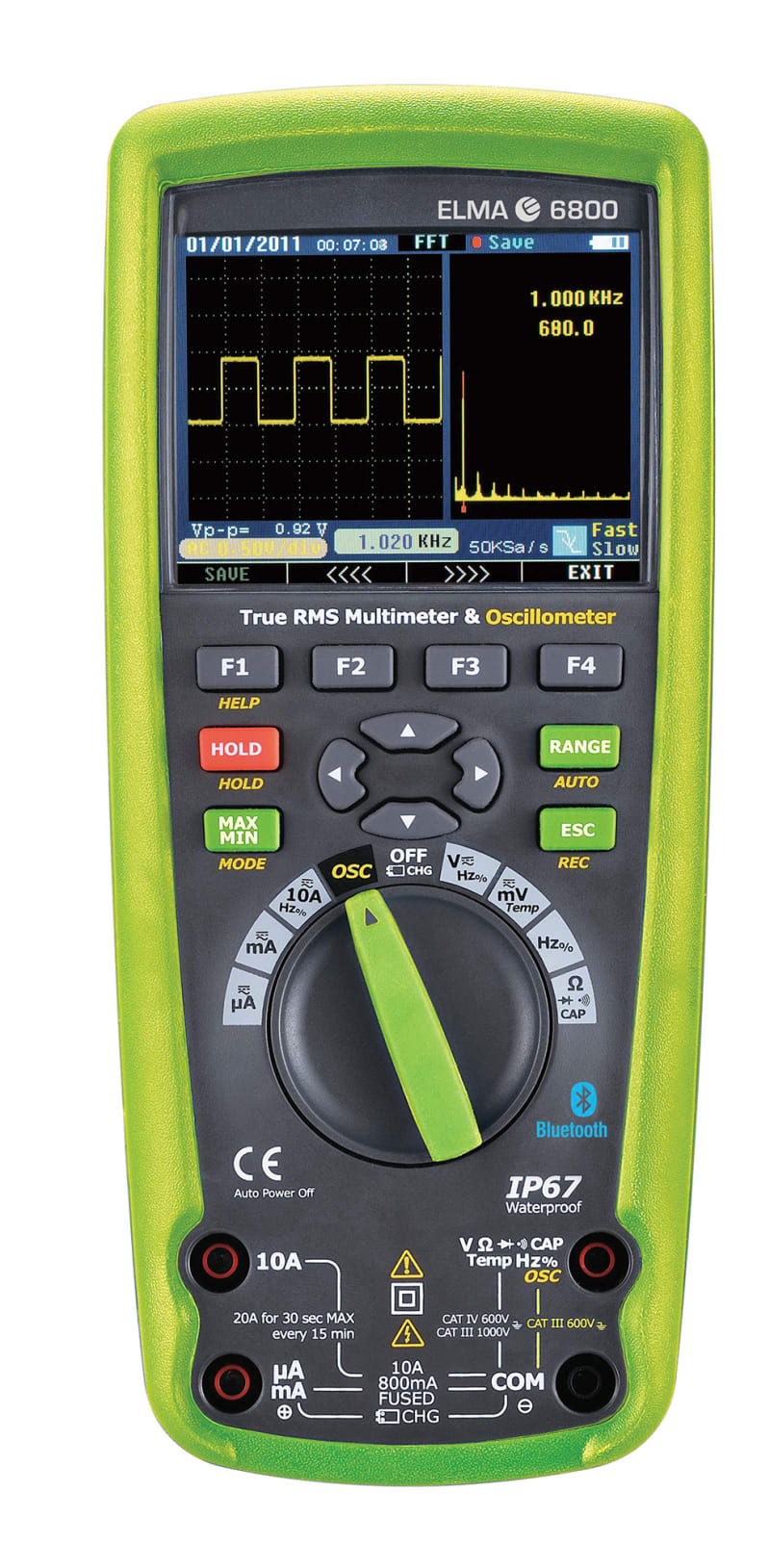

Elma 6800 Graphic multimeter
Part numberDT-9989EAN / GTIN5706445840229HS code9030.89
Sensors & Instrumentation
Meters & Analysers
MOQ:1
Pricing
Request a quote
We reply within 24 hours
Product Description
Elma Instruments DT-9989 Elma 6800 Graphic multimeter.
Technical Specifications
- Manufacturer part number (MPN)
- DT-9989
- EAN / GTIN
- 5706445840229
- Sales unit
- pcs
- Measured value memory
- Yes
- Indication
- Graphic
- Measuring range selection
- Manual/automatic
- True RMS measurement
- Yes
- Continuity test
- Yes
- Interface
- Yes
- Capacitance measurement
- Yes
- Frequency measurement
- Yes
- With decibel measurement (dB)
- No
- Data hold
- Yes
- IR interface
- Yes
- Explosion-tested version
- No
- Analogue bar graph display
- Yes
- Bluetooth interface
- Yes
- Resistance test/diode test
- Yes
- Inductance measurement
- No
- Lowest resolution, DC voltage
- 0.001 mV
- Lowest resolution, DC current
- 0.01 µA
- Lowest resolution, AC voltage
- 0.001 mV
- Lowest resolution, AC current
- 0.01 µA
- Lowest resolution, resistance
- 0.0001 Ohm
- With conductivity measurement
- No
- Max. voltage measuring range AC
- 1000 V
- Max. voltage measuring range DC
- 1000 V
- Max. current measuring range, AC
- 10 A
- Max. current measuring range, DC
- 10 A
- Max. resistance measuring range
- 50 MOhm
- Max. value storage
- Yes
- Multiple display
- Yes
- Measuring circuit category
- CAT IV
- Min. value storage
- Yes
- Nominal test voltage 100 V
- No
- Nominal test voltage 1000 V
- No
- Nominal test voltage 250 V
- No
- Nominal test voltage 500 V
- No
- Relative value measurement
- Yes
- Peak value memory
- Yes
- Duty cycle measurements
- Yes
- Degree of protection (IP)
- IP67
- Max. temperature measuring range
- 1350 °C
- Lowest resolution temperature
- 0.1 °C
- Max. capacitance measuring range
- 10000 µF
- Lowest resolution, capacitance
- 0.00001 µF
- Max. frequency measuring range
- 10000 kHz
- Lowest resolution, frequency
- 0.01 Hz
- Analogue bar graph display analogue/logarithmical
- Yes
- Temperature measurement RTD
- Yes
- Temperature measurement TC
- Yes
- Nominal test voltage 10 V
- No
- Nominal test voltage 50 V
- No
- Cable length measurement
- No
- Cable symmetry testing for two wire connections a-b-E
- No
- Power and energy measurement
- No
- Harmonics analysis/power quality
- No
- Rotational speed measuring
- No
- Automatic circuit breaker
- Yes
- Max. voltage measuring circuit category
- 600 V
- With display backlight
- No
- Country of origin
- China
Standards & Compliance
- HS Code
- 9030.89
Cross References
- EAN 5706445840229
- SAP 1000468802
- Code 8780244
Product Documentation
Document preview: Elma 6800 Graphic multimeter (DT-9989) — Specification sheet
More from Elma Instruments
Elma Instruments

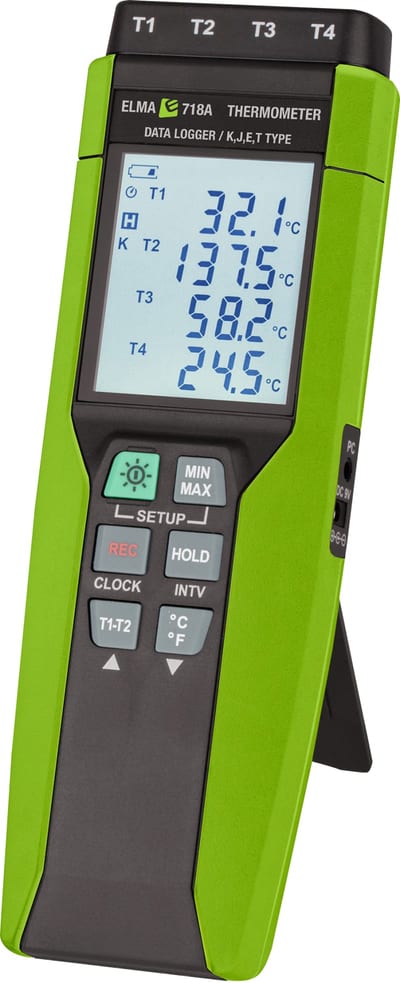

ELMA 718 TEMP Meter (42718)
Elma Instruments

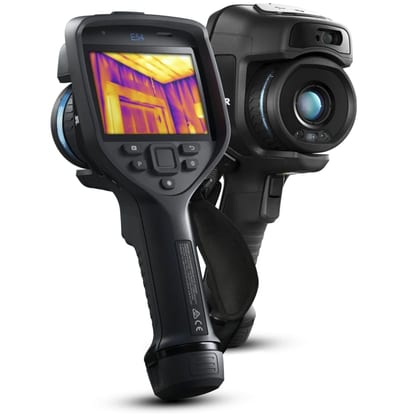

FLIR E54 Thermal Imaging Camera (24° lens)
4743254004733
Elma Instruments

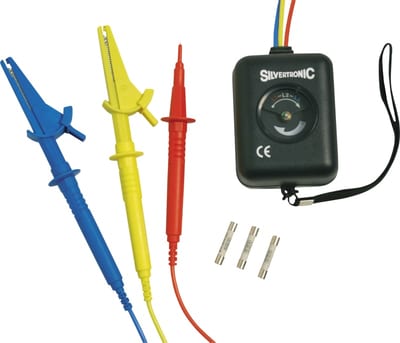

Elma Instruments Kyoritsu 8031 Phase-Sequence and Rotating-Field Tester
8023692
Elma Instruments

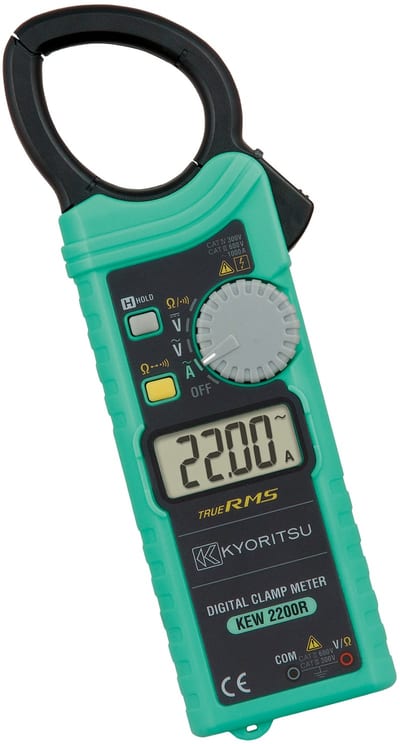

KEW 2200R (4560187065767)
Elma Instruments

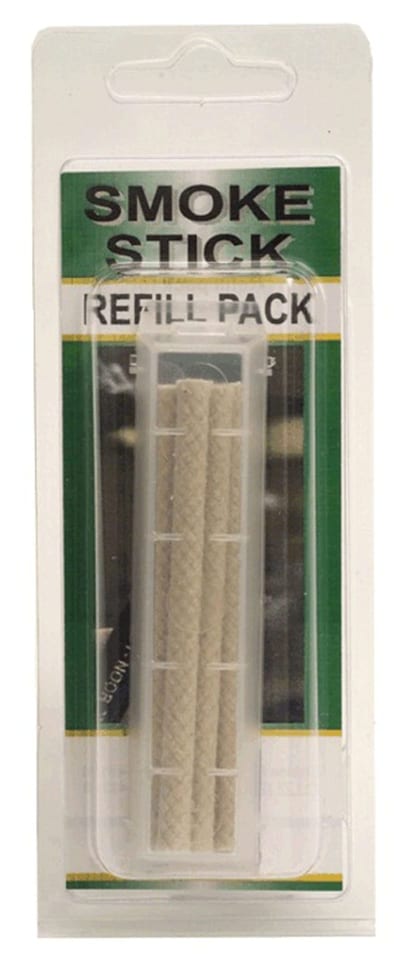

Elma Instruments Refill Wicks for Elma Smoke Pen, 6 x 85 mm
42.2482
Elma Instruments

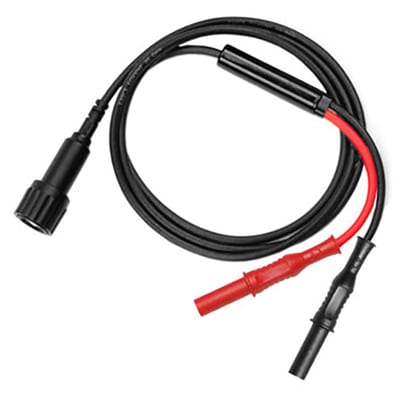

50 Ohm banan for BNC han adapter 1M
8022189
Elma Instruments

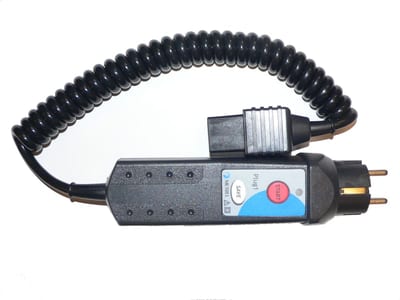

Eurotest A1170 P.Commander
5706445481002
Elma Instruments

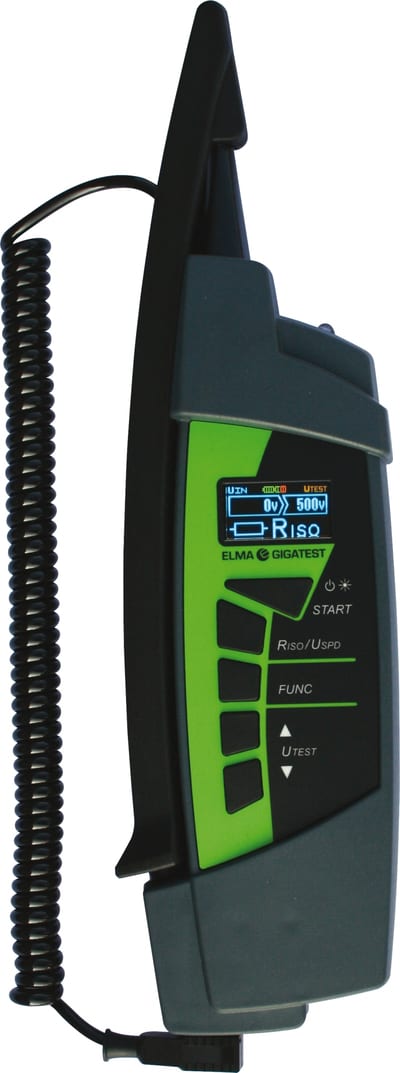

Elmagigatest Insulation Tester
