Elma Instruments

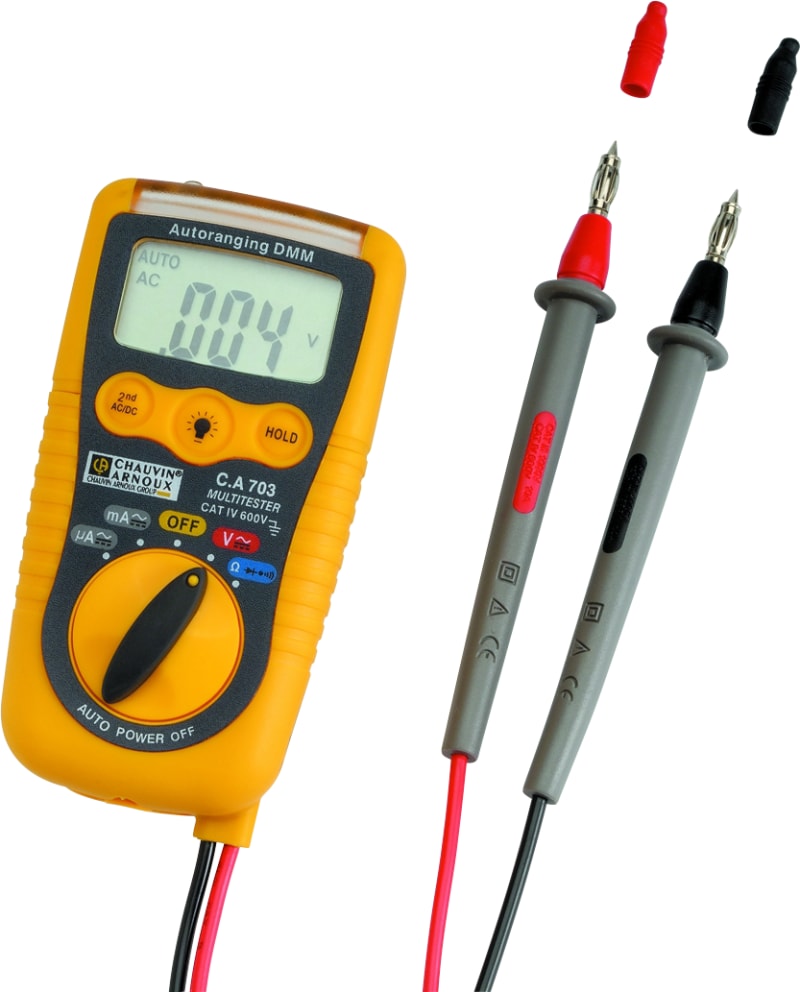

CA703 Multimeter (8024153)
Part number8024153HS code9030.39
Sensors & Instrumentation
Meters & Analysers
MOQ:1
Pricing
Request a quote
We reply within 24 hours
Product Description
Elma Instruments 8024153 Multimeter.
Technical Specifications
- Manufacturer part number (MPN)
- 8024153
- Sales unit
- pcs
- El-nummer (NO)
- 8024153
- ETIM class
- SC000069
- Measured value memory
- No
- Indication
- Digital
- Measuring range selection
- Automatic
- True RMS measurement
- Yes
- Continuity test
- Yes
- Interface
- No
- Capacitance measurement
- No
- With decibel measurement (dB)
- No
- Data hold
- Yes
- IR interface
- No
- Explosion-tested version
- No
- Analogue bar graph display
- No
- Bluetooth interface
- No
- Inductance measurement
- No
- Lowest resolution, DC voltage
- 1 mV
- Lowest resolution, DC current
- 1 µA
- Lowest resolution, AC voltage
- 1 mV
- Lowest resolution, AC current
- 1 µA
- Lowest resolution, resistance
- 0.001 Ohm
- With conductivity measurement
- No
- Max. voltage measuring range AC
- 600 V
- Max. voltage measuring range DC
- 600 V
- Max. current measuring range, AC
- 0.2 A
- Max. current measuring range, DC
- 0.2 A
- Max. resistance measuring range
- 20 MOhm
- Max. value storage
- Yes
- Multiple display
- No
- Measuring circuit category
- CAT IV
- Min. value storage
- Yes
- Nominal test voltage 100 V
- No
- Nominal test voltage 1000 V
- No
- Nominal test voltage 250 V
- No
- Nominal test voltage 500 V
- No
- Relative value measurement
- No
- Peak value memory
- Yes
- Duty cycle measurements
- No
- Analogue bar graph display analogue/logarithmical
- No
- Temperature measurement RTD
- No
- Temperature measurement TC
- No
- Nominal test voltage 10 V
- No
- Nominal test voltage 50 V
- No
- Cable length measurement
- No
- Cable symmetry testing for two wire connections a-b-E
- No
- Power and energy measurement
- No
- Harmonics analysis/power quality
- No
- Rotational speed measuring
- No
- Automatic circuit breaker
- No
- Max. voltage measuring circuit category
- 600 V
- Country of origin
- France
Standards & Compliance
- HS Code
- 9030.39
Cross References
- 5706445291373
- El-nr 8024153
Product Documentation
Document preview: CA703 Multimeter (8024153) — Specification sheet
More from Elma Instruments
Elma Instruments
Elma Instruments EziCAT i550-T100 Cable Locator Kit
EZICAT
Elma Instruments

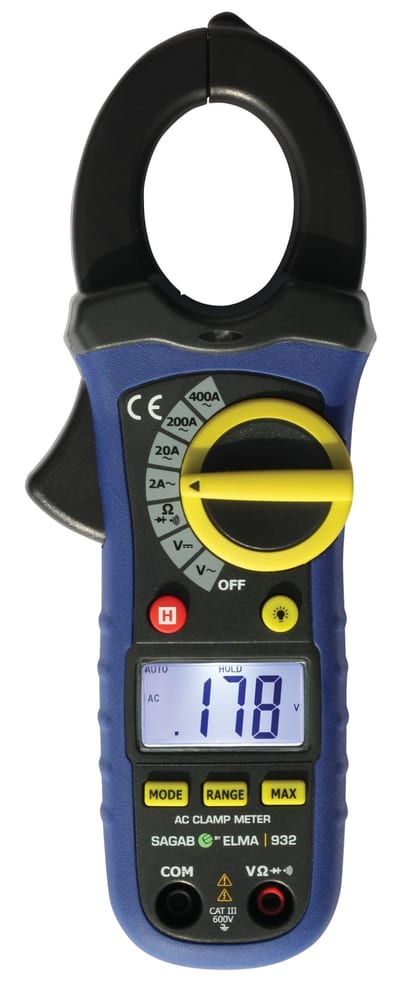

Sagab 932 Clamp Meter
ELMA 932
Elma Instruments

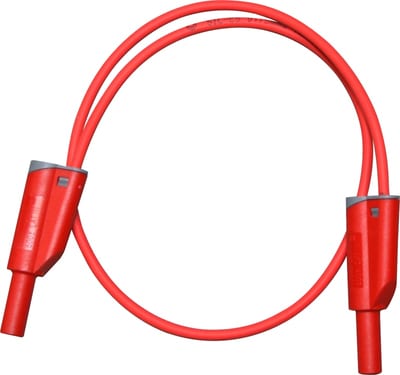

Test Lead 2711 Silicone 2 m, Red
2711-200CM-RØD
Elma Instruments

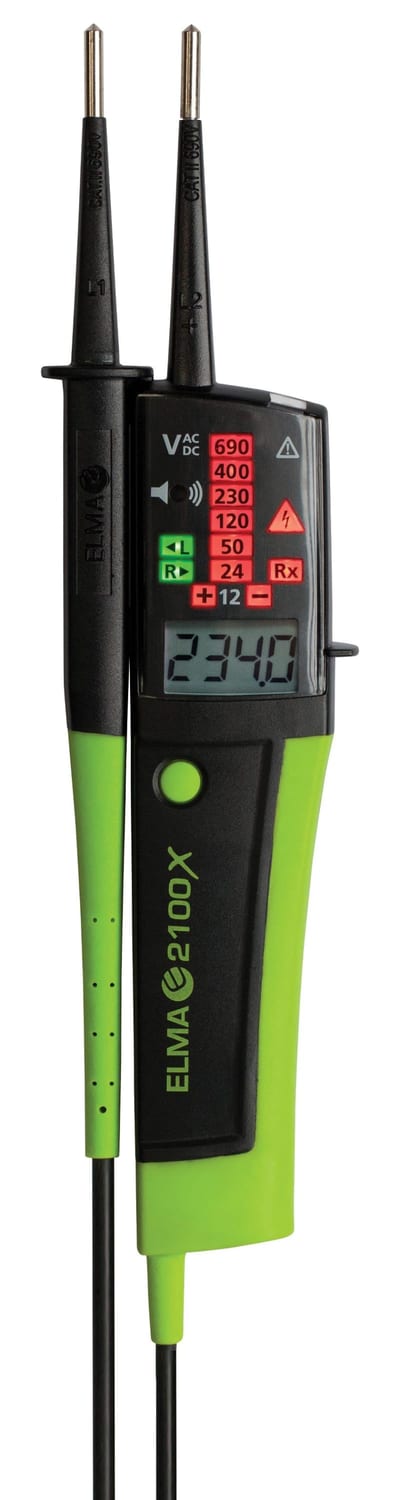

ELMA 2100X Digital SP.TEST
2100X KAT IV
Elma Instruments
Elma Instruments Ultra Standard 5W Cable Locator Kit with A-Frame
ULTRA STANDARD 5W
Elma Instruments

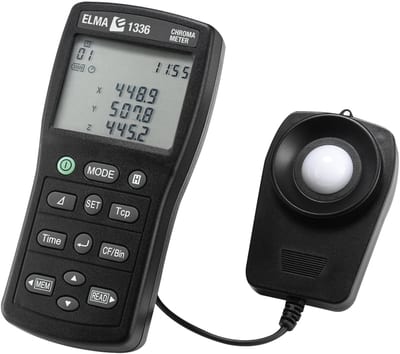

Chromameter
ELMA 1336
Elma Instruments

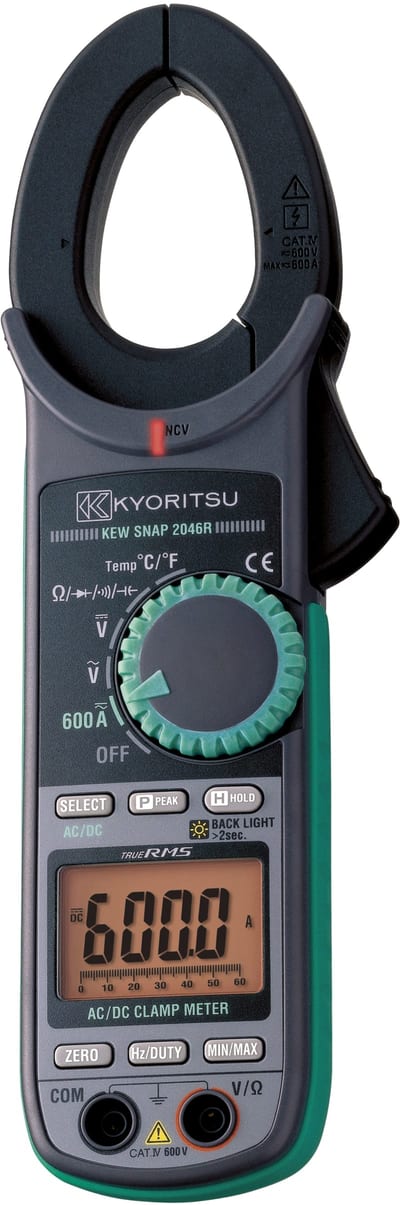

Kyoritsu 2046R True RMS AC/DC Clamp Meter CAT IV
