IP65 true RMS
Pricing
Request a quote
We reply within 24 hours
Product Description

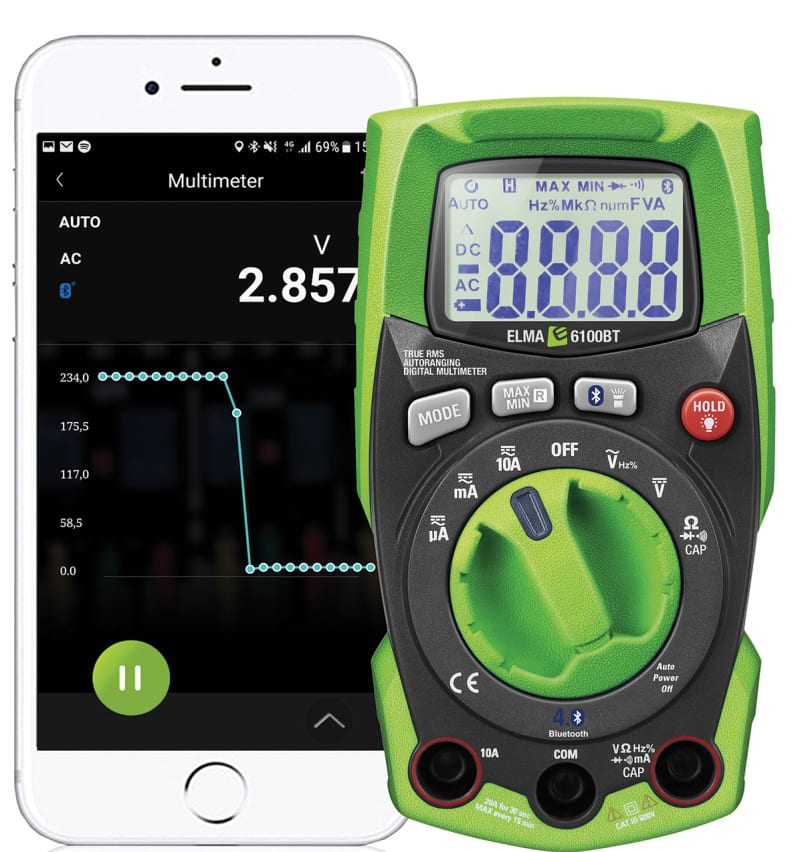

Elma Instruments Elma 6100BT Elma 6100BT IP65 true RMS Multimeter with Bluetooth.
Technical Specifications
- Manufacturer part number (MPN)
- Elma 6100BT
- EAN / GTIN
- 5706445840472
- Sales unit
- pcs
- IP rating
- IP65
- Current supply
- Battery
- Measured value memory
- No
- Indication
- Digital
- Measuring range selection
- Automatic
- True RMS measurement
- Yes
- Continuity test
- Yes
- Interface
- Yes
- Capacitance measurement
- Yes
- Frequency measurement
- Yes
- With decibel measurement (dB)
- No
- Measurement principle
- True root mean square
- Data hold
- Yes
- IR interface
- No
- Analogue bar graph display
- No
- Bluetooth interface
- Yes
- Resistance test/diode test
- Yes
- Inductance measurement
- No
- With conductivity measurement
- No
- Max. voltage measuring range AC
- 600 V
- Max. voltage measuring range DC
- 600 V
- Max. current measuring range, AC
- 10 A
- Max. current measuring range, DC
- 10 A
- Max. resistance measuring range
- 60 MOhm
- Max. value storage
- Yes
- Multiple display
- No
- Measuring circuit category
- CAT III
- Min. value storage
- Yes
- Relative value measurement
- No
- Peak value memory
- Yes
- Duty cycle measurements
- No
- Temperature measurement
- No
- Max. capacitance measuring range
- 6000 µF
- Lowest resolution, capacitance
- 1 µF
- Max. frequency measuring range
- 10000 kHz
- Analogue bar graph display analogue/logarithmical
- No
- Temperature measurement RTD
- No
- Temperature measurement TC
- No
- Cable length measurement
- No
- Cable symmetry testing for two wire connections a-b-E
- No
- Power and energy measurement
- No
- Harmonics analysis/power quality
- No
- Rotational speed measuring
- No
- Automatic circuit breaker
- No
- Max. voltage measuring circuit category
- 600 V
- With display backlight
- Yes
- Max. current measuring range with clip factor
- 3000 A
- Country of origin
- China
Standards & Compliance
- HS Code
- 9031.80
Cross References
- EAN 5706445840472
- SAP 1200095898
- Code 81955792
Product Documentation
