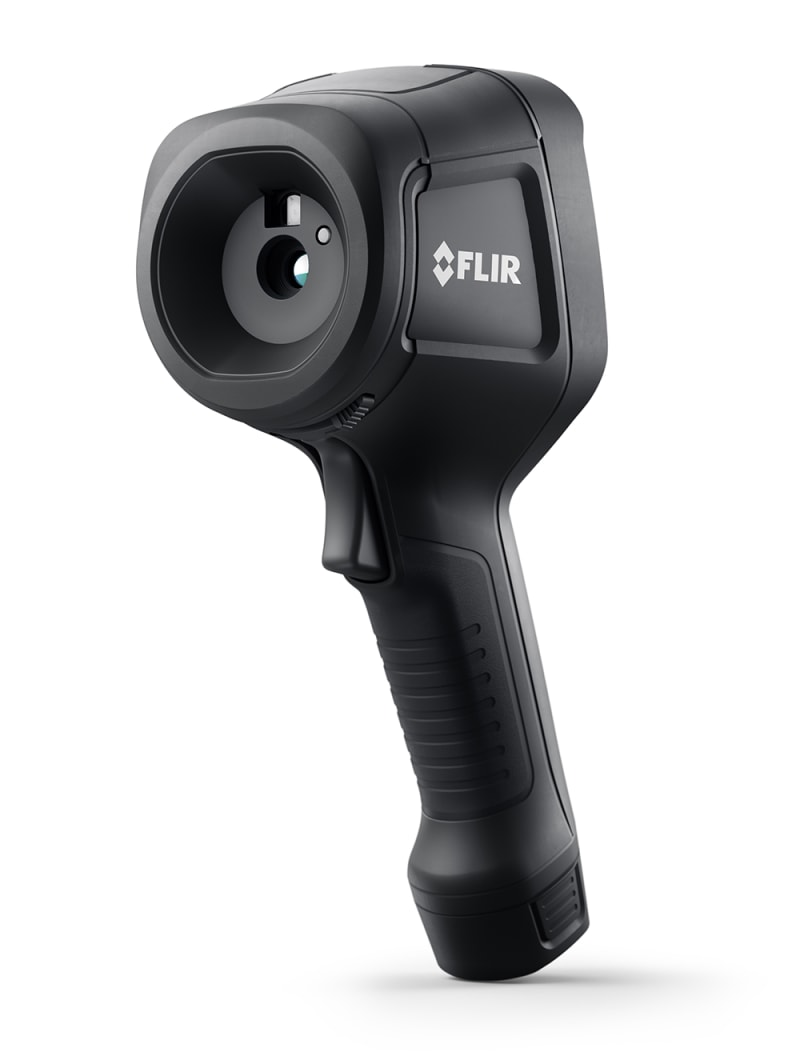

Elma Instruments FLIR E8 Pro Thermal Imaging Camera
Pricing
Request a quote
We reply within 24 hours
Product Description
Elma Instruments 4743254006478 FLIR E8 Pro thermography camera with 320 x 240 pixel sensor and integrated 640 pixel visual camera. Includes MSX image enhancement, Wi-Fi connectivity, a 3.5 inch touchscreen and -20 to 550 °C measurement range. Battery-powered handheld thermal imager for electrical inspection and building diagnostics.
Technical Specifications
- Manufacturer part number (MPN)
- 4743254006478
- EAN / GTIN
- 4743254006478
- Sales unit
- pcs
- Sensor resolution (horizontal)
- 320 px
- Display resolution (horizontal)
- 640 px
- Display diagonal
- 3.5 inch
- With touch screen
- Yes
- Thermal image
- Yes
- Visual image
- Yes
- Thermal-/visual image (in one image)
- Yes
- Video recording
- No
- Frames per second (fps)
- 1
- Thermal sensitivity at 30 °C
- 0.04 °C
- Temperature measuring range
- -20–550 °C
- Relative measurement accuracy
- 2 %
- Wave band
- 7.5–13 µm
- Field of view (FOV) horizontal
- 33 °
- Field of view (FOV) vertical
- 25 °
- Instantaneous field of view (IFOV)
- 1.8 m row
- Auto focus
- Yes
- Auto orientation
- Yes
- Focus stacking
- No
- Image averaging
- No
- Digital zoom
- 1
- Increase image size
- No
- With memory function
- Yes
- Internal memory
- Yes
- SD-card slot
- No
- MiniSD-card slot
- No
- MicroSD-card slot
- No
- CompactFlash I card slot
- No
- CompactFlash II card slot
- No
- USB connection
- Yes
- Bluetooth interface
- No
- Wi-Fi-compatible
- Yes
- Analogue video out
- No
- HDMI-connection
- No
- Ethernet
- No
- Gigabit Ethernet
- No
- With communication interface RS-232
- No
- With communication interface RS-485
- No
- FireWire (IEEE1394) connection
- No
- Detector cooled
- No
- Ambient temperature
- -15–50 °C
- With laser
- No
- With built-in torch
- No
- With stand holder
- No
- Suitable for exchangeable lenses
- No
- With digital alarm
- No
- With humidity sensor
- No
- With laser distance measurement
- No
- Battery powered
- Yes
- External power supply required
- No
- Input voltage DC
- 5 V
- Power consumption
- 0.1 W
- Max. battery duration
- 4 h
- Degree of protection (IP)
- IP54
- Weight
- 0.59 kg
- Country of origin
- Belgium
Standards & Compliance
- HS Code
- 9026.90
Cross References
- EAN 4743254006478
- SAP 1200738232
- Code 83878725
Product Documentation
