CA MTX 3297EX ATEX multimeter
Pricing
Request a quote
We reply within 24 hours
Product Description

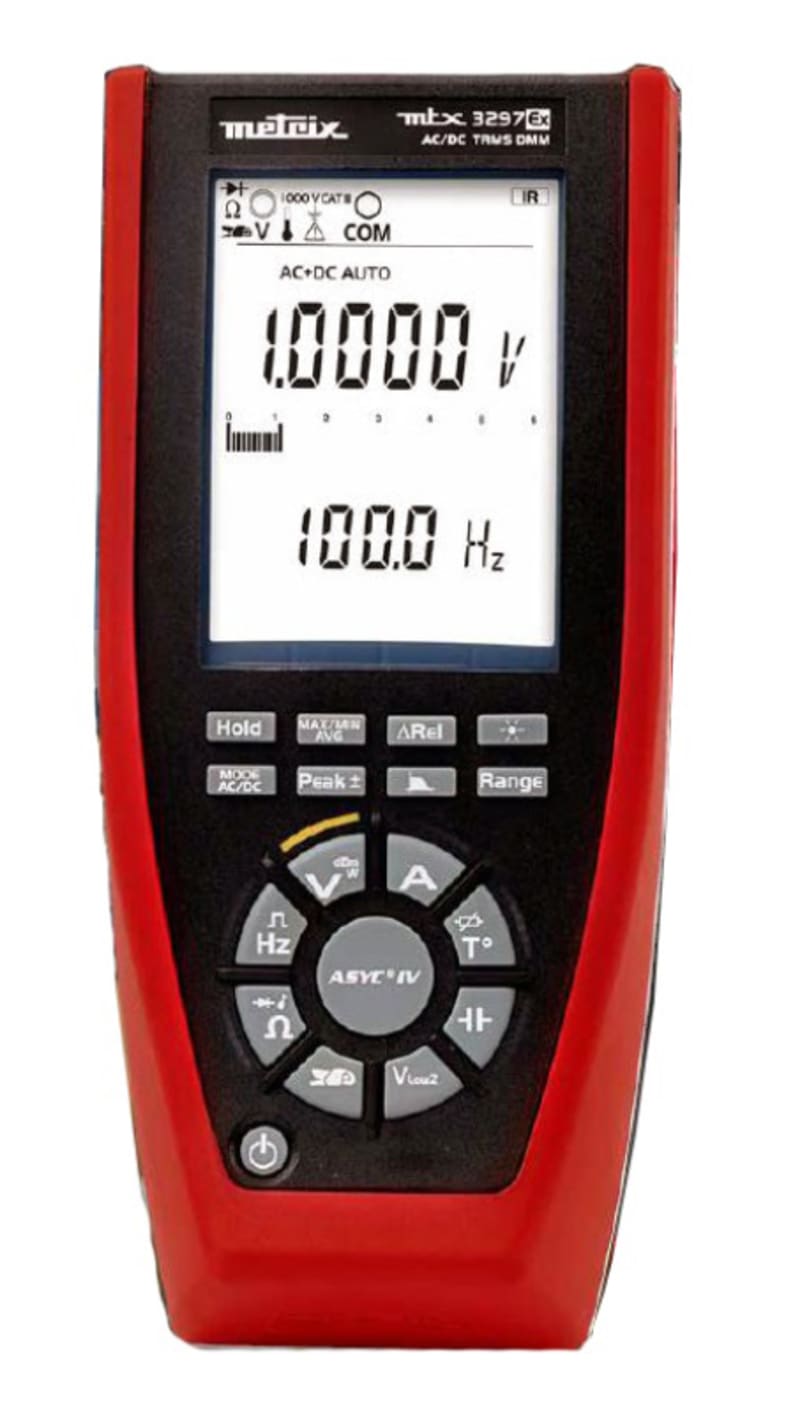

Elma Instruments 3760171419113 MTX 3297EX TRMS intrinsically safe digital multimeter approved for permanent use in Ex zones.
Technical Specifications
- Manufacturer part number (MPN)
- 3760171419113
- EAN / GTIN
- 3760171419113
- Sales unit
- pcs
- Current supply
- Battery
- Measured value memory
- No
- Indication
- Graphic
- Measuring range selection
- Manual/automatic
- True RMS measurement
- Yes
- Continuity test
- Yes
- Isolation resistance measuring range
- 0–100 MOhm
- Interface
- No
- Capacitance measurement
- Yes
- Frequency measurement
- Yes
- With decibel measurement (dB)
- No
- Measurement principle
- True root mean square
- Data hold
- Yes
- IR interface
- No
- Explosion-tested version
- Yes
- Bluetooth interface
- No
- Resistance test/diode test
- Yes
- Inductance measurement
- No
- Lowest resolution, DC voltage
- 0.1 mV
- Lowest resolution, AC voltage
- 0.1 mV
- Lowest resolution, resistance
- 0.01 Ohm
- With conductivity measurement
- No
- Max. voltage measuring range AC
- 1000 V
- Max. voltage measuring range DC
- 1000 V
- Max. current measuring range, AC
- 10 A
- Max. current measuring range, DC
- 10 A
- Max. resistance measuring range
- 60 MOhm
- Max. value storage
- Yes
- Multiple display
- Yes
- Measuring circuit category
- CAT IV
- Min. value storage
- Yes
- Nominal test voltage 100 V
- No
- Nominal test voltage 1000 V
- No
- Nominal test voltage 250 V
- No
- Nominal test voltage 500 V
- No
- Relative value measurement
- Yes
- Peak value memory
- No
- Duty cycle measurements
- No
- Temperature measurement
- Yes
- Max. temperature measuring range
- 800 °C
- Max. capacitance measuring range
- 60000 µF
- Lowest resolution, capacitance
- 0.001 µF
- Max. frequency measuring range
- 200 kHz
- Lowest resolution, frequency
- 0.1 Hz
- Temperature measurement RTD
- Yes
- Temperature measurement TC
- Yes
- Nominal test voltage 10 V
- No
- Nominal test voltage 50 V
- No
- Cable length measurement
- No
- Cable symmetry testing for two wire connections a-b-E
- No
- Power and energy measurement
- No
- Harmonics analysis/power quality
- No
- Rotational speed measuring
- No
- Automatic circuit breaker
- No
- Max. voltage measuring circuit category
- 600 V
- With display backlight
- Yes
- Lowest resolution, AC/DC current
- 0.01 µA
- Country of origin
- France
Standards & Compliance
- HS Code
- 9030.39
Cross References
- EAN 3760171419113
- SAP 1200779403
- Code 83939928
Product Documentation
