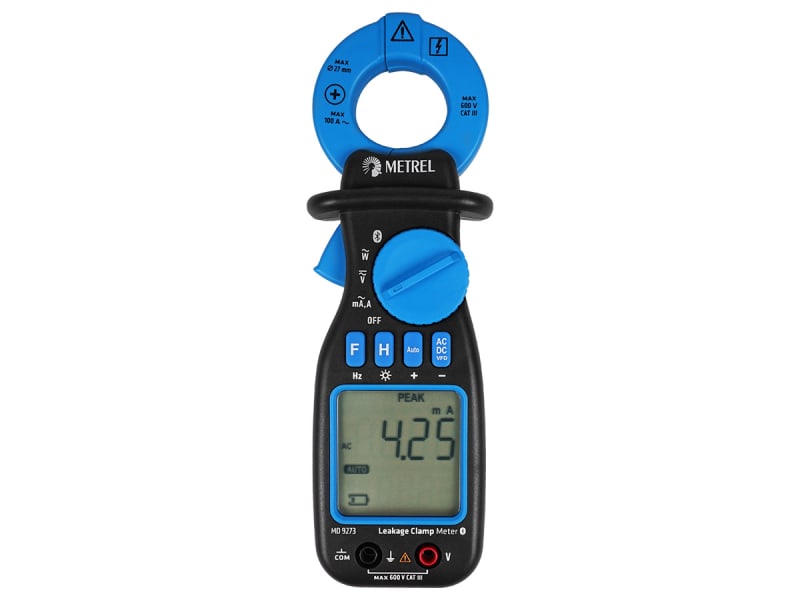

Metrel MD9273 True RMS Leakage and Power Clamp Meter with Bluetooth
Pricing
Request a quote
We reply within 24 hours
Product Description
The Elma Instruments 6398917126 is a Metrel MD9273 true RMS AC clamp meter combining leakage current and power measurement with Bluetooth connectivity. It offers a 28 mm jaw, AC current up to 100 A, harmonic analysis and CAT IV / 600 V measuring circuit rating with a backlit display. Typical applications include installation diagnostics, leakage tracing and energy audits in industrial and commercial buildings.
Technical Specifications
- Manufacturer part number (MPN)
- 6398917126
- EAN / GTIN
- 3831063432401
- Sales unit
- pcs
- Type of current
- AC
- Measured value memory
- No
- Indication
- Analogue/digital
- Measuring range selection
- Manual/automatic
- Current measuring range, AC
- 40–100 A
- Resistance measuring range
- No
- Jaw opening
- 28 mm
- True RMS measurement
- Yes
- Continuity test
- No
- Interface
- Yes
- Capacitance measurement
- No
- Frequency measurement
- No
- Power measuring
- Yes
- Leakage current measuring
- Yes
- Measurement in cables with for- and back conductor
- No
- Version as adaptor to connect to multi meter
- No
- Harmonics measurement
- Yes
- Voltage measurement, AC
- Yes
- Voltage measurement, DC
- Yes
- Analogue bar graph display
- No
- Multiple display
- Yes
- Measuring circuit category
- CAT IV
- Temperature measurement
- No
- Max. voltage measuring circuit category
- 600 V
- With display backlight
- Yes
- Country of origin
- Slovenia
Standards & Compliance
- HS Code
- 9030.39
Cross References
- EAN 3831063432401
- SAP 1200788233
- Code 83957405
