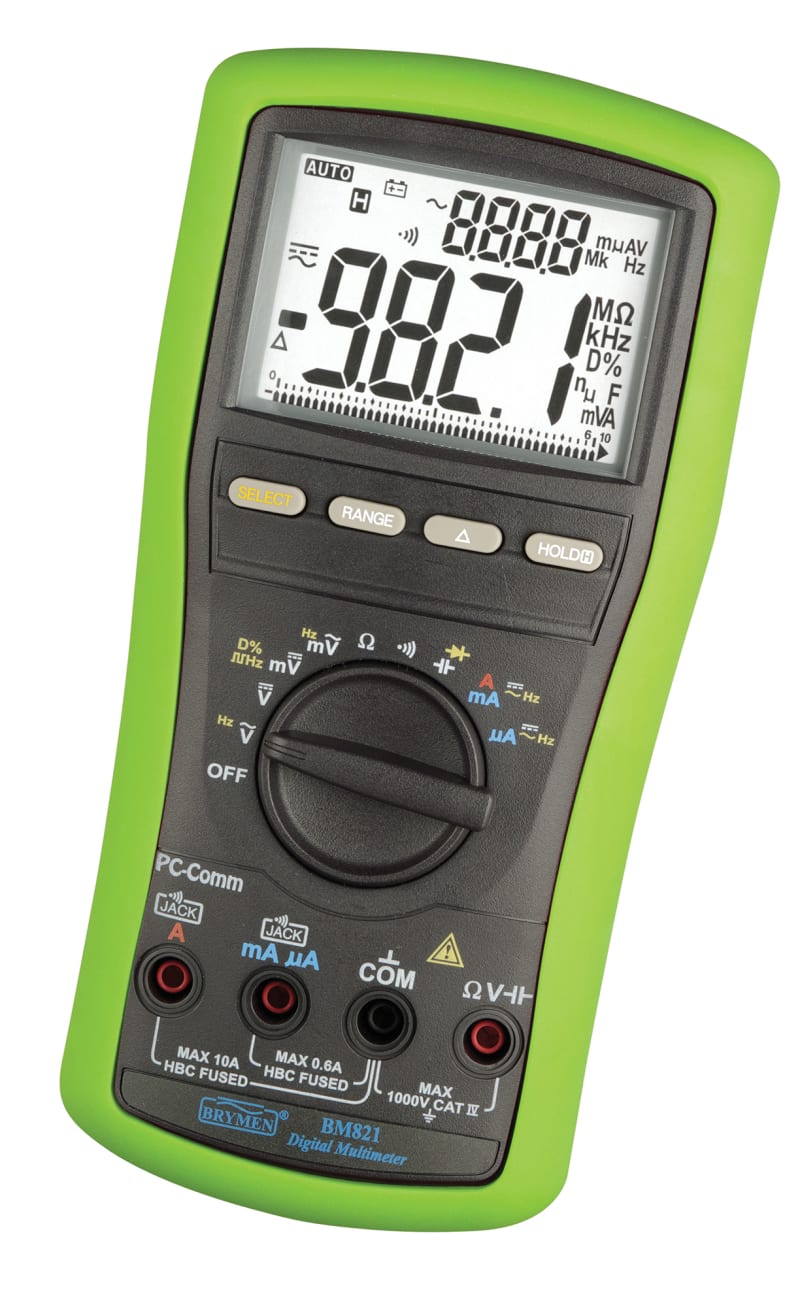

Elma BM 821 Multimeter
Part numberBM 821EAN / GTIN5706445410316HS code9030.39
Sensors & Instrumentation
Meters & Analysers
MOQ:1
Pricing
Request a quote
We reply within 24 hours
Product Description
Elma Instruments BM 821 Elma BM 821 multimeter KAT IV 1000V with PC-communication.
Technical Specifications
- Manufacturer part number (MPN)
- BM 821
- EAN / GTIN
- 5706445410316
- Sales unit
- pcs
- Package quantity
- 20 pcs
- Current supply
- Battery
- Measured value memory
- No
- Indication
- Digital
- Measuring range selection
- Manual/automatic
- True RMS measurement
- No
- Continuity test
- Yes
- Interface
- Yes
- Capacitance measurement
- Yes
- Frequency measurement
- Yes
- With decibel measurement (dB)
- No
- Measurement principle
- Averaging
- Data hold
- Yes
- IR interface
- Yes
- Relative measurement accuracy
- 0.08 %
- Explosion-tested version
- No
- Analogue bar graph display
- Yes
- Bluetooth interface
- No
- Resistance test/diode test
- Yes
- Inductance measurement
- No
- Lowest resolution, DC voltage
- 0.01 mV
- Lowest resolution, AC voltage
- 0.01 mV
- With conductivity measurement
- No
- Max. voltage measuring range AC
- 1000 V
- Max. voltage measuring range DC
- 1000 V
- Max. current measuring range, AC
- 10 A
- Max. current measuring range, DC
- 10 A
- Max. resistance measuring range
- 60 MOhm
- Max. value storage
- Yes
- Multiple display
- Yes
- Measuring circuit category
- CAT IV
- Min. value storage
- Yes
- Nominal test voltage 100 V
- No
- Nominal test voltage 1000 V
- No
- Nominal test voltage 250 V
- No
- Nominal test voltage 500 V
- No
- Relative value measurement
- No
- Peak value memory
- No
- Duty cycle measurements
- No
- Temperature measurement
- No
- Calibration according to ISO/IEC 17025
- No
- Max. capacitance measuring range
- 27000 µF
- Max. frequency measuring range
- 100 kHz
- Analogue bar graph display analogue/logarithmical
- No
- Temperature measurement RTD
- No
- Temperature measurement TC
- No
- Nominal test voltage 10 V
- No
- Nominal test voltage 50 V
- No
- Cable length measurement
- No
- Cable symmetry testing for two wire connections a-b-E
- No
- Power and energy measurement
- No
- Harmonics analysis/power quality
- No
- Rotational speed measuring
- No
- Automatic circuit breaker
- No
- Max. voltage measuring circuit category
- 1000 V
- With display backlight
- Yes
- Scaling bar graph linear
- Yes
- Scaling bar graph logarithmic
- No
- High voltage test for motor windings
- No
- Max. voltage measuring range AC/DC
- 1000 V
- Lowest resolution, AC/DC voltage
- 0.01 mV
- Max. current measuring range, AC/DC
- 20 A
- Lowest resolution, AC/DC current
- 0.1 µA
- Country of origin
- Taiwan
Standards & Compliance
- HS Code
- 9030.39
Cross References
- EAN 5706445410316
- SAP 1000469021
- Code 8915258
Product Documentation
Document preview: Elma BM 821 Multimeter — Specification sheet
