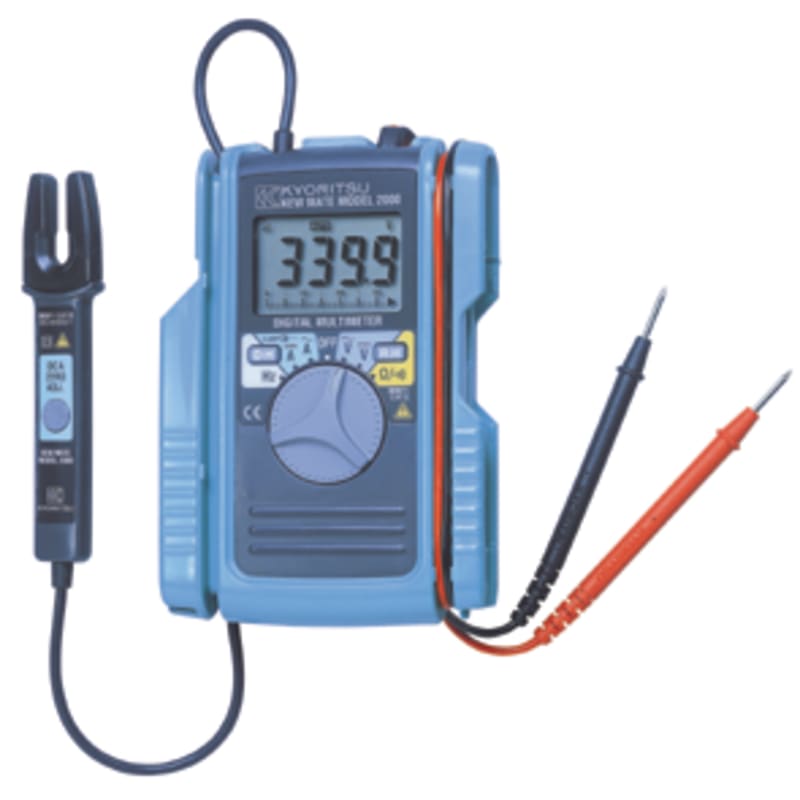

Multimeter, KEW-MATE 2000
Pricing
Request a quote
We reply within 24 hours
Product Description
Elma Instruments 42.2010 Multimeter with open current clamp - Bag sold separately and has El.nr: 8023328.
Technical Specifications
- Manufacturer part number (MPN)
- 42.2010
- EAN / GTIN
- 5706445250134
- Sales unit
- pcs
- Package quantity
- 10 pcs
- Current supply
- Battery
- Measured value memory
- No
- Indication
- Digital
- Measuring range selection
- Automatic
- True RMS measurement
- No
- Continuity test
- Yes
- Interface
- No
- Capacitance measurement
- No
- Frequency measurement
- No
- With decibel measurement (dB)
- No
- Data hold
- No
- IR interface
- No
- Explosion-tested version
- No
- Analogue bar graph display
- Yes
- Bluetooth interface
- No
- Resistance test/diode test
- Yes
- Inductance measurement
- No
- Lowest resolution, DC voltage
- 100 mV
- Lowest resolution, AC voltage
- 100 mV
- Lowest resolution, resistance
- 0.1 Ohm
- With conductivity measurement
- No
- Max. voltage measuring range AC
- 600 V
- Max. voltage measuring range DC
- 600 V
- Max. current measuring range, AC
- 60 A
- Max. current measuring range, DC
- 60 A
- Max. resistance measuring range
- 34 MOhm
- Max. value storage
- No
- Multiple display
- No
- Measuring circuit category
- CAT III
- Min. value storage
- No
- Nominal test voltage 100 V
- No
- Nominal test voltage 1000 V
- No
- Nominal test voltage 250 V
- No
- Nominal test voltage 500 V
- No
- Relative value measurement
- No
- Peak value memory
- No
- Duty cycle measurements
- No
- Max. frequency measuring range
- 10 kHz
- Analogue bar graph display analogue/logarithmical
- No
- Temperature measurement RTD
- No
- Temperature measurement TC
- No
- Nominal test voltage 10 V
- No
- Nominal test voltage 50 V
- No
- Cable length measurement
- No
- Cable symmetry testing for two wire connections a-b-E
- No
- Power and energy measurement
- No
- Harmonics analysis/power quality
- No
- Rotational speed measuring
- No
- Automatic circuit breaker
- Yes
- Max. voltage measuring circuit category
- 300 V
- Max. current measuring range, AC/DC
- 60 A
- Country of origin
- Japan
Standards & Compliance
- HS Code
- 9030.89
Cross References
- EAN 5706445250134
- SAP 1000000388
- Code 814620
Product Documentation
More from Elma Instruments
Elma Instruments

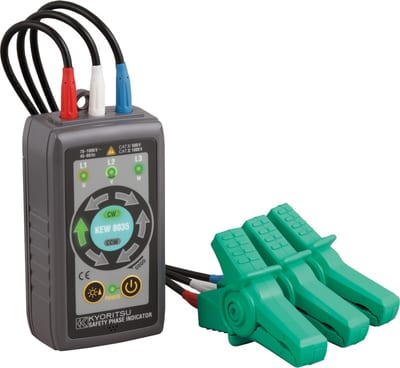

Elma Instruments Kyoritsu 8035 Contactless Phase Rotation Indicator
8035 KYORITSU
Elma Instruments
MX 1 Analogt Multimeter
8022910
Elma Instruments

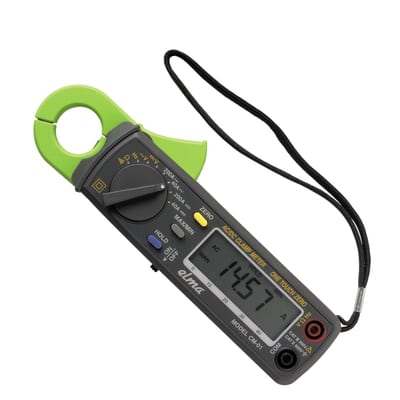

Elma CM01 Dig.Tangamp.Meter
Elma Instruments

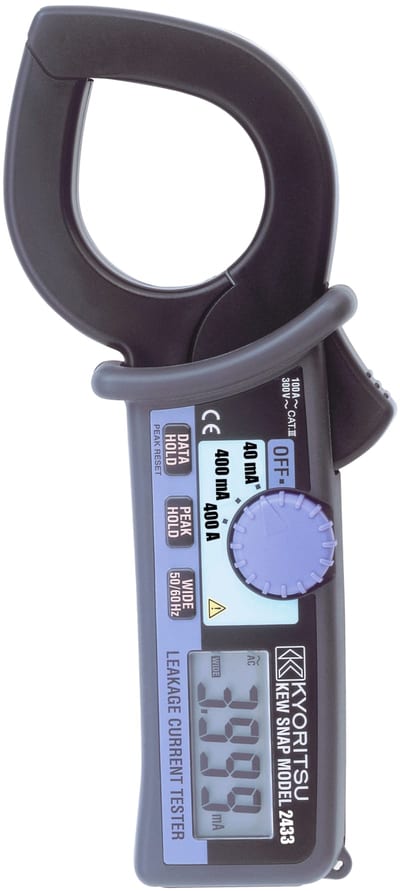

Elma Instruments 2433R Digital Leakage Current Clamp True RMS 400 A
Elma Instruments

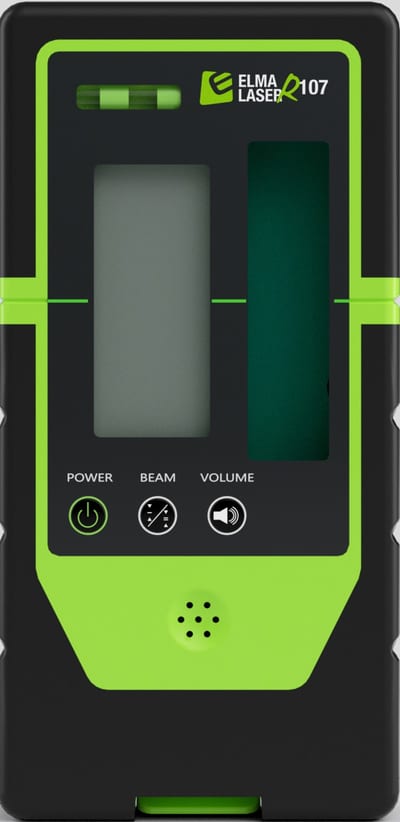

Elma Laser R107 Receiver
5706445677108
Elma Instruments

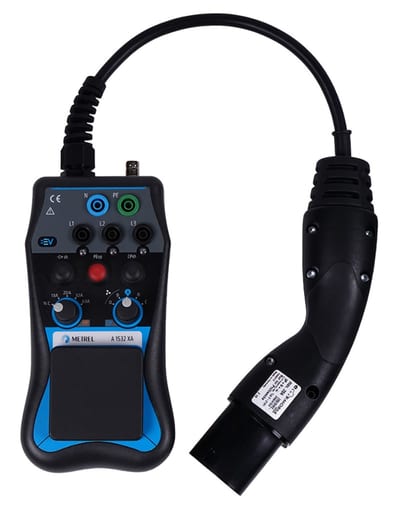

Metrel A1532XA EVSE adapter
Elma Instruments

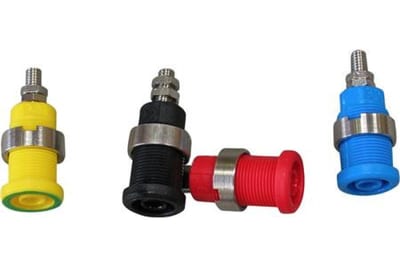

3265-R Panel-Mount 4 mm Banana Plug, Flush, Red
3265-RØD
Elma Instruments

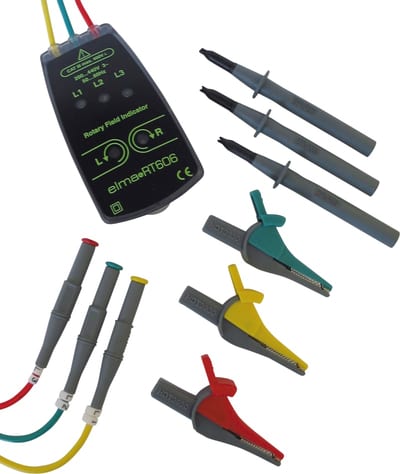

Elma Instruments 42606 RT 606 Phase Sequence Tester, CAT III
