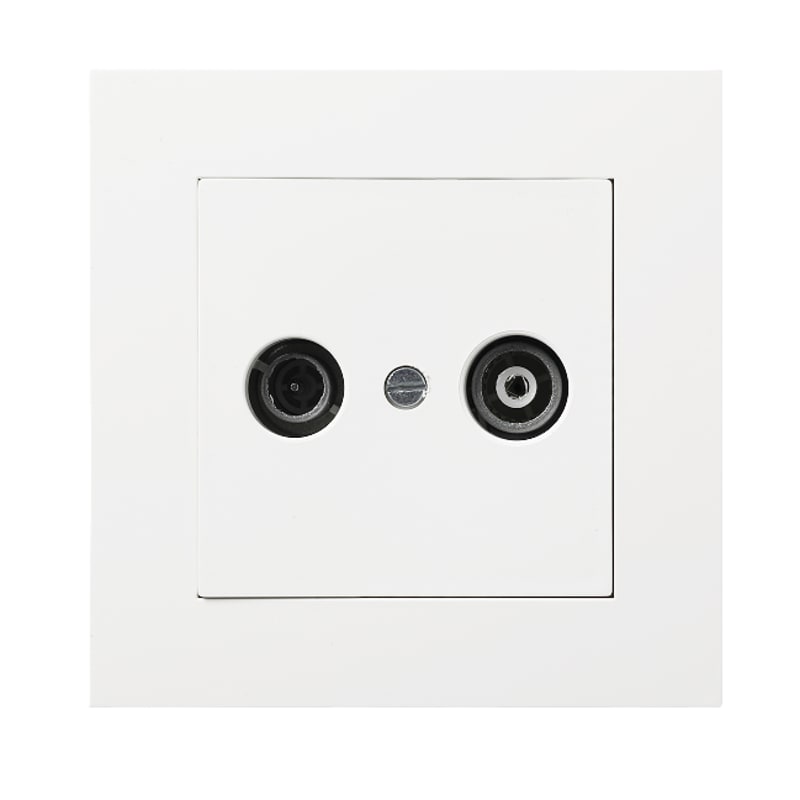

Plus Antenna Outlet 7 dB, Loop-Through, White
Pricing
Request a quote
We reply within 24 hours
Product Description
ELKO EKO04006 — Plus series flush-mounted antenna outlet for radio and TV, supplied complete with connector and cover plate. Loop-through socket, so it is cascaded through the run rather than terminating it; 2 outlets, 47–862 MHz, 8 dB tap loss and 8 dB through loss at 860 MHz. White, RAL 9010 similar, glossy halogen-free thermoplastic, IP20. 86 x 86 x 33 mm, fits an installation box of at least 30 mm depth, screw fixing. Not rated for cable modem or remote power feed.
Technical Specifications
- Manufacturer part number (MPN)
- EKO04006
- EAN / GTIN
- 7020160400604
- Sales unit
- pcs
- Package quantity
- 10 pcs
- Mounting method
- Flush-mounted
- Assembly arrangement
- Basic element with complete housing
- Colour
- White
- Model
- Loop-through socket
- Halogen free
- Yes
- Cover
- Complete housing
- Surface protection
- Untreated
- With cover
- Yes
- Frequency
- 47–862 MHz
- Number of outlets
- 2
- Through loss at 860 MHz
- 8 dB
- Tap loss at 860 MHz
- 8 dB
- Material quality
- Thermoplastic
- Suitable for cable modem
- No
- Suitable for remote power supply
- No
- Material
- Plastic
- Type of fastening
- Mounting with screw
- Type of socket outlet
- TV
- Tap loss at 2150 MHz
- 8 dB
- Through loss at 2150 MHz
- 8 dB
- RAL-number (similar)
- 9010
- Degree of protection (IP)
- IP20
- Surface finishing
- Glossy
- Device width
- 86 mm
- Device height
- 86 mm
- Device depth
- 33 mm
- Number of modules (module system)
- 1
- DAB+
- No
- Min. depth of built-in installation box
- 30 mm
- Anti-bacterial treatment
- No
- Country of origin
- Germany
Standards & Compliance
- HS Code
- 8517.70
Cross References
- EAN 7020160400604
- SAP 1000041679
- Code 8755257
Product Documentation
More from ELKO
ELKO

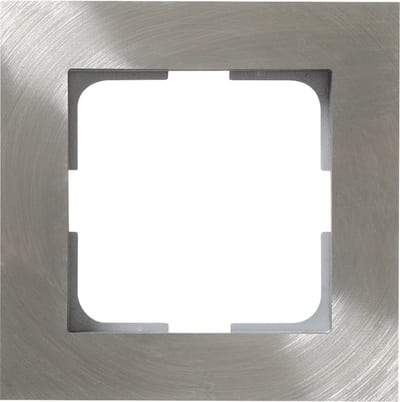

ELKO Plus EKO04418 Combination Plate 1H Circular Steel
ELKO
Wally G2 Wall Luminaire, White, 3000 K
7506474
ELKO

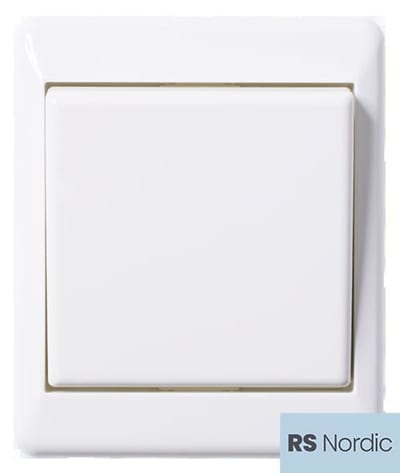

RS 6 switch Push-in Surface RH
EKO07552
ELKO

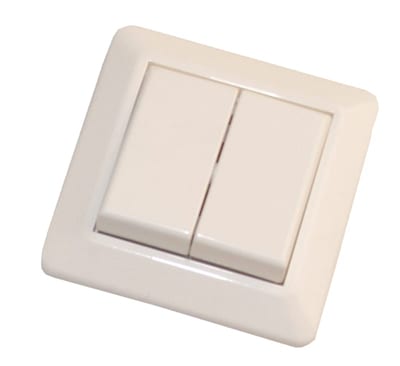

Series RECESSED H16/5 in
EKO05121
ELKO

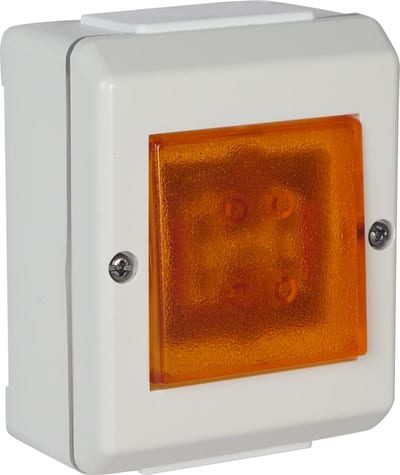

S16/1 VP IMP REL LY (EKO04311)
