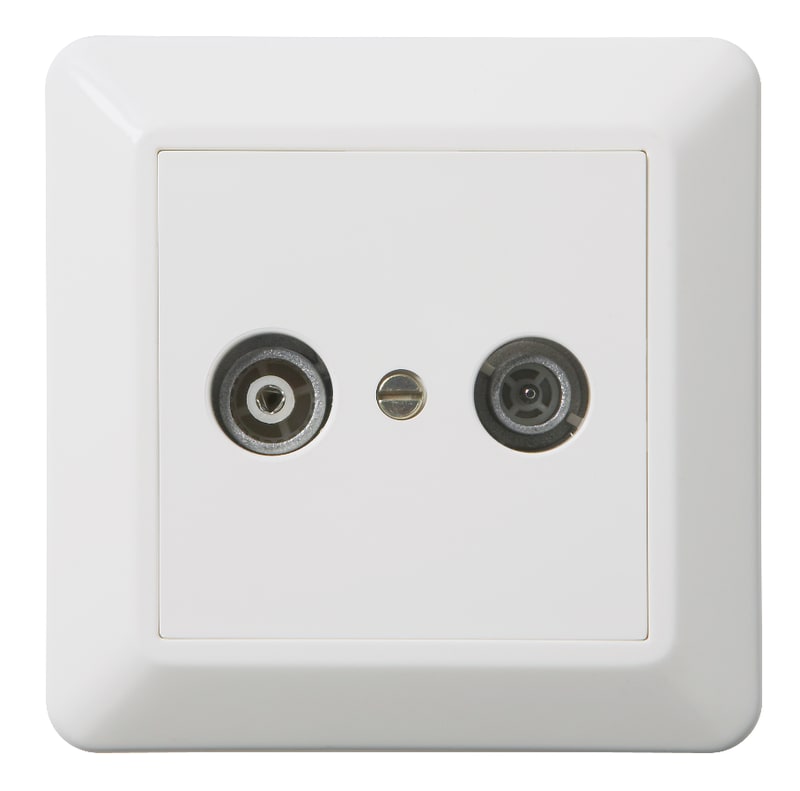

Antenna Outlet 14 dB, Loop-Through, Series Installation, White
Pricing
Request a quote
We reply within 24 hours
Product Description
ELKO EKO05270 — flush-mounted antenna outlet rated 14 dB for a series installation. Loop-through socket, so it is cascaded through the run rather than terminating it; 2 outlets, 47–862 MHz, 14 dB tap loss at 860 MHz. White, RAL 9010 similar.
Technical Specifications
- Manufacturer part number (MPN)
- EKO05270
- EAN / GTIN
- 7020160527004
- Sales unit
- pcs
- Package quantity
- 10 pcs
- Lifecycle status
- Phased out
- Mounting method
- Flush-mounted
- Colour
- White
- Model
- Loop-through socket
- Halogen free
- Yes
- Cover
- Complete housing
- Surface protection
- Untreated
- With cover
- Yes
- Frequency
- 47–862 MHz
- Number of outlets
- 2
- Through loss at 860 MHz
- 14 dB
- Tap loss at 860 MHz
- 14 dB
- Material quality
- Thermoplastic
- Suitable for cable modem
- No
- Suitable for remote power supply
- No
- Material
- Plastic
- Type of fastening
- Mounting with screw
- Type of socket outlet
- TV
- Tap loss at 2150 MHz
- 14 dB
- Through loss at 2150 MHz
- 14 dB
- RAL-number (similar)
- 9010
- Degree of protection (IP)
- IP20
- Surface finishing
- Glossy
- Device width
- 84 mm
- Device height
- 84 mm
- Device depth
- 24.5 mm
- Number of modules (module system)
- 1
- DAB+
- No
- Min. depth of built-in installation box
- 30 mm
- Anti-bacterial treatment
- No
- Country of origin
- Germany
Standards & Compliance
- HS Code
- 8517.71
Cross References
- EAN 7020160527004
- SAP 1000087543
- Code 8867398
Product Documentation
More from ELKO
ELKO

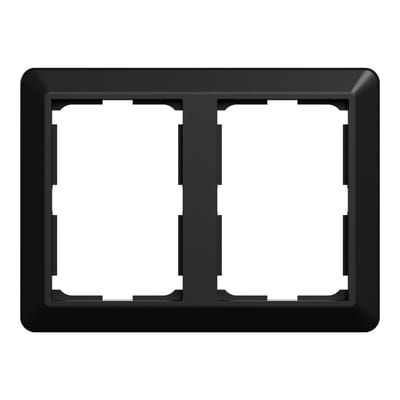

2-Hole Double Socket Frame RS Black
EKO40018
ELKO
ELKO One Rocker Piece 1-Pole with Indicator Window Pure White
EKO50058
ELKO
MOD.UT.2X8 CAT. 6 UTP 1XF/IEC One Black
EKO50122
ELKO

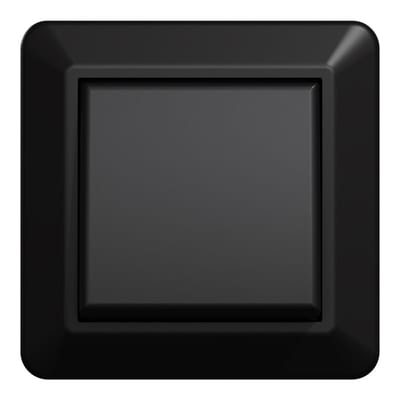

Switch 6 Two-Way Flush RS Black
EKO40004
ELKO
ELKO One Rocker Piece 1-Pole with Indicator Window Black
EKO50059
ELKO

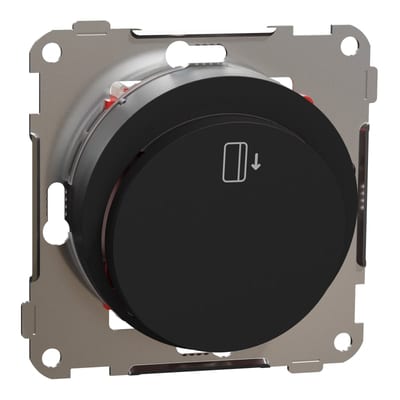

ELKO One Key Card Switch 1/2/6, Black IP21
