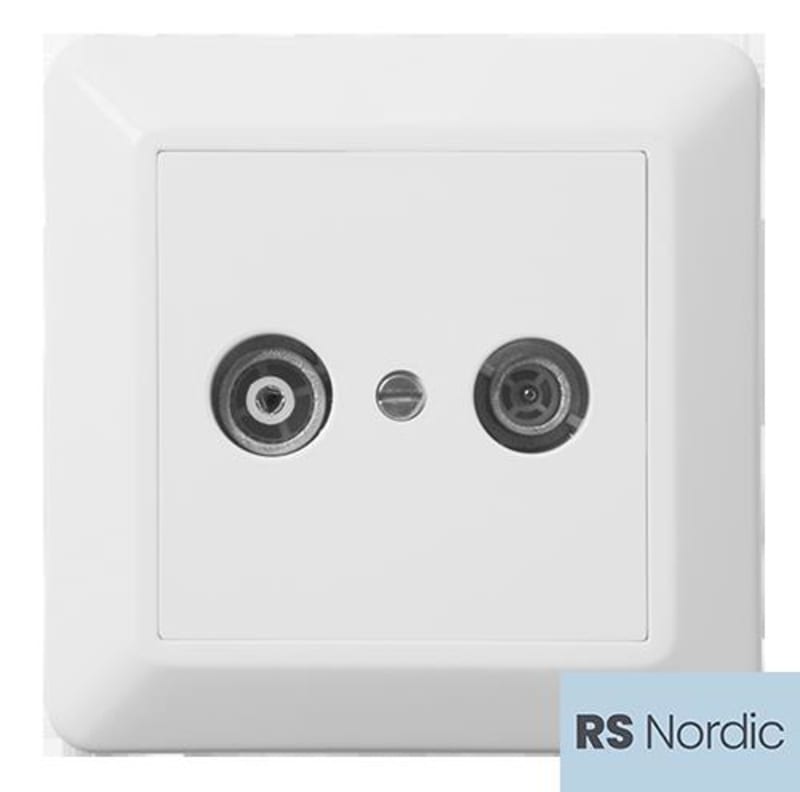

RS Nordic Antenna Outlet 1 dB, End, White PURE WHITE
Pricing
Request a quote
We reply within 24 hours
Product Description
ELKO EKO30160 — RS Nordic flush-mounted antenna outlet rated 1 dB, for a single installation where the outlet is fed directly rather than through a cascade. End socket; 2 outlets, 47–862 MHz, 1 dB tap loss at 860 MHz. White, RAL 9003 similar. The PURE WHITE suffix is ELKO’s code for this white finish.
Technical Specifications
- Manufacturer part number (MPN)
- EKO30160
- EAN / GTIN
- 7020161301603
- Sales unit
- pcs
- Package quantity
- 10 pcs
- Mounting method
- Flush-mounted
- Assembly arrangement
- Basic element with complete housing
- Colour
- White
- Model
- End socket
- Halogen free
- Yes
- Cover
- Complete housing
- Surface protection
- Untreated
- Frequency
- 47–862 MHz
- Number of outlets
- 2
- Through loss at 860 MHz
- 1 dB
- Tap loss at 860 MHz
- 1 dB
- Material quality
- Thermoplastic
- Suitable for cable modem
- No
- Suitable for remote power supply
- No
- Material
- Plastic
- Type of fastening
- Mounting with screw
- Type of socket outlet
- TV
- Tap loss at 2150 MHz
- 1 dB
- Through loss at 2150 MHz
- 1 dB
- RAL-number (similar)
- 9003
- Degree of protection (IP)
- IP21
- Surface finishing
- Glossy
- Device width
- 84 mm
- Device height
- 84 mm
- Device depth
- 24.5 mm
- Number of modules (module system)
- 1
- DAB+
- No
- Min. depth of built-in installation box
- 30 mm
- Anti-bacterial treatment
- No
- Country of origin
- Germany
Standards & Compliance
- HS Code
- 8536.69
Cross References
- EAN 7020161301603
- SAP 1200558095
- Code 82905974
Product Documentation
More from ELKO
ELKO

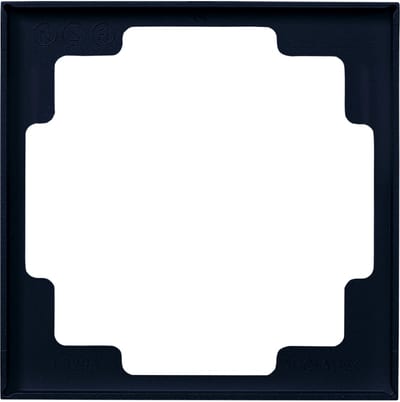

Plus frame dekor 86 1-Hole Black
EKO05951
ELKO

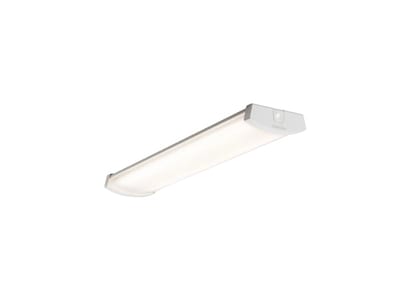

Liteline G2 IP44 600
7218583
ELKO

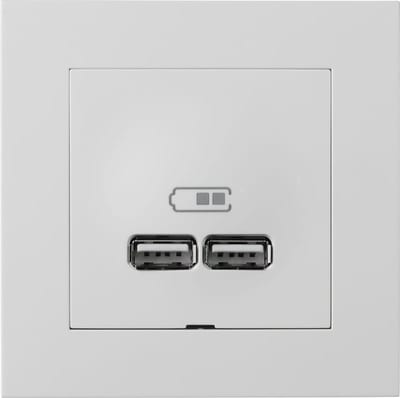

Plus USB charger 2,1A Flush POLAR WHITE
EKO05983
ELKO

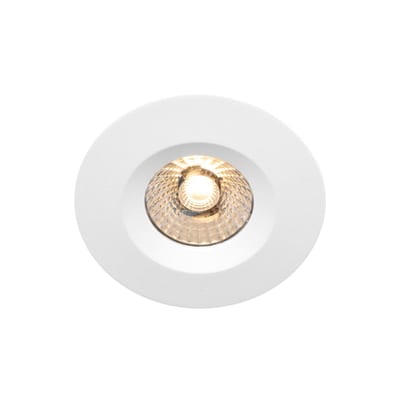

Comfort G4 Quick ISO White 36° 2700K
7475836
ELKO

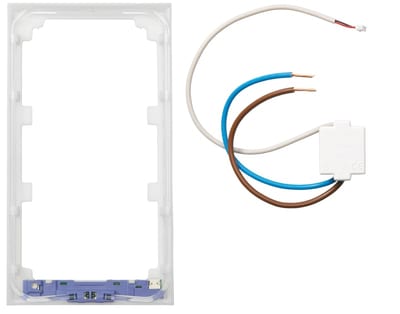

PLUS Frame with LIGHT/TRA 86 2 HOLES
EKO03823
ELKO

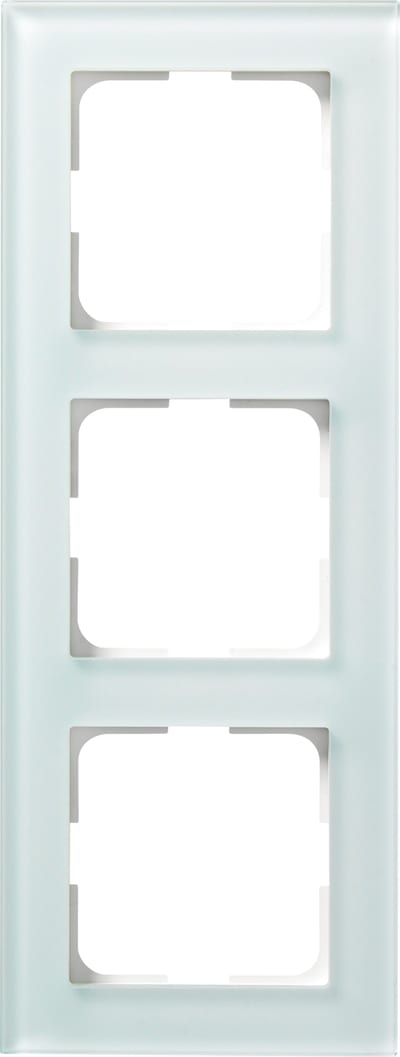

PLUS Option White Frosted 3H
EKO04425
ELKO
Plug 12/48V RS PURE WHITE
EKO07462
ELKO

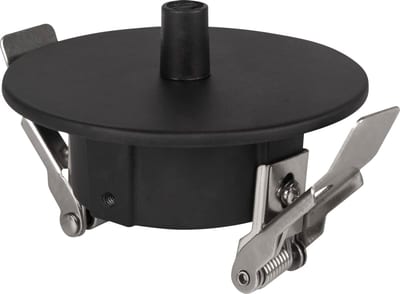

Ceiling Cup, Recessed with Mounting Spring, Black
