ELKO

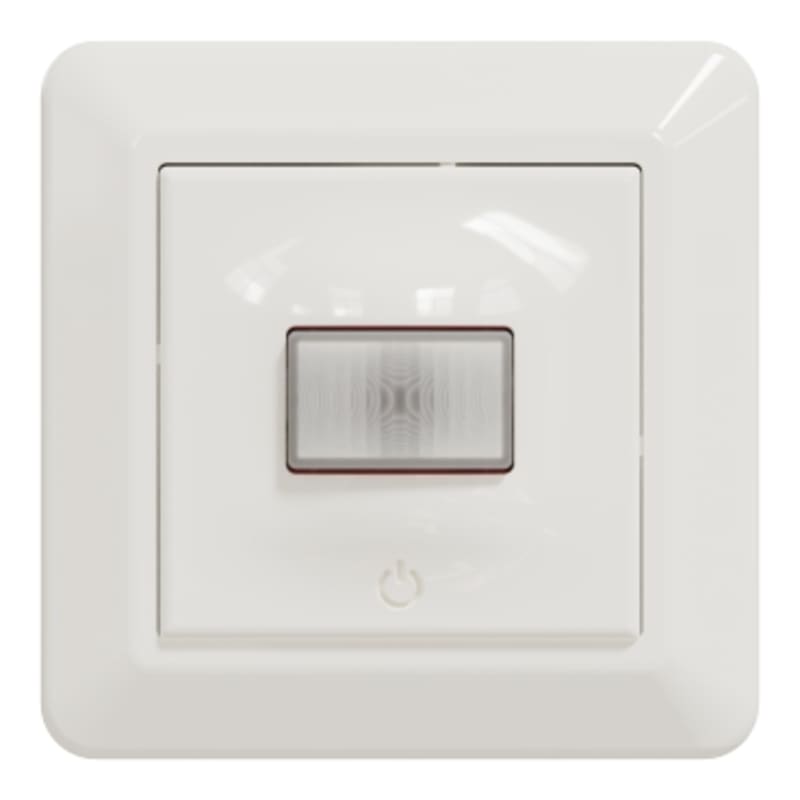

SMARTPIR Dim Multiwire RS POLAR WHITE
Part numberEKO07253EAN / GTIN7020160725301HS code8536.90
Lighting & Electrical Accessories
Motion Sensors
MOQ:1
Pricing
Request a quote
We reply within 24 hours
Product Description
ELKO - PIR with pressure dimmer - RS Polar-white - min 0W with optional neutral, 7W without - max 200W.
Technical Specifications
- Manufacturer part number (MPN)
- EKO07253
- EAN / GTIN
- 7020160725301
- HS code
- 8536.90
- Sales unit
- pcs
- Package quantity
- 5 pcs
- Nominal voltage
- 230 V
- Mounting method
- Flush-mounted
- Colour
- White
- Width
- 84 mm
- Model
- Movement sensor
- Halogen free
- Yes
- Height
- 84 mm
- Depth
- 44 mm
- Connection type
- Screwed terminal
- Surface protection
- Untreated
- Creep-under protection
- No
- Voltage type
- AC
- Switch-off delay
- 1800 s
- Built-in depth
- 27 mm
- Frequency
- 50 Hz
- With remote control
- No
- Suitable for wall mounting
- Yes
- Built-in width
- 45 mm
- Staircase light controller
- Yes
- Bridging switch
- No
- Suitable for wireless transmission
- Yes
- Material quality
- Thermoplastic
- Max. reach frontally
- 8 m
- Max. reach sideways
- 6 m
- Max. switching power
- 200 W
- Temperature
- 5–45 °C
- Max. starting current
- 10 A
- Material
- Plastic
- Response value sensitivity adjustable
- Yes
- Dim function with dimmer basic element
- Yes
- Response value luminosity
- 5–500 lx
- Suitable for C-load
- No
- Diameter reach on floor
- 16 m
- Remote operation
- Yes
- HVAC-control
- No
- Constant light control
- Yes
- Substation input
- No
- RAL-number (similar)
- 9010
- With signal unit
- No
- Teach-function for response value luminosity
- No
- Networkable
- Yes
- Forced switch off
- Yes
- Scan angle
- 160 °
- Built-in length
- 45 mm
- Impact strength
- IK02
- With connection cable
- No
- Degree of protection (IP)
- IP20
- With alarm function
- No
- Transparent
- No
- Animal zone
- No
- Surface finishing
- Glossy
- Detection angle horizontal
- 0–160 °
- Min. switch-on time
- 1 s
- Max. duty cycle
- 30 min
- Response value luminosity adjustable
- Yes
- Optimum mounting height
- 1 m
- Number of switching zones
- 1
- With DALI interface
- No
- IFTTT support available
- No
- Forced switch on
- Yes
- Min. depth of built-in installation box
- 30 mm
- Max. presence range
- 86 m²
- Compatible with Apple HomeKit
- No
- Compatible with Google Assistant
- No
- Compatible with Amazon Alexa
- No
- Background monitoring
- No
- With acoustic sensor
- No
- Sensor type
- Passive infrared
Standards & Compliance
- HS Code
- 8536.90
Cross References
- EAN 7020160725301
- SAP 1200619137
- Code 83027125
Product Documentation
Document preview: SMARTPIR Dim Multiwire RS POLAR WHITE (EKO07253) — Specification sheet
More from ELKO
ELKO
RS/PLUS Mod.outlet 2X8 Cat 6A STP straight POLAR WHITE
EKO60007
ELKO

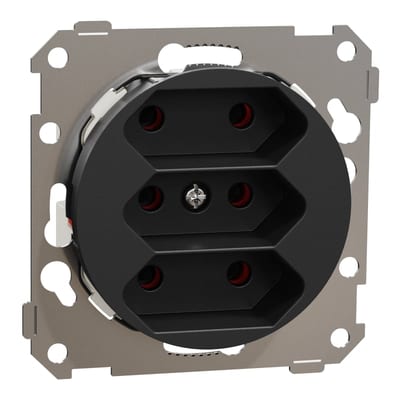

Europlug 3-WAY One Black
EKO50084
ELKO

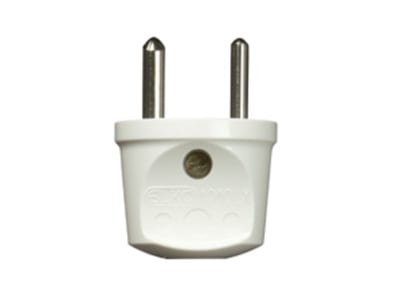

1010L Plug Polar WHITE
3886
ELKO

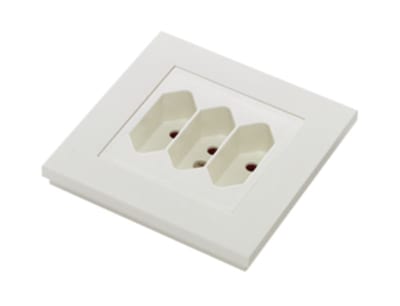

ELKO Plus Europlug Socket Outlet 3-Way Flush-Mounted Pure White
EKO03781
ELKO
Time Switch 2T10 One Black
EKO50110
ELKO

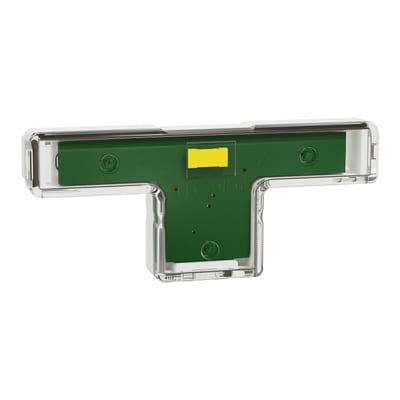

Light Unit white LED 230V
EKO50063
ELKO

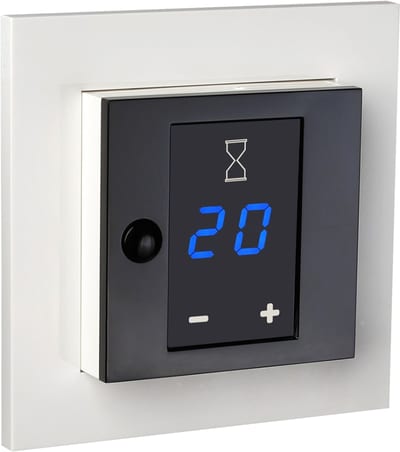

Plus Display Time Switch 16A POLAR WHITE
EKO05987
ELKO
One Centre Plate for Antenna/TV/Radio Outlet, 2 and 3 Holes, Black SO
EKO50126
Catalogue entry last verified: 2026-09-30. A manufacturer datasheet is attached to this entry — confirm application-critical values against it.
Frequently asked questions
- Where can I buy EKO07253?
- EKO07253 can be ordered from cballast.com as a ELKO catalogue item: request a quotation on this page or email sales@cballast.com, and the order ships worldwide.
- What is the manufacturer part number for this ELKO product?
- The manufacturer part number is EKO07253.
- What is the HS code for EKO07253?
- The customs tariff (HS) code for EKO07253 is 8536.90.
- Who manufactures EKO07253?
- EKO07253 is a ELKO product in the Lighting & Electrical Accessories range.
- Is a datasheet available for EKO07253?
- Yes — the EKO07253 datasheet can be viewed and downloaded on this page.
- What is the minimum order quantity for EKO07253?
- The minimum order quantity is 1.
- Is EKO07253 available?
- Yes — EKO07253 is available to order: fulfilment is from supplier stock in cBallast's European network, dispatched directly from the warehouse to the customer, with the exact lead time stated in the quotation (reply within 24 hours).
