ELKO

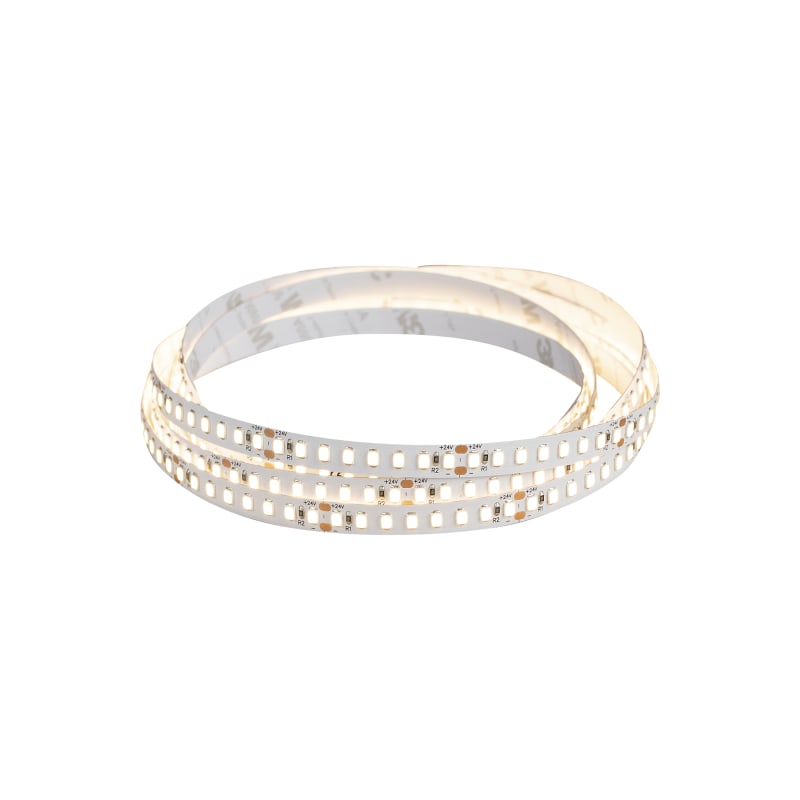

LEDstrip 24V IP20 Highlum 4000K 5M
Part number7509836EAN / GTIN7392971149608HS code9405.49
Lighting & Electrical Accessories
LED Lights
MOQ:1
Pricing
Request a quote
We reply within 24 hours
Product Description
ELKO 7509836 LEDstrip 24V IP20 Highlum 4000K 5 m, 120°, 12,8 W/m, 1865 lm/m, Ra>90. Service life L70 75 000h.
Technical Specifications
- Manufacturer part number (MPN)
- 7509836
- EAN / GTIN
- 7392971149608
- Sales unit
- pcs
- Package quantity
- 32 pcs
- Voltage
- 24 V
- IP rating
- IP20
- Luminaire efficacy
- 145.7 lm/W
- Model
- Strip
- Mounting method
- Surface mounting
- Lamp type
- LED not exchangeable
- Number of nodes per meter
- 160
- Lamp power per meter
- 12.8 W
- Luminous flux per meter
- 1865 lm
- Voltage type
- DC
- Lamp voltage
- 24 V
- Beam angle
- 120 °
- Type of control gear
- LED operating device voltage-controlled
- Suitable for dimmer
- Yes
- Rated lifetime L70/B50 at 25 °C
- 75000 h
- Degree of protection (IP)
- IP20
- Protection class according to IEC 61140
- III
- Colour of light
- White
- Colour temperature
- 4000 K
- Colour rendering index CRI
- 90-100
- Colour of light adjustable
- No
- Luminous flux adjustable
- Continuously variable
- Width
- 8 mm
- Height/depth
- 2 mm
- Length
- 5000 mm
- Lowest bending radius
- 60 mm
- Length of particular segments
- 50 mm
- With end piece
- No
- With connection set
- Yes
- With protective cover
- No
- Self-adhesive
- Yes
- Type of wiring
- Loop-through wiring included
- Connection type
- Push-in clamp
- Country of origin
- China
Standards & Compliance
- HS Code
- 9405.49
Cross References
- EAN 7392971149608
- SAP 1200711173
- Code 83804395
Product Documentation
Document preview: LEDstrip 24V IP20 Highlum 4000K 5M (7509836) — Specification sheet
More from ELKO
ELKO
Project Plug Flush RS PURE WHITE
EKO30124
ELKO
Sky MP 830/840 DIM Q-Box Mini
7019649
ELKO
PLUS Option Smoked Black 4H
EKO04430
ELKO
LED-dimmable transformer MDR DALI 24V 100W
7980935
ELKO
PLUS/MOD in TL 2X8 C6A STP POLAR WHITE
EKO05549
ELKO

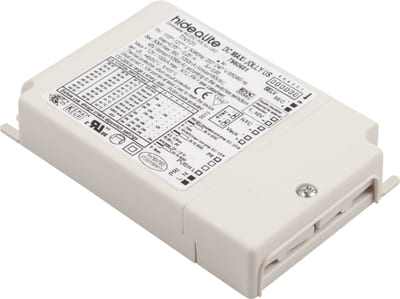

LED DIM Jolly MAXI US
7980651
ELKO
PLUS/MOD in TL 1X8 C6 UTP Black
EKO05567
ELKO

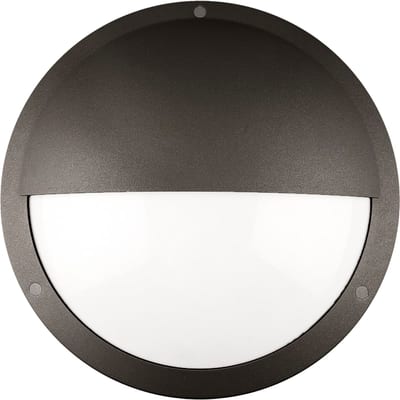

Moon Public Eye Anthracite IK10
