ELKO

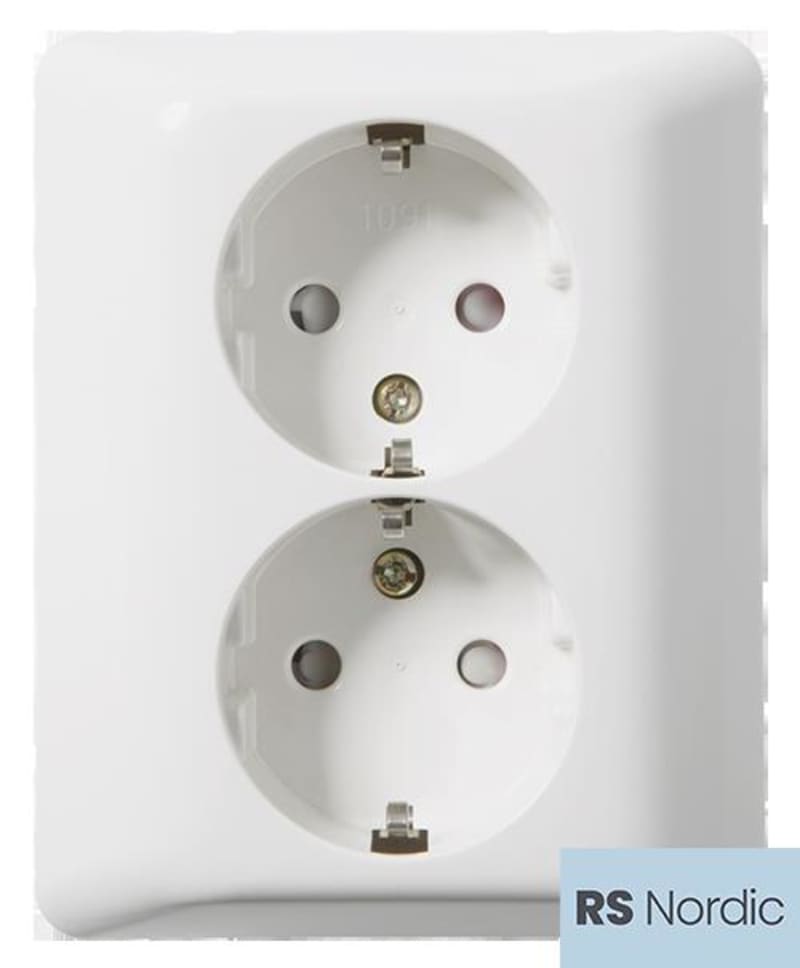

Double socket Split Flush RS PURE WHITE
Part numberEKO30123EAN / GTIN7020161301238HS code8536.90
Electrical Components
Socket Outlets
MOQ:1
Pricing
Request a quote
We reply within 24 hours
Product Description
ELKO EKO30123 RS Nordic double split socket outlet, is used e.g. where en socket outlet required styrt of switch.
Technical Specifications
- Manufacturer part number (MPN)
- EKO30123
- EAN / GTIN
- 7020161301238
- HS code
- 8536.90
- Sales unit
- pcs
- Package quantity
- 5 pcs
- Nominal current
- 16 A
- Nominal voltage
- 440 V
- Mounting method
- Flush-mounted
- Assembly arrangement
- Basic element with complete housing
- Colour
- White
- Model
- Socket outlet with protective contact CEE 7/3 (type F)
- Halogen free
- Yes
- Number of units
- 2
- Lockable
- No
- With hinged lid
- No
- Connection type
- Screwed terminal
- Surface protection
- Untreated
- With signal lamp
- No
- Number of socket outlets
- 2
- Number of phases
- 1
- With enhanced contact protection
- Yes
- Frequency
- 50–60 Hz
- With on/off switch
- No
- Label space/information surface
- No
- Eject-mechanism
- No
- Material quality
- Thermoplastic
- Rotated central insert
- No
- Overvoltage protection
- No
- Fault current protection
- No
- Special power supply
- No special power supply
- Insulated mounting
- Yes
- Material
- Plastic
- Type of fastening
- Mounting with screw
- Imprint/indication
- None
- RAL-number (similar)
- 9003
- Concurrently switching neutral conductor
- No
- Transparent
- No
- Surface finishing
- Glossy
- With miniature fuse
- No
- With loop through function
- Yes
- Suitable for degree of protection (IP)
- IP20
- Device width
- 84 mm
- Device height
- 104 mm
- Device depth
- 43 mm
- With function lighting
- No
- With orientation lighting
- No
- Number of active contacts (round)
- 4
- Min. depth of built-in installation box
- 20 mm
- With Wi-Fi signal repeater
- No
- Metallic colour
- No
- With built-in bluetooth speaker
- No
- Protective contact
- Earthing clips
- Number of loop throughs
- 2
- Socket outlets phase-separated
- No
- Anti-bacterial treatment
- No
- Country of origin
- Germany
Standards & Compliance
- HS Code
- 8536.90
Cross References
- EAN 7020161301238
- SAP 1200558068
- Code 82905906
Product Documentation
Document preview: Double socket Split Flush RS PURE WHITE (EKO30123) — Specification sheet
