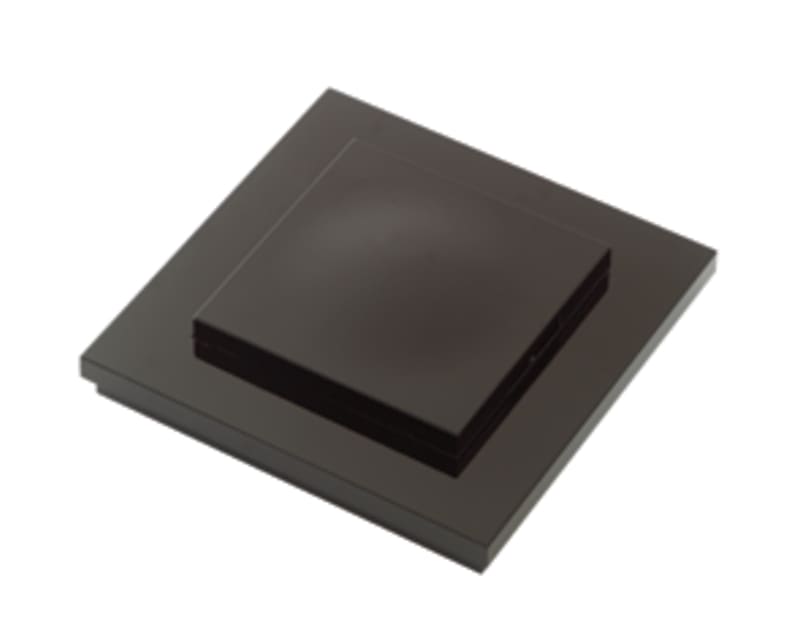

ELKO Plus Single Socket with Earth Flush-Mounted Cover Black
Pricing
Request a quote
We reply within 24 hours
Product Description
ELKO EKO03774 is a Plus single socket outlet with earth (CEE 7/3 type F) for flush-mounted installation, black with a hinged lid. Rated 16 A at 250 V AC 50-60 Hz, it offers enhanced contact protection with earthing clips and screw-terminal connections. The 86 x 86 x 42.5 mm halogen-free thermoplastic module installs on a minimum 32 mm mounting box.
Technical Specifications
- Manufacturer part number (MPN)
- EKO03774
- EAN / GTIN
- 7020160377401
- HS code
- 8536.90
- Sales unit
- pcs
- Package quantity
- 5 pcs
- Nominal current
- 16 A
- Nominal voltage
- 250 V
- Mounting method
- Flush-mounted
- Colour
- Black
- Model
- Socket outlet with protective contact CEE 7/3 (type F)
- Halogen free
- Yes
- Number of units
- 1
- Lockable
- No
- With hinged lid
- Yes
- Connection type
- Screwed terminal
- Surface protection
- Untreated
- With signal lamp
- No
- Number of phases
- 1
- With enhanced contact protection
- Yes
- Frequency
- 50–60 Hz
- With on/off switch
- No
- Label space/information surface
- No
- Eject-mechanism
- No
- Material quality
- Thermoplastic
- Rotated central insert
- No
- Overvoltage protection
- No
- Fault current protection
- No
- Special power supply
- No special power supply
- Insulated mounting
- Yes
- Material
- Plastic
- Type of fastening
- Mounting with screw
- Imprint/indication
- None
- Concurrently switching neutral conductor
- No
- Transparent
- No
- Surface finishing
- Matt
- With miniature fuse
- No
- With loop through function
- Yes
- Suitable for degree of protection (IP)
- IP20
- Device width
- 86 mm
- Device height
- 86 mm
- Device depth
- 42.5 mm
- With function lighting
- No
- With orientation lighting
- No
- Number of active contacts (round)
- 2
- Min. depth of built-in installation box
- 32 mm
- Metallic colour
- No
- Protective contact
- Earthing clips
- Number of loop throughs
- 1
- Anti-bacterial treatment
- No
- Country of origin
- Germany
Standards & Compliance
- HS Code
- 8536.90
Cross References
- EAN 7020160377401
- SAP 1000074199
- Code 8564813
Product Documentation
More from ELKO
ELKO
PLUS Triple Cover 25mm POLAR WHITE
EKO04594
ELKO
1H-FRAME PLUS Dblplug POLAR WHITE
EKO05197
ELKO
Triple jacket 35mm RS Black
EKO40024
ELKO
4-Hole Double Socket Frame RS PURE WHITE
EKO30184
ELKO

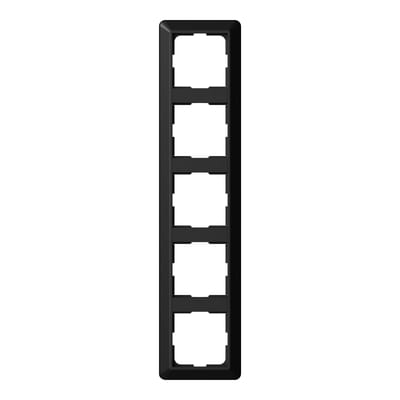

Frame 5-Hole RS Black
EKO40017
ELKO
RS Centre Plate 2X Keystone oblique PURE WHITE
EKO30490
ELKO
MOD.UT.1X8 Cat 6 UTP LSA One Black
EKO50114
ELKO

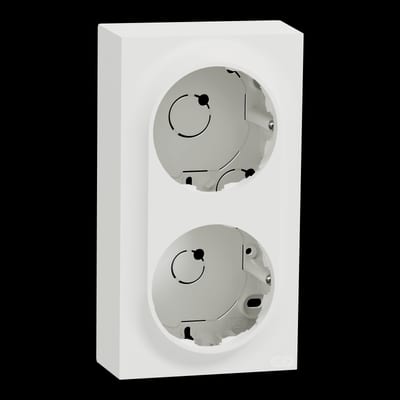

Double wall-mounted cover high One PURE WHITE
EKO50028
Catalogue entry last verified: 2026-09-29. A manufacturer datasheet is attached to this entry — confirm application-critical values against it.
Frequently asked questions
- Where can I buy EKO03774?
- EKO03774 can be ordered from cballast.com as a ELKO catalogue item: request a quotation on this page or email sales@cballast.com, and the order ships worldwide.
- What is the manufacturer part number for this ELKO product?
- The manufacturer part number is EKO03774.
- What is the HS code for EKO03774?
- The customs tariff (HS) code for EKO03774 is 8536.90.
- Who manufactures EKO03774?
- EKO03774 is a ELKO product in the Electrical Components range.
- Is a datasheet available for EKO03774?
- Yes — the EKO03774 datasheet can be viewed and downloaded on this page.
- What is the minimum order quantity for EKO03774?
- The minimum order quantity is 1.
- Is EKO03774 available?
- Yes — EKO03774 is available to order: fulfilment is from supplier stock in cBallast's European network, dispatched directly from the warehouse to the customer, with the exact lead time stated in the quotation (reply within 24 hours).
