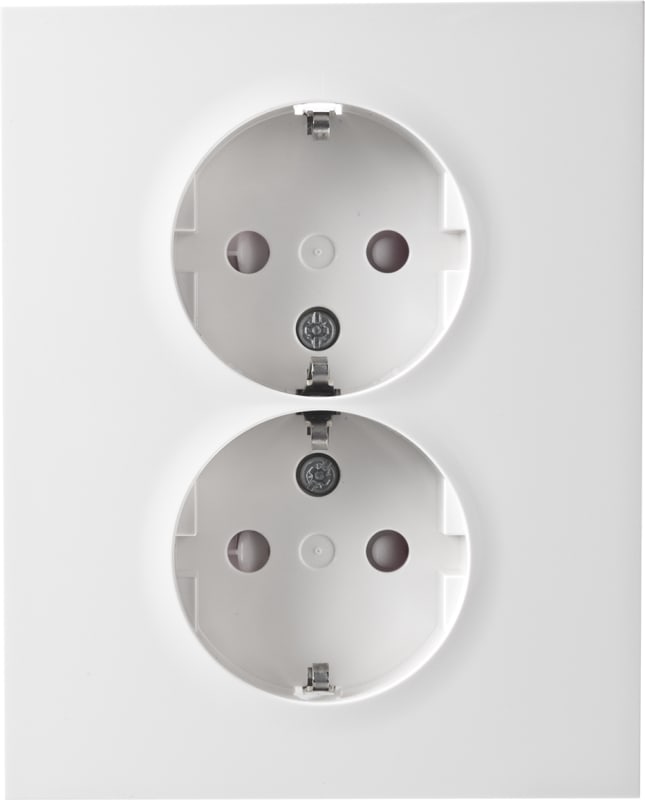

ELKO Plus Double Split-Phase Socket Outlet with Earth POLAR WHITE

ELKO Plus double flush-mounted socket outlet with earth, split-phase plinth and child protection (shuttered). Projects only 11 mm from the wall face. Rated 16 A / 440 V, IP20, halogen-free.

Manufacturer part number (MPN)

EKO06926

EAN / GTIN

7020160692610

HS code

8536.90

Sales unit

pcs

Package quantity

5 pcs

Nominal current

16 A

Nominal voltage

440 V

Mounting method

Flush-mounted

Colour

White

Model

Socket outlet with protective contact CEE 7/3 (type F)

Halogen free

Yes

Number of units

2

Lockable

No

With hinged lid

No

Connection type

Screwed terminal

Surface protection

Untreated

With signal lamp

No

Number of phases

2

With enhanced contact protection

Yes

Frequency

50–60 Hz

With on/off switch

No

Label space/information surface

No

Eject-mechanism

No

Material quality

Thermoplastic

Rotated central insert

No

Overvoltage protection

No

Fault current protection

No

Special power supply

No special power supply

Insulated mounting

Yes

Material

Plastic

Type of fastening

Mounting with screw

Imprint/indication

None

Concurrently switching neutral conductor

No

Transparent

No

Surface finishing

Glossy

With miniature fuse

No

With loop through function

Yes

Suitable for degree of protection (IP)

IP20

Device width

86 mm

Device height

107 mm

Device depth

42.5 mm

With function lighting

No

With orientation lighting

No

Number of active contacts (round)

4

Min. depth of built-in installation box

32 mm

Metallic colour

No

Protective contact

Earthing clips

Number of loop throughs

2

Anti-bacterial treatment

No

Country of origin

Germany

HS Code

8536.90

• EAN 7020160692610
• SAP 1200058605
• Code 81901032
