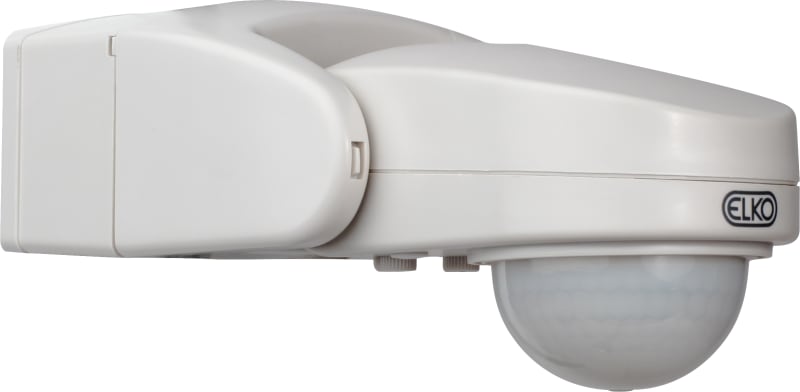

ELKO EKO05213 BF 360 Motion Sensor (PIR) IP55 Surface-mounted
Pricing
Request a quote
We reply within 24 hours
Product Description
ELKO motion sensor (PIR), 360 degrees, IP55, for control of e.g. lighting. Surface-mounted, 230 V AC, halogen-free thermoplastic housing, RAL 7035. Max. reach 12 m frontal and sideways, response luminosity 5-2000 lx (adjustable), switch-off delay up to 1800 s and constant-light control support.
Technical Specifications
- Manufacturer part number (MPN)
- EKO05213
- EAN / GTIN
- 7020160521316
- Sales unit
- pcs
- Package quantity
- 18 pcs
- IP rating
- IP55
- Nominal voltage
- 230 V
- Mounting method
- Surface mounted
- Colour
- White
- Width
- 100 mm
- Model
- Movement sensor
- Halogen free
- Yes
- Height
- 95 mm
- Depth
- 160 mm
- Connection type
- Screwed terminal
- Surface protection
- Untreated
- Creep-under protection
- No
- Voltage type
- AC
- Switch-off delay
- 1800 s
- Frequency
- 50 Hz
- With remote control
- No
- Suitable for wall mounting
- No
- Staircase light controller
- No
- Bridging switch
- No
- Suitable for wireless transmission
- No
- Material quality
- Thermoplastic
- Max. reach frontally
- 12 m
- Max. reach sideways
- 12 m
- Max. switching power
- 1000 W
- Temperature
- -15–40 °C
- Max. starting current
- 10 A
- Material
- Plastic
- Response value sensitivity adjustable
- Yes
- Dim function with dimmer basic element
- No
- Response value luminosity
- 5–2000 lx
- Suitable for C-load
- No
- Remote operation
- No
- HVAC-control
- No
- Constant light control
- Yes
- Substation input
- No
- RAL-number (similar)
- 7035
- With signal unit
- No
- Teach-function for response value luminosity
- No
- Networkable
- No
- Forced switch off
- No
- Scan angle
- 360 °
- With connection cable
- No
- Degree of protection (IP)
- IP55
- With alarm function
- No
- Transparent
- No
- Animal zone
- No
- Surface finishing
- Matt
- Detection angle horizontal
- 0–360 °
- Min. switch-on time
- 5 s
- Max. duty cycle
- 20 min
- Response value luminosity adjustable
- Yes
- Optimum mounting height
- 2.5 m
- Pivoting range sensor, horizontal
- 0–180 °
- Pivoting range sensor, vertical
- 0–360 °
- Number of switching zones
- 1
- With DALI interface
- No
- IFTTT support available
- No
- Forced switch on
- No
- Min. starting current
- 10 A
- Min. depth of built-in installation box
- 0 mm
- Compatible with Apple HomeKit
- No
- Compatible with Google Assistant
- No
- Compatible with Amazon Alexa
- No
- Max. switching power LED
- 100 W
- Background monitoring
- No
- With acoustic sensor
- No
- Sensor type
- Passive infrared
- Suitable for ceiling mounting
- No
- Anti-bacterial treatment
- No
- Country of origin
- China
Standards & Compliance
- HS Code
- 8536.50
Cross References
- EAN 7020160521316
- SAP 1000324948
- Code 81291806
Product Documentation
More from ELKO
ELKO
Socket without frame high quick-connect One Black
EKO50078
ELKO
Extension ring 10mm L 292
EKO08173
ELKO
2H-FRAME PLUS Dblplug POLAR WHITE
EKO05200
ELKO

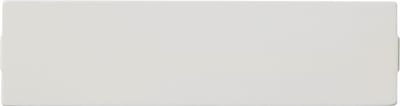

L3040 Side Part Combination Plate DSO PH
EKO09110
ELKO

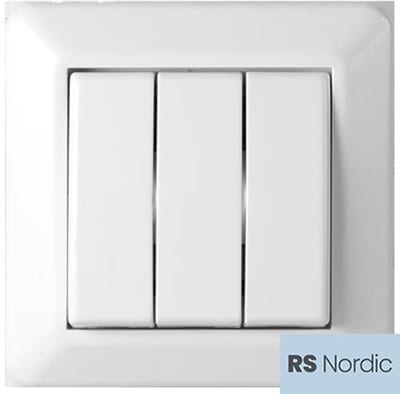

Switch 1+1+1 Pole Flush RS PURE WHITE
EKO30108
ELKO
Splice piece 90mm (EKO07432)
ELKO

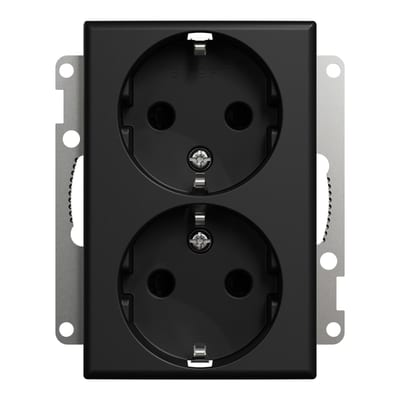

Double socket for frame Flush RS Black
