ELKO

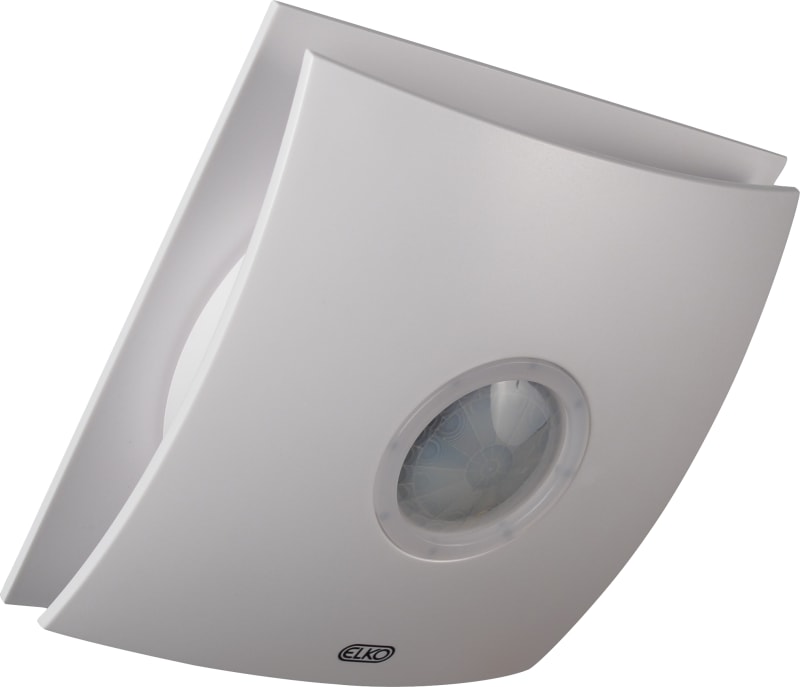

BF360 BEV.DETEKTOR Ceiling IP20
Part numberEKO05223EAN / GTIN7020160522313HS code8536.50
Lighting & Electrical Accessories
Motion Sensors
MOQ:1
Pricing
Request a quote
We reply within 24 hours
Product Description
ELKO motion sensor (PIR) 360 degrees for mounting in ceiling, for control of e.g. light.
Technical Specifications
- Manufacturer part number (MPN)
- EKO05223
- EAN / GTIN
- 7020160522313
- Sales unit
- pcs
- Package quantity
- 24 pcs
- IP rating
- IP20
- Nominal voltage
- 230 V
- Mounting method
- Surface mounted
- Colour
- Grey
- Width
- 135 mm
- Model
- Movement sensor
- Halogen free
- Yes
- Height
- 135 mm
- Depth
- 41 mm
- Connection type
- Screwed terminal
- Surface protection
- Untreated
- Creep-under protection
- No
- Voltage type
- AC
- Switch-off delay
- 1800 s
- Frequency
- 50 Hz
- With remote control
- No
- Diameter
- 140 mm
- Suitable for wall mounting
- No
- Staircase light controller
- No
- Bridging switch
- No
- Suitable for wireless transmission
- No
- Material quality
- Thermoplastic
- Max. switching power
- 1000 W
- Temperature
- -5–45 °C
- Max. starting current
- 6 A
- Material
- Plastic
- Response value sensitivity adjustable
- Yes
- Dim function with dimmer basic element
- No
- Response value luminosity
- 5–2000 lx
- Suitable for C-load
- No
- Diameter reach on floor
- 9.2 m
- Remote operation
- No
- HVAC-control
- No
- Constant light control
- Yes
- Substation input
- No
- RAL-number (similar)
- 7035
- With signal unit
- No
- Teach-function for response value luminosity
- No
- Networkable
- No
- Forced switch off
- No
- Scan angle
- 360 °
- With connection cable
- No
- Degree of protection (IP)
- IP20
- With alarm function
- No
- Transparent
- No
- Animal zone
- No
- Surface finishing
- Matt
- Detection angle horizontal
- 0–360 °
- Min. switch-on time
- 3 s
- Max. duty cycle
- 10 min
- Response value luminosity adjustable
- Yes
- Optimum mounting height
- 3 m
- Pivoting range sensor, horizontal
- 0–360 °
- Pivoting range sensor, vertical
- 0–360 °
- Number of switching zones
- 1
- With DALI interface
- No
- IFTTT support available
- No
- Forced switch on
- No
- Min. starting current
- 6 A
- Min. depth of built-in installation box
- 0 mm
- Compatible with Apple HomeKit
- No
- Compatible with Google Assistant
- No
- Compatible with Amazon Alexa
- No
- Max. switching power LED
- 100 W
- Background monitoring
- No
- With acoustic sensor
- No
- Sensor type
- Passive infrared
- Suitable for ceiling mounting
- No
- Anti-bacterial treatment
- No
Standards & Compliance
- HS Code
- 8536.50
Cross References
- EAN 7020160522313
- SAP 1000324949
- Code 81291807
Product Documentation
Document preview: BF360 BEV.DETEKTOR Ceiling IP20 (EKO05223) — Specification sheet
