ELKO

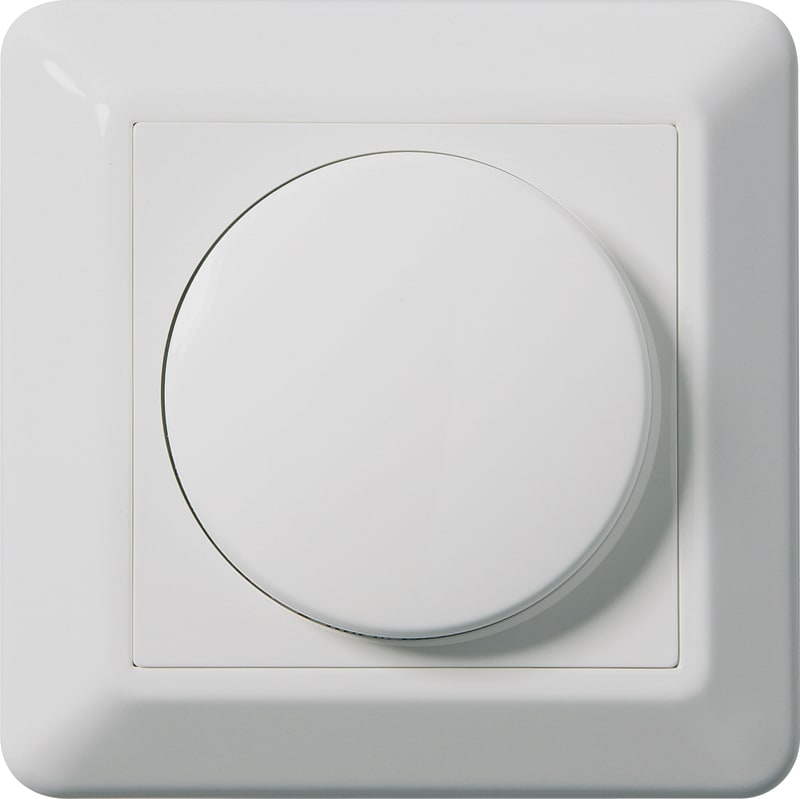

RS16/630 GLE Dimmer POLAR WHITE
Part numberEKO05108EAN / GTIN7020160510808HS code8536.90
Electrical Components
Switches & Dimmers
MOQ:1
Pricing
Request a quote
We reply within 24 hours
Product Description
ELKO EKO05108 Dimmer RS16 for max. 630 VA load of incandescent lamps and or electronic transformer. GLE dimmer POLAR WHITE.
Technical Specifications
- Manufacturer part number (MPN)
- EKO05108
- EAN / GTIN
- 7020160510808
- HS code
- 8536.90
- Sales unit
- pcs
- Package quantity
- 5 pcs
- Mounting method
- Flush-mounted
- Assembly arrangement
- Basic element with full cover plate
- Method of operation
- Turn/push button
- Colour
- White
- Halogen free
- Yes
- Number of units
- 1
- RAL-number
- 9010
- Connection type
- Screwed terminal
- Surface protection
- Untreated
- Frequency
- 50 Hz
- Material quality
- Thermoplastic
- Type of load
- Capacitive load
- Material
- Plastic
- Type of fastening
- Mounting with screw
- Light value memory
- No
- Substation input
- No
- Serial dimmer
- Yes
- Applicable with movement sensor
- No
- Applicable with transmission button
- No
- Applicable with infrared button
- No
- Applicable with presence indicator
- No
- Applicable with button
- No
- Applicable with time switch/timer
- No
- Nominal power
- 20–630 VA
- Nominal voltage
- 230 V
- Transparent
- No
- Surface finishing
- Glossy
- Suitable for degree of protection (IP)
- IP20
- Core cross section
- 1–2.5 mm²
- Device width
- 84 mm
- Device height
- 84 mm
- Device depth
- 50 mm
- Number of modules (module system)
- 1
- IFTTT support available
- No
- Dimming phase cut-off (trailing edge)
- Yes
- Dimming phase cut-on (leading edge)
- No
- Min. depth of built-in installation box
- 29 mm
- App control via Bluetooth
- No
- Nominal power resistive load
- 20–630 W
- Nominal power capacitive load
- 20–630 VA
- Compatible with Apple HomeKit
- No
- Compatible with Google Assistant
- No
- Compatible with Amazon Alexa
- No
- Min. brightness controllable
- No
- Device emplacement
- Indoor positioning
- Country of origin
- Latvia
Standards & Compliance
- HS Code
- 8536.90
Cross References
- EAN 7020160510808
- SAP 1000094945
- Code 8877120
Product Documentation
Document preview: RS16/630 GLE Dimmer POLAR WHITE (EKO05108) — Specification sheet
More from ELKO
ELKO
ELKO RS Nordic 1-Pole Surface-Mounted Switch White
EKO07669
ELKO
PLUS Single Cover 40mm POLAR WHITE
EKO04604
ELKO
Frame 1-Hole Plus HP Black
EKO30001
ELKO
400HR Speed Controller Flush RS PURE WHITE
EKO30142
ELKO
PLUS Switch Recessed 2 POLAR WHITE
EKO03728
ELKO
Multi box for flush-mount conduit ELKO
EKO04575
ELKO

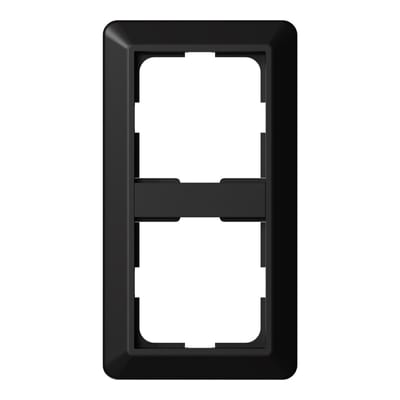

Frame 2-Hole RS Black
EKO40014
ELKO

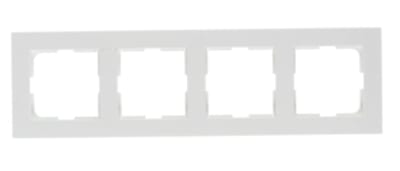

PLUS Frame 4-Hole POLAR WHITE
