ELKO

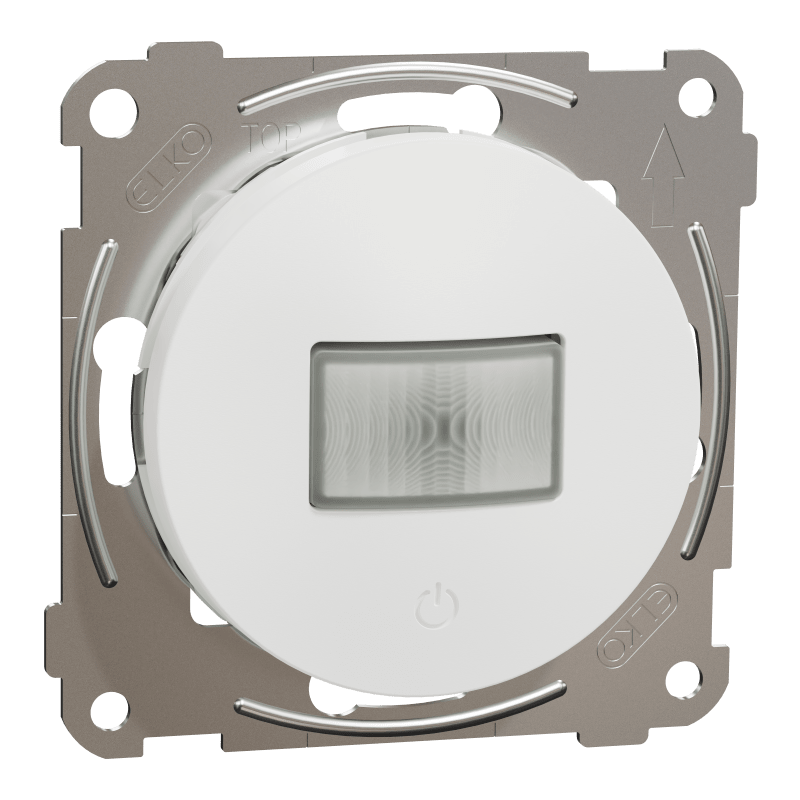

EasyPIR Univ One PURE WHITE
Part numberEKO50105EAN / GTIN7020160501059HS code8536.50
Lighting & Electrical Accessories
Motion Sensors
MOQ:1
Pricing
Request a quote
We reply within 24 hours
Product Description
ELKO One - EasyPIR Univ pure white.
Technical Specifications
- Manufacturer part number (MPN)
- EKO50105
- EAN / GTIN
- 7020160501059
- Sales unit
- pcs
- Package quantity
- 5 pcs
- Nominal voltage
- 230 V
- Mounting method
- Flush-mounted
- Colour
- White
- Width
- 84 mm
- Model
- Movement sensor
- Halogen free
- Yes
- Height
- 84 mm
- Depth
- 44 mm
- Connection type
- Screwed terminal
- Surface protection
- Untreated
- Creep-under protection
- No
- Voltage type
- AC
- Switch-off delay
- 1800 s
- Built-in depth
- 27 mm
- Frequency
- 50 Hz
- With remote control
- No
- Suitable for wall mounting
- Yes
- Built-in width
- 55 mm
- Built-in diameter
- 55 mm
- Staircase light controller
- Yes
- Bridging switch
- No
- Suitable for wireless transmission
- No
- Material quality
- Thermoplastic
- Max. reach frontally
- 8 m
- Max. reach sideways
- 6 m
- Max. switching power
- 2200 W
- Temperature
- 5–35 °C
- Max. starting current
- 10 A
- Material
- Plastic
- Ambient temperature
- 5–35 °C
- Response value sensitivity adjustable
- No
- Dim function with dimmer basic element
- No
- Response value luminosity
- 5–500 lx
- Suitable for C-load
- Yes
- Remote operation
- No
- HVAC-control
- No
- Constant light control
- No
- Substation input
- Yes
- RAL-number (similar)
- 9003
- With signal unit
- No
- Teach-function for response value luminosity
- No
- Networkable
- No
- Forced switch off
- Yes
- Scan angle
- 160 °
- Built-in length
- 55 mm
- Impact strength
- IK03
- With connection cable
- No
- Degree of protection (IP)
- IP20
- With alarm function
- No
- Transparent
- No
- Animal zone
- No
- Surface finishing
- Matt
- Detection angle horizontal
- 160 °
- Min. switch-on time
- 1 s
- Max. duty cycle
- 30 min
- Response value luminosity adjustable
- Yes
- Optimum mounting height
- 1 m
- Number of switching zones
- 13
- With DALI interface
- No
- IFTTT support available
- No
- Forced switch on
- Yes
- Min. depth of built-in installation box
- 27 mm
- Max. presence range
- 86 m²
- Compatible with Apple HomeKit
- No
- Compatible with Google Assistant
- No
- Compatible with Amazon Alexa
- No
- Max. switching power LED
- 200 W
- Background monitoring
- No
- With acoustic sensor
- No
- Movement sensor/presence detector technology
- Passive infrared
- Sensor type
- Passive infrared
- Suitable for ceiling mounting
- No
- Anti-bacterial treatment
- No
- Country of origin
- Poland
Standards & Compliance
- HS Code
- 8536.50
Cross References
- EAN 7020160501059
- SAP 1200727093
- Code 83859013
Product Documentation
Document preview: EasyPIR Univ One PURE WHITE (EKO50105) — Specification sheet
More from ELKO
ELKO

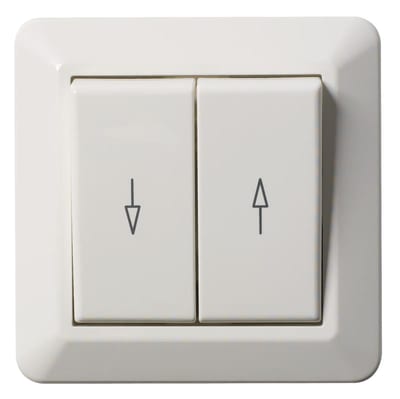

Markisebr RECESSED RS 16 /2
EKO05041
ELKO

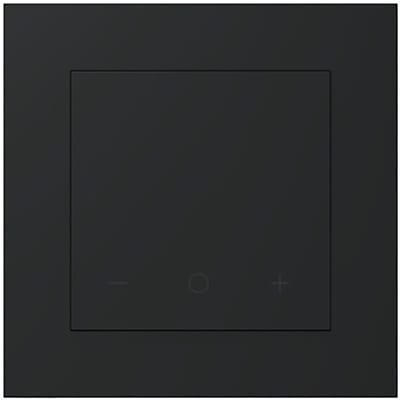

SmartTermostat Plus Black
EKO07258
ELKO

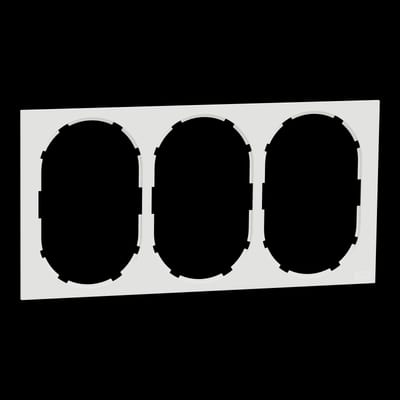

Frame 3-Hole for socket One PURE WHITE
EKO50012
ELKO

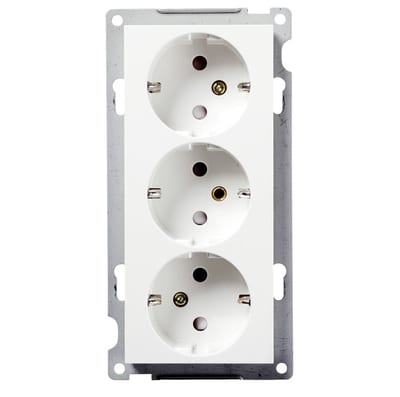

Three-Way socket Flush RS RH
EKO07265
ELKO

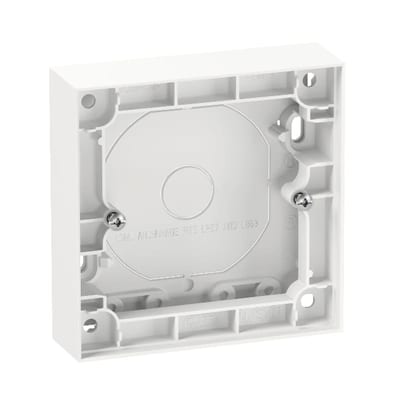

PLUS Single Cover 25mm POLAR WHITE
EKO04587
ELKO

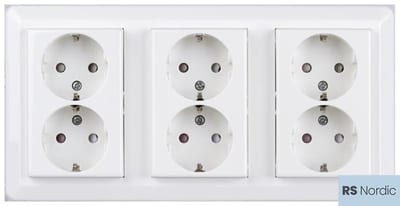

Six-Way socket Flush RS PURE WHITE
EKO30132
ELKO

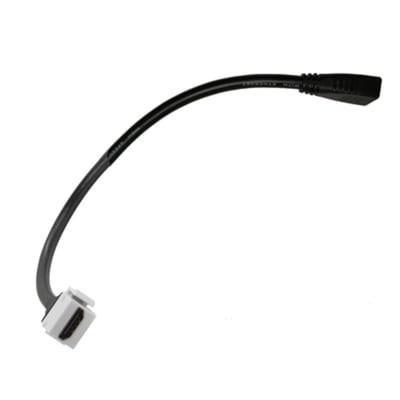

ELKO HDMI Adapter Cable 20cm Female to Female
EKO05900
ELKO

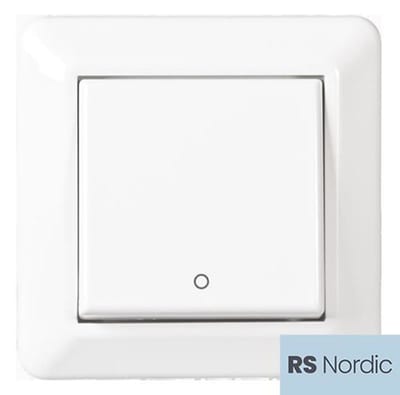

Switch 2 Pole Push-In Flush RS PURE WHITE
