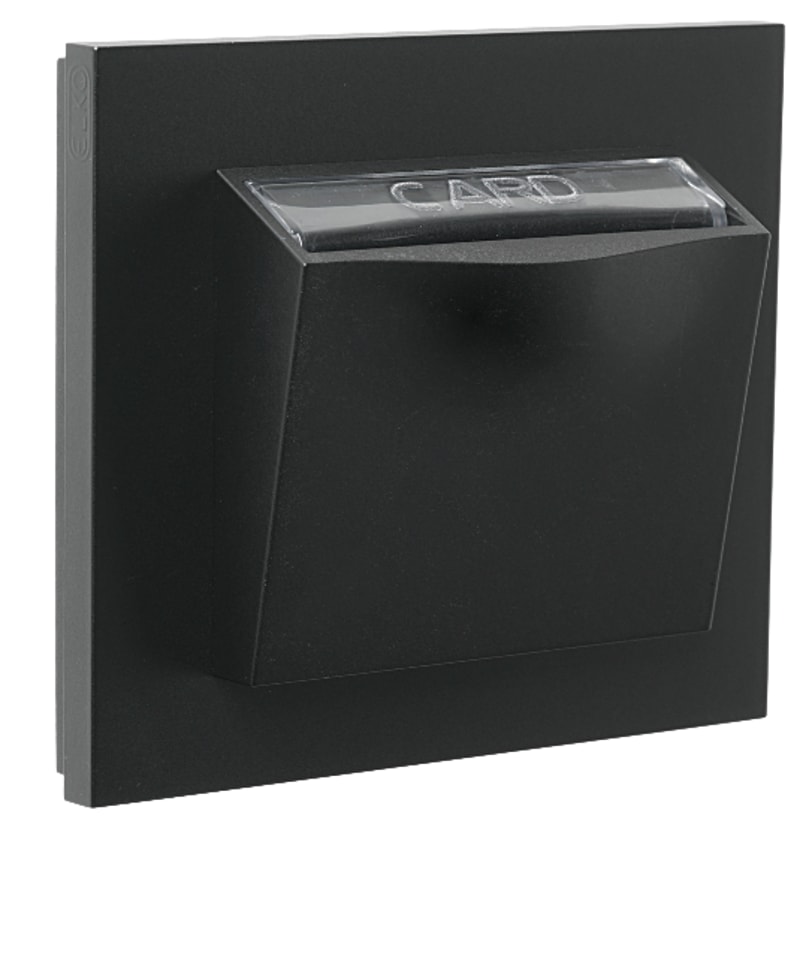

ELKO Plus Key Card Switch 1/2/6 SO Black 250 V 16 A
Pricing
Request a quote
We reply within 24 hours
Product Description
ELKO EKO04628 is a Plus-range key card switch configured as a two-way (1/2/6) SO device for hotel-room and access-controlled installations. It is a flush-mounted, single-module unit with screw terminals, a full cover plate in matt black thermoplastic, and orientation glow-lamp lighting. Ratings are 250 V and 16 A (10 AX for fluorescent loads) with an installed depth of 11.5 mm, suitable for IP21 enclosures. Typical use is in hotels and serviced accommodation for card-activated room power.
Technical Specifications
- Manufacturer part number (MPN)
- EKO04628
- EAN / GTIN
- 7020160462800
- Sales unit
- pcs
- Package quantity
- 5 pcs
- Wiring system
- Two-way switch
- Method of operation
- Hotel card
- Assembly arrangement
- Basic element with full cover plate
- Number of modules (module system)
- 1
- Push button switch
- No
- Mounting method
- Flush-mounted
- Type of fastening
- Screw mounting
- With mounting plate
- Yes
- Material
- Plastic
- Material quality
- Thermoplastic
- Halogen free
- Yes
- Anti-bacterial treatment
- No
- Surface protection
- Lacquered
- Surface finishing
- Matt
- Colour
- Black
- RAL-number (similar)
- 9005
- Label space/information surface
- No
- Lighting
- No
- Function lighting
- Orientation
- Type of lighting
- Glow lamp
- Suitable for degree of protection (IP)
- IP21
- Nominal voltage
- 250 V
- Rated current
- 16 A
- Switching current for fluorescent lamps
- 10 AX
- Monitoring contact
- No
- Connection type
- Screwed terminal
- Heating switch
- No
- Washing machine switch
- No
- Device width
- 86 mm
- Device height
- 86 mm
- Device depth
- 29 mm
- Built-in depth
- 11.5 mm
- Min. depth of built-in installation box
- 17 mm
- Imprint/indication
- None
- Country of origin
- Germany
Standards & Compliance
- HS Code
- 8536.50
Cross References
- EAN 7020160462800
- SAP 1000058496
- Code 8907572
Product Documentation
