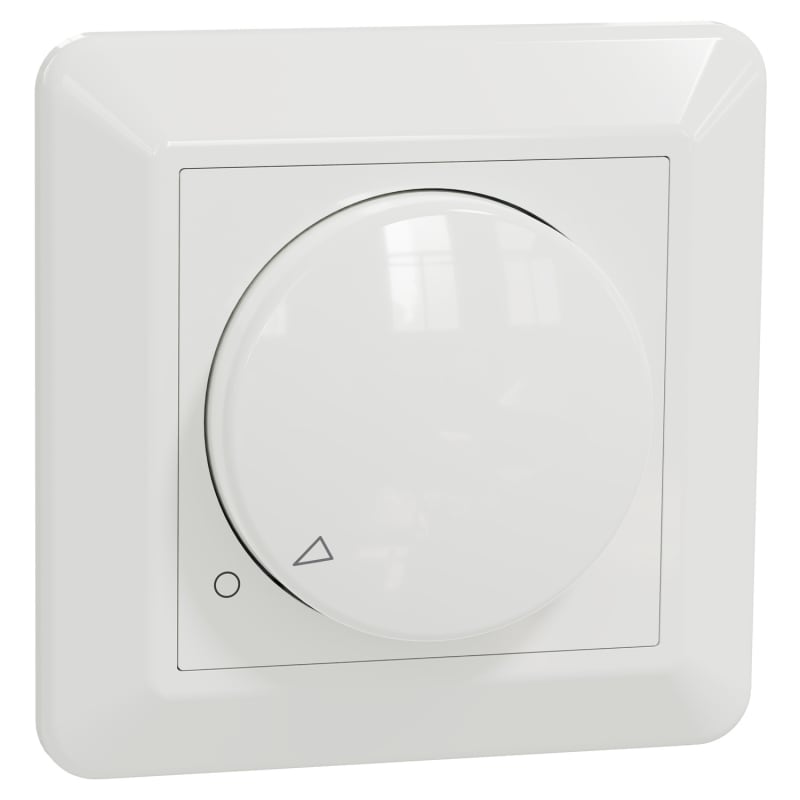

2POL GLED dimmer RS16 Polar-white
Pricing
Request a quote
We reply within 24 hours
Product Description
ELKO RS16 - 2-pole GLED dimmer, in polar-white, for GLED, capacitive and resistive loads. Flush-mounted, turn button operation, 50 Hz, screwed terminals, halogen-free, RAL 9010.
Technical Specifications
- Manufacturer part number (MPN)
- EKO70000
- EAN / GTIN
- 7020161700000
- HS code
- 8536.90
- Sales unit
- pcs
- Package quantity
- 5 pcs
- Mounting method
- Flush-mounted
- Assembly arrangement
- Basic element with full cover plate
- Method of operation
- Turn button
- Colour
- White
- Halogen free
- Yes
- Connection type
- Screwed terminal
- Surface protection
- Untreated
- Frequency
- 50 Hz
- Type of load
- Capacitive load
- Type of fastening
- Mounting with screw
- Light value memory
- No
- Substation input
- No
- RAL-number (similar)
- 9010
- Serial dimmer
- No
- Applicable with movement sensor
- No
- Applicable with transmission button
- No
- Applicable with infrared button
- No
- Applicable with presence indicator
- No
- Applicable with button
- No
- Applicable with time switch/timer
- No
- Impact strength
- IK02
- Nominal voltage
- 230 V
- Transparent
- No
- Surface finishing
- Glossy
- Suitable for degree of protection (IP)
- IP21
- Core cross section
- 1.5–2.5 mm²
- Device width
- 84 mm
- Device height
- 84 mm
- Device depth
- 25 mm
- Dimming phase cut-off (trailing edge)
- Yes
- Dimming phase cut-on (leading edge)
- No
- Min. depth of built-in installation box
- 35 mm
- App control via Bluetooth
- No
- Nominal power resistive load
- 0–400 W
- Nominal power capacitive load
- 0–400 VA
- Compatible with Apple HomeKit
- No
- Compatible with Google Assistant
- No
- Max. switching power LED
- 200 W
- Min. brightness controllable
- Yes
- Country of origin
- Latvia
Standards & Compliance
- HS Code
- 8536.90
Cross References
- EAN 7020161700000
- SAP 1200791551
- Code 83954646
Product Documentation
More from ELKO
ELKO

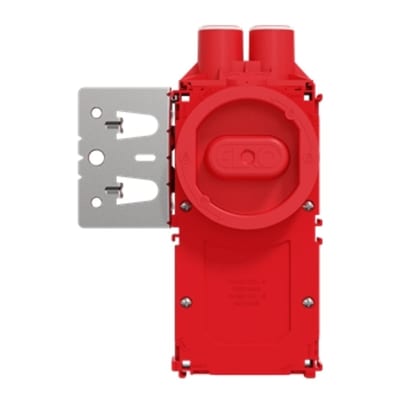

Bigbox 13-26mm 2-Run Stud
EKO10457
ELKO

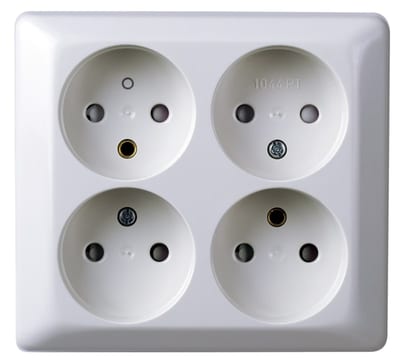

ELKO RS 4-Way Surface-Mounted Socket Outlet without Earth Pure White
EKO07486
ELKO

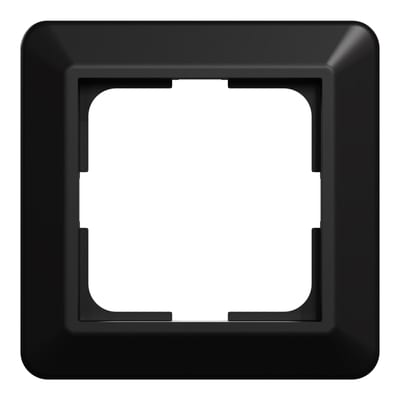

Frame 1-Hole RS Black
EKO40013
ELKO

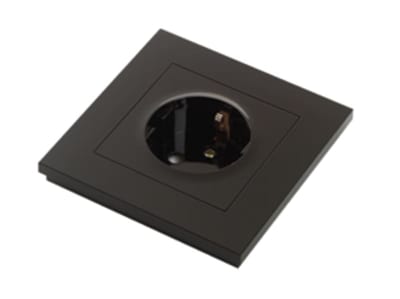

ELKO Plus Single Socket Flush-Mounted with Earth Black
