ELKO
Fire-Rated Stud Wall Installation Box
Part numberEKO10455EAN / GTIN7020160104557HS code3925.90
Electrical Components
Wiring Accessories
MOQ:1
Pricing
Request a quote
We reply within 24 hours
Product Description

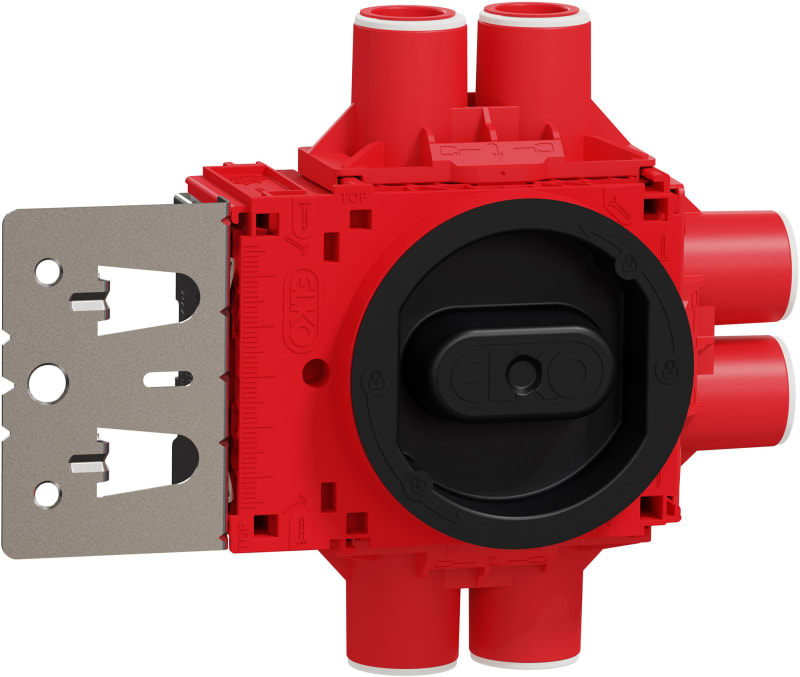

ELKO EKO10455 Flexi+ fire-rated installation box with 6 knockouts, approved for EI30, EI60 and EI90. Manually adjustable fixing ring 9-24 mm.
Technical Specifications
- Manufacturer part number (MPN)
- EKO10455
- EAN / GTIN
- 7020160104557
- Sales unit
- pcs
- Package quantity
- 35 pcs
- Number of adjustable device fixing lugs
- 2
- With partition panel
- No
- Mounting method
- Flush-mounted
- Shape
- Round
- Construction type
- Built-in installation box (device box)
- Model
- Single
- Provided with revolving ring
- Yes
- Couplable
- Yes
- Equipped with
- Mounting plate
- Diameter
- 71 mm
- Length
- 134 mm
- Width
- 168 mm
- Depth
- 55 mm
- Inner depth
- 48 mm
- Suitable for wall/board thickness
- 9–24 mm
- For number of electric fittings
- 1
- Mounting switching equipment
- Screwing
- With screws
- Yes
- Housing feed-through by break-out opening
- Yes
- Housing feed-through by seal membrane
- No
- Housing feed-through by nozzle
- No
- Housing feed-through by step membrane
- No
- For tube diameter
- 16/20 mm
- Pipe locking
- Yes
- Pipe locking optional
- No
- Inlet from the rear
- Yes
- Number of inlets
- 9
- Number of included spouts
- 6
- Material
- Plastic
- Halogen free
- Yes
- Surface protection
- Untreated
- Colour
- Red
- Degree of protection (IP)
- I
Standards & Compliance
- HS Code
- 3925.90
Cross References
- EAN 7020160104557
- SAP 1200700615
- Code 83593991
Product Documentation
Document preview: Fire-Rated Stud Wall Installation Box (EKO10455) — Specification sheet
