ELKO
Double box low 4-Run stud
Part numberEKO07420EAN / GTIN7020160742001HS code3925.90
Electrical Components
Wiring Accessories
MOQ:1
Pricing
Request a quote
We reply within 24 hours
Product Description

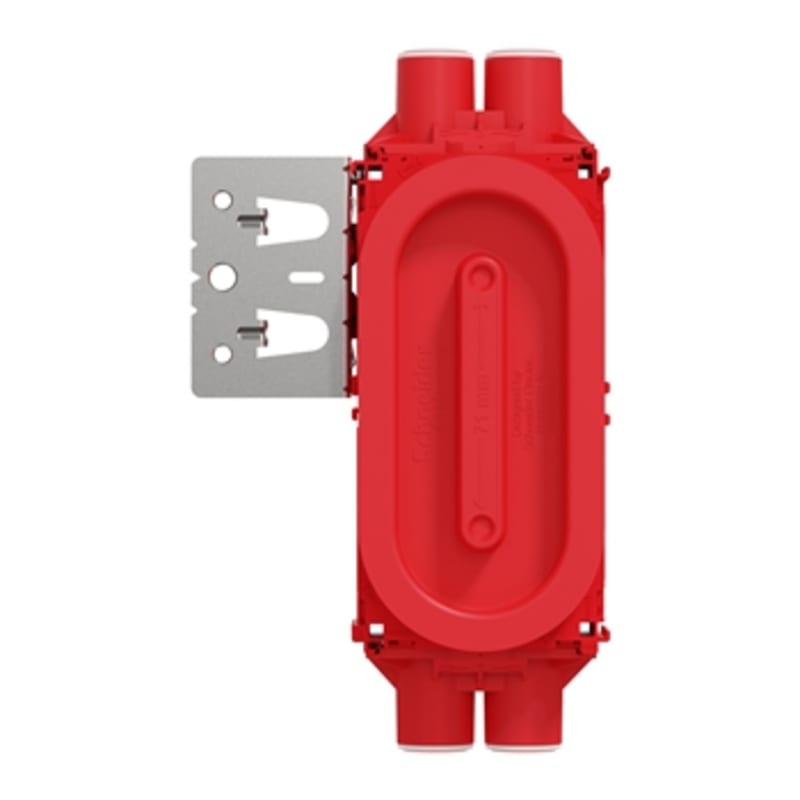

ELKO EKO07420 Double Box low 4-run stud.
Technical Specifications
- Manufacturer part number (MPN)
- EKO07420
- EAN / GTIN
- 7020160742001
- Sales unit
- pcs
- Package quantity
- 25 pcs
- With partition panel
- No
- Mounting method
- Flush-mounted
- Shape
- Rectangular
- Construction type
- Built-in installation box (device box)
- Model
- Double
- Provided with revolving ring
- Yes
- Couplable
- No
- Equipped with
- Mounting plate
- Length
- 204 mm
- Width
- 118 mm
- Depth
- 57 mm
- Inner depth
- 54 mm
- For number of electric fittings
- 2
- Mounting switching equipment
- Screwing
- With screws
- Yes
- Housing feed-through by break-out opening
- No
- Housing feed-through by seal membrane
- No
- Housing feed-through by nozzle
- Yes
- Housing feed-through by step membrane
- No
- For tube diameter
- 16/20 mm
- Pipe locking
- No
- Pipe locking optional
- No
- Inlet from the rear
- No
- Number of inlets
- 4
- Material
- Plastic
- Halogen free
- Yes
- Surface protection
- Untreated
- Colour
- Red
- Degree of protection (IP)
- IP30
- Cover model
- Construction protective cover
- Transparent cover
- No
- Cover attachment
- Snapped on
- Sealable
- No
- Circuit integrity
- None
- With screening
- No
- Air tight
- No
- Clamp position fixed
- No
- Luminaire hook mounting
- No
- With nail lugs
- No
- Special application
- Fire protection
- Country of origin
- Poland
Standards & Compliance
- HS Code
- 3925.90
Cross References
- EAN 7020160742001
- SAP 1200483617
- Code 82573233
Product Documentation
Document preview: Double box low 4-Run stud (EKO07420) — Specification sheet
