ELKO

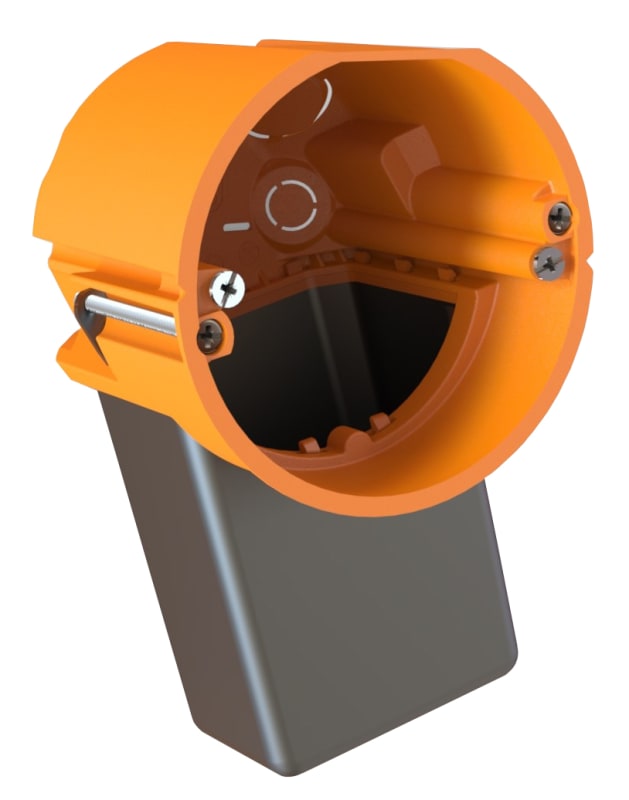

Multi box BigBox (EKO05666)
Part numberEKO05666EAN / GTIN7020160566621HS code3926.90
Electrical Components
Wiring Accessories
MOQ:1
Pricing
Request a quote
We reply within 24 hours
Product Description
ELKO EKO05666 Multi box with extra wiring space, suited for extensive wiring, control units or tele- data outlet.
Technical Specifications
- Manufacturer part number (MPN)
- EKO05666
- EAN / GTIN
- 7020160566621
- Sales unit
- pcs
- Package quantity
- 20 pcs
- With partition panel
- No
- Mounting method
- Flush-mounted
- Shape
- Round
- Construction type
- Built-in installation box (device box)
- Model
- Single
- Provided with revolving ring
- No
- Couplable
- No
- Equipped with
- None
- Diameter
- 73 mm
- Length
- 73 mm
- Width
- 73 mm
- Depth
- 75 mm
- Inner depth
- 73 mm
- Suitable for wall/board thickness
- 13–26 mm
- For number of electric fittings
- 1
- Mounting switching equipment
- Screwing
- With screws
- Yes
- Housing feed-through by break-out opening
- Yes
- Housing feed-through by seal membrane
- No
- Housing feed-through by nozzle
- No
- Housing feed-through by step membrane
- No
- For tube diameter
- 16/20 mm
- Suitable for cable diameter
- 1.5–2.5 mm
- Pipe locking
- No
- Pipe locking optional
- No
- Inlet from the rear
- No
- Material
- Plastic
- Halogen free
- Yes
- Surface protection
- Untreated
- Colour
- Orange
- Degree of protection (IP)
- IP21
- Cover model
- None
- Transparent cover
- No
- Cover attachment
- Screwed
- Sealable
- No
- Circuit integrity
- None
- With screening
- No
- Air tight
- No
- Max. conductor cross section
- 4 mm²
- Clamp position fixed
- No
- Luminaire hook mounting
- No
- Nozzle
- None
- With nail lugs
- No
- Special application
- None
- Country of origin
- Germany
Standards & Compliance
- HS Code
- 3926.90
Cross References
- EAN 7020160566621
- SAP 1200473507
- Code 82544699
Product Documentation
Document preview: Multi box BigBox (EKO05666) — Specification sheet
