Outlet Set 4D-1 data/grey DUCT-4D-1
Part number1285307HS code7308.90
Electrical Components
Socket Outlets
MOQ:1
Pricing
Request a quote
We reply within 24 hours
Product Description

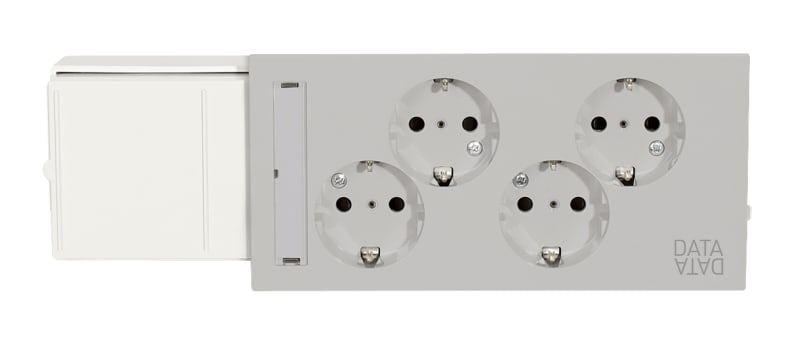

Elis Elektro 1285307 Outlet Set 4D-1 data/grey Duct-4D-1.
Technical Specifications
- Manufacturer part number (MPN)
- 1285307
- Sales unit
- pcs
- El-nummer (NO)
- 1285307
- ETIM class
- SC000125
- Nominal current
- 16 A
- Nominal voltage
- 250 V
- Mounting method
- Flush-mounted
- Colour
- Grey
- Model
- Socket outlet with protective contact CEE 7/3 (type F)
- Halogen free
- Yes
- Lockable
- No
- With hinged lid
- No
- Connection type
- Push-in clamp
- With signal lamp
- No
- Number of socket outlets
- 4
- Number of phases
- 1
- With enhanced contact protection
- No
- Frequency
- 50 Hz
- With on/off switch
- No
- Label space/information surface
- Yes
- Eject-mechanism
- No
- Material quality
- Thermoplastic
- Rotated central insert
- Yes
- Overvoltage protection
- No
- Fault current protection
- No
- Insulated mounting
- Yes
- Material
- Plastic
- Type of fastening
- Snap mounting (engagement)
- Imprint/indication
- Data
- RAL-number (similar)
- 9006
- Impact strength
- IK00
- Transparent
- No
- Surface finishing
- Glossy
- With miniature fuse
- No
- With loop through function
- Yes
- Suitable for degree of protection (IP)
- IP20
- Device width
- 85 mm
- Device height
- 50 mm
- Device depth
- 250 mm
- With function lighting
- No
- With orientation lighting
- No
- Number of modules (module system)
- 1
- Number of active contacts (round)
- 4
- Min. depth of built-in installation box
- 0 mm
- Anti-bacterial treatment
- No
- Country of origin
- Sweden
Standards & Compliance
- HS Code
- 7308.90
Cross References
- 6438100337858
- El-nr 1285307
Product Documentation
Document preview: Outlet Set 4D-1 data/grey DUCT-4D-1 (1285307) — Specification sheet
More from Elis Elektro
Elis Elektro
Datacover 2XRJ45 Keystone White DUCT-KEY-3
1285310
Elis Elektro
Elis Elektro MP-U504V MP-Flex Branch Pole 2500 mm White
1205005
Elis Elektro

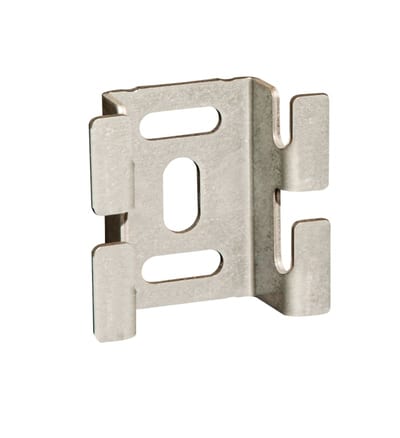

Wall bracket Mini Hot-dip galvanised
MP-734Z
Elis Elektro

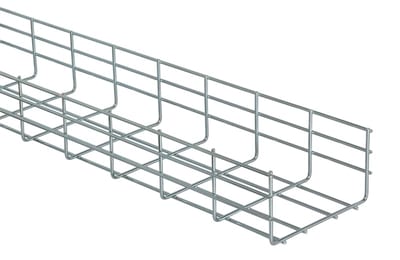

Wire Mesh Tray 200 H110 Z4 L=2,5M
MP-723HZ4
Elis Elektro
Hose Bracket Ø50 White MP-U024V
1205069
Elis Elektro

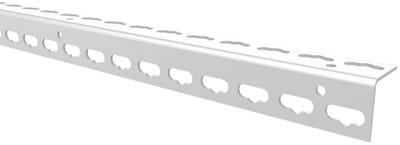

Angle Profile 35X35 White 1,5M MP-994V
1353792
Elis Elektro

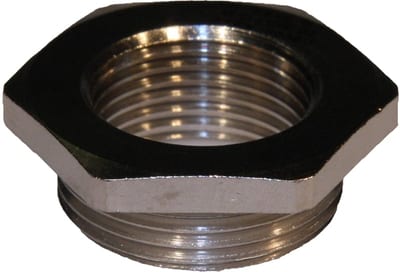

Reducer EEXE M25-M20 Brass
1254968
Elis Elektro

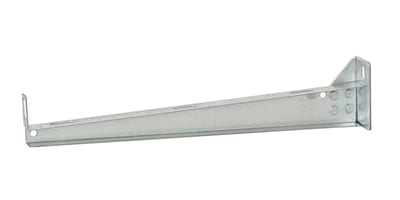

Wall Bracket 400 mm, Acid-Resistant Steel
