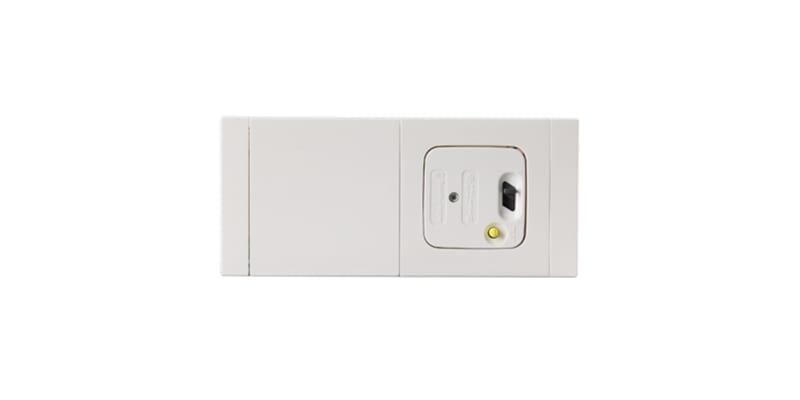

Elis Elektro AUD41 Residual Current Circuit Breaker (RCCB) — 2-Pole, 16 A, 30 mA, Flush-Mounting

A two-pole residual current circuit breaker rated 16 A with a 30 mA residual current setting, built for flush mounting with a 45 mm installation depth rather than for a DIN rail — the form used where the protection goes into a wall box at the point of use instead of back at the distribution board. An RCCB disconnects the circuit when the current flowing out does not match the current returning, which is the signature of a fault to earth, whether through failed insulation or through a person. It provides no overcurrent protection of its own. At 30 mA it is rated for the protection of people against electric shock. Rated voltage 230 V, 50 Hz, IP20, non-selective. Supplied by cBallast on quote-to-invoice terms; lead time and freight are quoted per RFQ against the destination Incoterm.

Manufacturer part number (MPN)

AUD41

EAN / GTIN

6418677335730

Sales unit

pcs

Mounting method

Built-in

Built-in depth

45 mm

Rated current

16 A

Rated voltage

230 V

Rated insulation voltage Ui

230 V

Number of poles

2

Rated fault current

0.03 A

Leakage current type

AC

Selective protection

No

Surge current capacity

16 kA

Short-time delayed tripping

No

Frequency

50 Hz

Degree of protection (IP)

IP20

With interlocking device

No

Additional equipment possible

No

Rated impulse withstand voltage Uimp

230 kV

Country of origin

Sweden

Device type

Residual current circuit breaker (RCCB), no integral overcurrent protection

Rated residual current (IΔn)

30 mA

Protection purpose

Protection of people against electric shock

Mounting

Flush / built-in, 45 mm installation depth

HS Code

7308.90

• EAN 6418677335730
• SAP 1000515599
• Code 8390800
