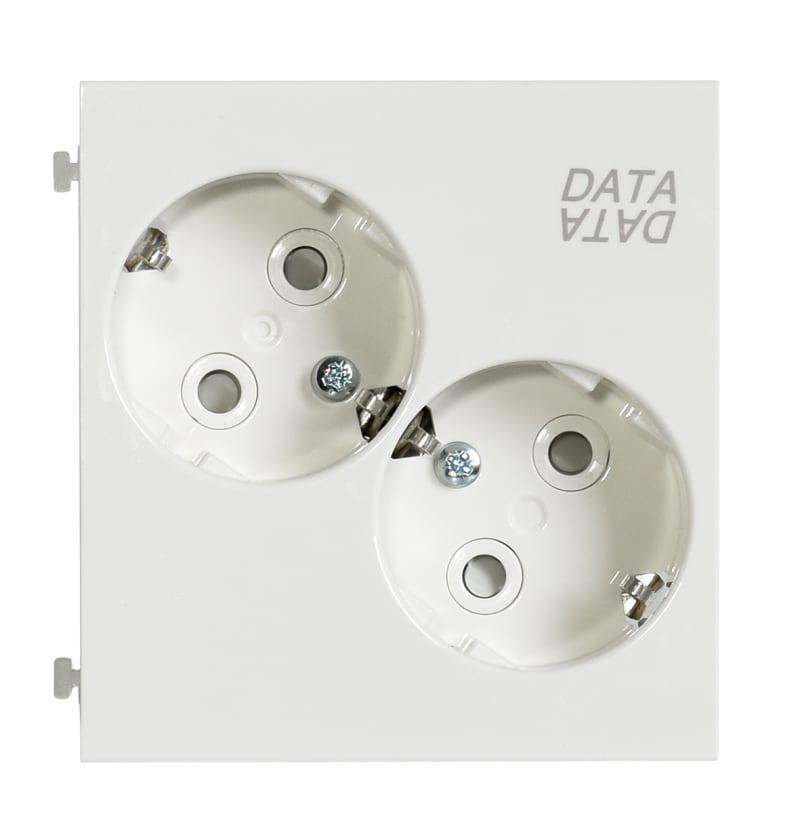

Socket Outlet 2-Way Earthed Data White AUD10-214D

Elis Elektro 1285267 is a 2-way earthed data socket outlet in white (AUD10-214D). Flush-mounted CEE 7/3 (type F) construction, rated 16 A at 230 V, 50 Hz, with push-in terminals. Suitable for residential and office installations requiring a compact double earthed socket.

Manufacturer part number (MPN)

1285267

Sales unit

pcs

El-nummer (NO)

1285267

ETIM class

SC000125

Nominal current

16 A

Nominal voltage

230 V

Mounting method

Flush-mounted

Colour

White

Model

Socket outlet with protective contact CEE 7/3 (type F)

Halogen free

Yes

Lockable

No

With hinged lid

No

Connection type

Push-in clamp

Surface protection

Untreated

With signal lamp

No

Number of socket outlets

2

Number of phases

1

With enhanced contact protection

No

Frequency

50 Hz

With on/off switch

No

Label space/information surface

No

Eject-mechanism

No

Rotated central insert

No

Overvoltage protection

No

Fault current protection

No

Insulated mounting

Yes

Material

Plastic

Type of fastening

Snap mounting (engagement)

Imprint/indication

Data

RAL-number (similar)

9010

Transparent

No

Surface finishing

Glossy

With miniature fuse

No

With loop through function

Yes

Suitable for degree of protection (IP)

IP20

Device width

80 mm

Device height

85 mm

Device depth

45 mm

Number of socket outlets switchable

2

With function lighting

No

With orientation lighting

No

Number of active contacts (round)

2

Min. depth of built-in installation box

0 mm

Anti-bacterial treatment

No

Country of origin

Sweden

HS Code

7308.90

• 6438199002033
• El-nr 1285267
