Elis Elektro
Nipple M32X1,5 Ex-db/eb/tb OCTANS (22-28
Part number1255788EAN / GTIN7070613074111HS code3917.40
Electrical Components
Cable Glands
MOQ:1
Pricing
Request a quote
We reply within 24 hours
Product Description

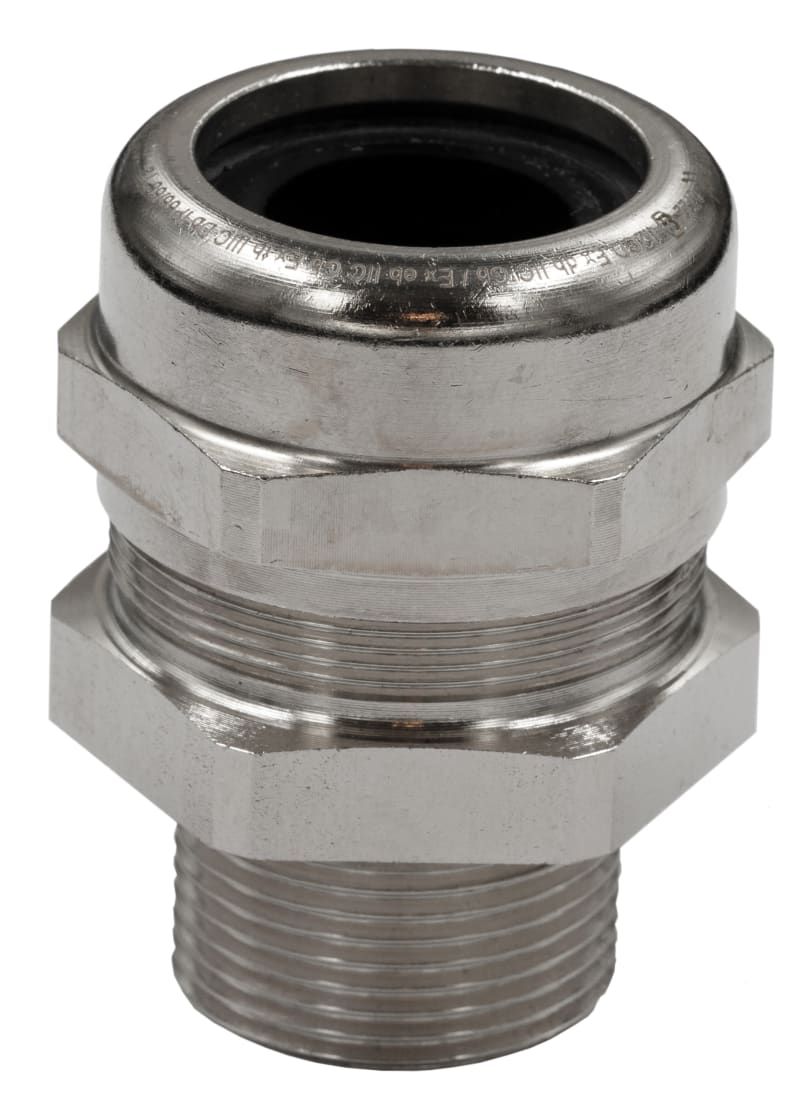

Elis Elektro 1255788 Nipple M32x1,5 Ex-db/eb/tb OCTANS (22-28).
Technical Specifications
- Manufacturer part number (MPN)
- 1255788
- EAN / GTIN
- 7070613074111
- Sales unit
- pcs
- Package quantity
- 3000 pcs
- Thread size
- M32x1.5
- Connection type to housing
- Screwing
- Pressure-compensating
- No
- Thread type
- Metric
- Nominal thread size metric/PG
- 32
- Pitch thread
- 1.5 mm
- Thread length
- 16 mm
- Wrench width
- 45 mm
- Hexagon angular dimension
- 39 mm
- Suitable for cable diameter
- 22–28 mm
- Material
- Metal
- Material quality
- Brass
- Surface protection
- Nickel-plated
- Halogen free
- No
- Glass-fibre reinforced
- No
- Degree of protection (IP)
- IP68
- Shock resistant
- Yes
- Bend radius protection/trumpet flare
- No
- With locknut
- No
- Snapping in opening
- Yes
- Multi seal area
- No
- Flat cable coupling
- No
- With strain relief
- Yes
- Separable screw gland
- No
- Operating temperature
- -40–80 °C
- Explosion-tested version
- Yes
- For armoured cable
- No
- EMC-version
- No
- Screened
- No
- Material sealing
- CR (neoprene)
- Colour
- Nickel
- Country of origin
- Türkiye
Standards & Compliance
- HS Code
- 3917.40
Cross References
- EAN 7070613074111
- SAP 1200754701
- Code 83896736
Product Documentation
Document preview: Nipple M32X1,5 Ex-db/eb/tb OCTANS (22-28 (1255788) — Specification sheet
