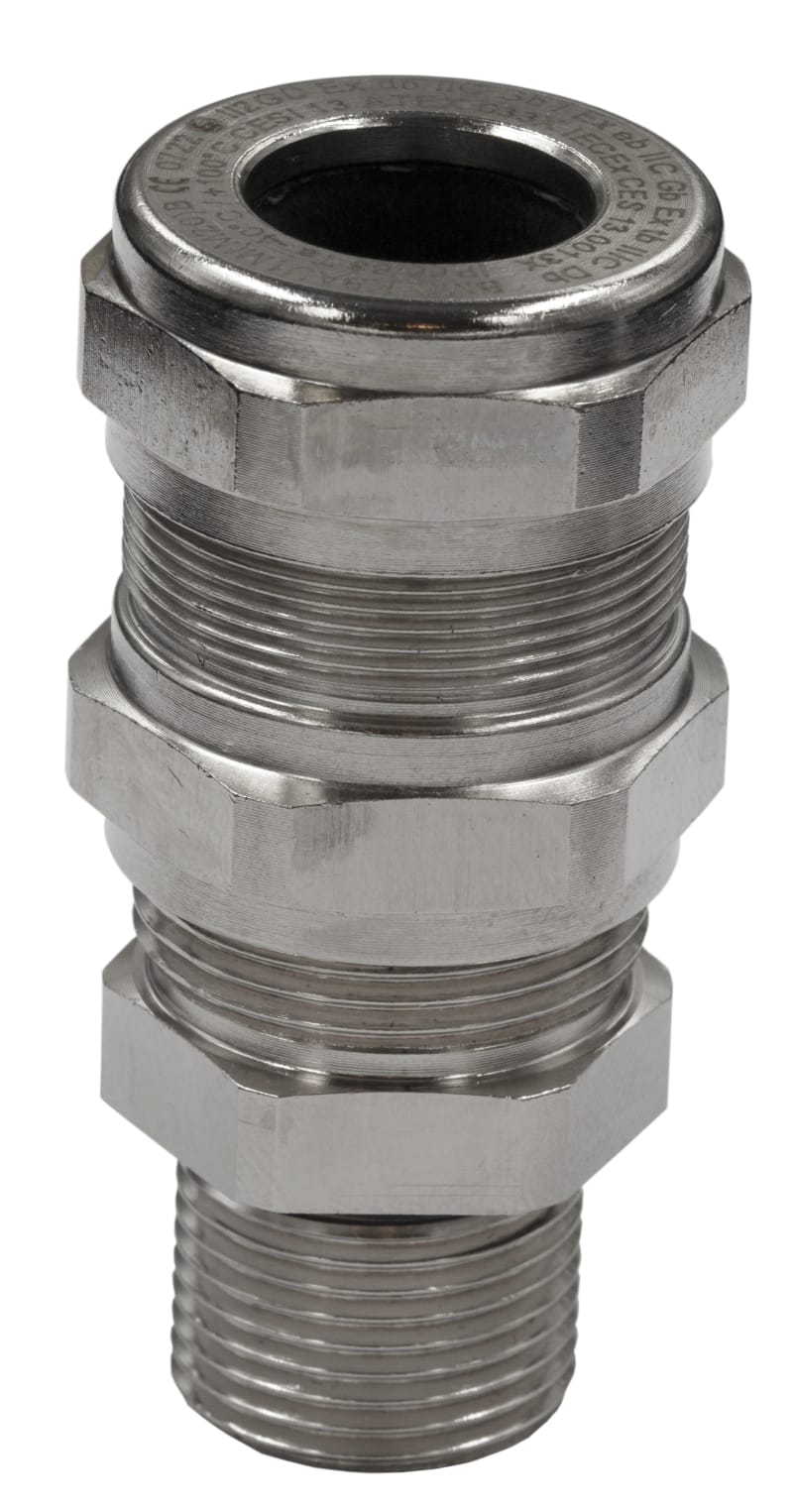

Nipple M20X1,5 Ex-db/eb/tb ORION (6-12)
Part number1255773EAN / GTIN7070613074005HS code3917.40
Electrical Components
Cable Glands
MOQ:1
Pricing
Request a quote
We reply within 24 hours
Product Description
Elis Elektro 1255773 Nipple M20x1,5 Ex-db/eb/tb ORION (6-12).
Technical Specifications
- Manufacturer part number (MPN)
- 1255773
- EAN / GTIN
- 7070613074005
- Sales unit
- pcs
- Package quantity
- 3000 pcs
- Thread size
- M20x1.5
- Connection type to housing
- Screwing
- Thread type
- Metric
- Nominal thread size metric/PG
- 20
- Pitch thread
- 1.5 mm
- Thread length
- 16 mm
- Wrench width
- 24 mm
- Hexagon angular dimension
- 29 mm
- Suitable for cable diameter
- 6–11 mm
- Material
- Metal
- Material quality
- Brass
- Surface protection
- Nickel-plated
- Halogen free
- No
- Glass-fibre reinforced
- No
- Degree of protection (IP)
- IP68
- Shock resistant
- Yes
- Bend radius protection/trumpet flare
- No
- With locknut
- No
- Snapping in opening
- Yes
- Multi seal area
- Yes
- Flat cable coupling
- No
- With strain relief
- Yes
- Separable screw gland
- No
- Operating temperature
- -40–100 °C
- Explosion-tested version
- Yes
- For armoured cable
- Yes
- EMC-version
- Yes
- Screened
- Yes
- Material sealing
- Silicone
- Colour
- Nickel
- Country of origin
- Türkiye
Standards & Compliance
- HS Code
- 3917.40
Cross References
- EAN 7070613074005
- SAP 1200754703
- Code 83896727
Product Documentation
Document preview: Nipple M20X1,5 Ex-db/eb/tb ORION (6-12) (1255773) — Specification sheet
More from Elis Elektro
Elis Elektro
Fastening plate wire mesh tray hole White
MP-739V
Elis Elektro
Nipple M32X1,5 Ex-eb/tb CRUX (16-26)
1255766
Elis Elektro

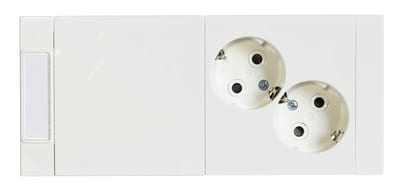

Elis Elektro AUD11-214 Socket Outlet Set 2-Way White
Elis Elektro

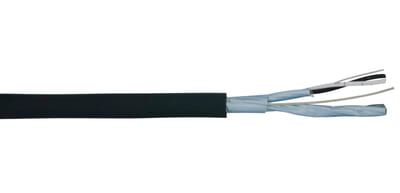

RE2Y(St)Y PIMF 2X2X0,5 mm² Sva
1003640
Elis Elektro
2XSLCHK-JB 3+ 3X4+3X0,75 mm²
1003232
Elis Elektro

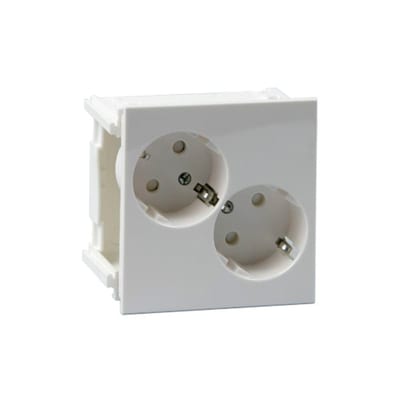

Elis Elektro AUD10-214 Earthed Socket Outlet 2-Way White
