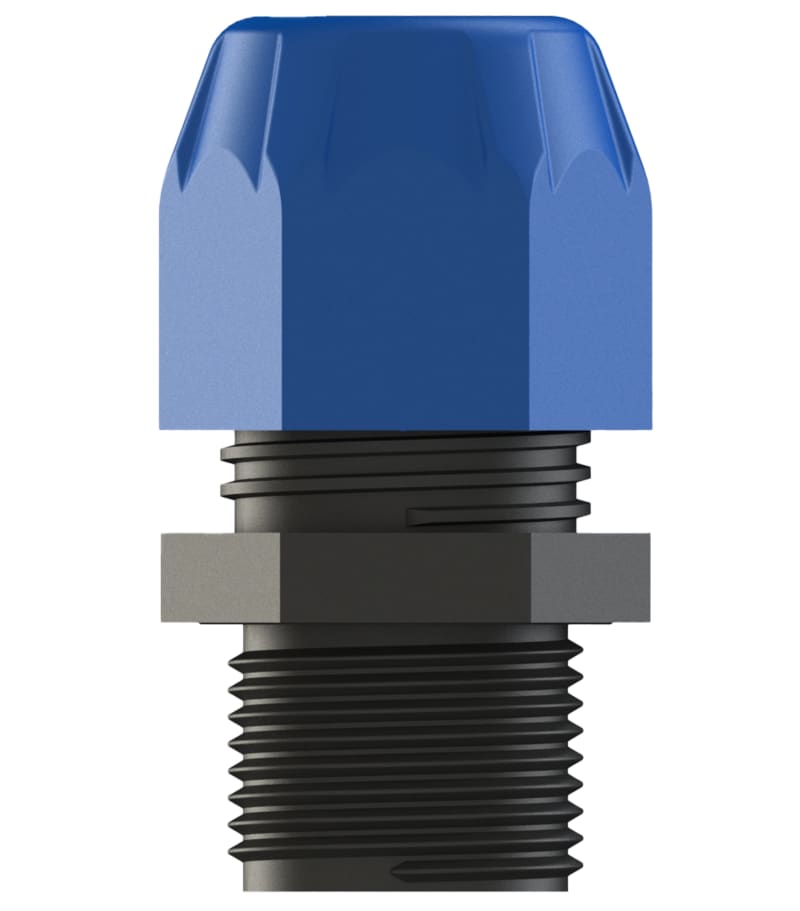

NIPPLE M32X1,5 (12,0-21,0) Ex-in (VEGA)
Part number1255665EAN / GTIN7070613074463HS code3917.40
Electrical Components
Cable Glands
MOQ:1
Pricing
Request a quote
We reply within 24 hours
Product Description
Elis Elektro 1255665 NIPPLE M32x1,5 (12,0-21,0) Ex-in (VEGA).
Technical Specifications
- Manufacturer part number (MPN)
- 1255665
- EAN / GTIN
- 7070613074463
- Sales unit
- pcs
- Thread size
- M32x1.5
- Connection type to housing
- Screwing
- Pressure-compensating
- No
- Thread type
- Metric
- Nominal thread size metric/PG
- 32
- Pitch thread
- 1.5 mm
- Thread length
- 10 mm
- Wrench width
- 36 mm
- Hexagon angular dimension
- 41 mm
- Suitable for cable diameter
- 12–21 mm
- Material
- Plastic
- Material quality
- Polyamide (PA)
- Surface protection
- Untreated
- Halogen free
- Yes
- Glass-fibre reinforced
- No
- Degree of protection (IP)
- IP68
- Shock resistant
- Yes
- RAL-number
- 9010
- Bend radius protection/trumpet flare
- No
- With locknut
- No
- Snapping in opening
- Yes
- Multi seal area
- Yes
- Flat cable coupling
- No
- With strain relief
- Yes
- Type of sealing
- Cut-out ring
- Separable screw gland
- No
- Operating temperature
- -40–70 °C
- Explosion-tested version
- Yes
- For Ex-zone gas
- 2
- For Ex-zone dust
- 20, 21, 22
- For armoured cable
- No
- EMC-version
- No
- Screened
- No
- Material sealing
- CR (neoprene)
- Colour
- Black
Standards & Compliance
- HS Code
- 3917.40
Cross References
- EAN 7070613074463
- SAP 1200824276
- Code 84008782
Product Documentation
Document preview: NIPPLE M32X1,5 (12,0-21,0) Ex-in (VEGA) (1255665) — Specification sheet
More from Elis Elektro
Elis Elektro

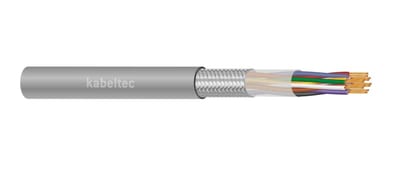

LIYCY-TP 4X2X0,75 mm²
1001730
Elis Elektro

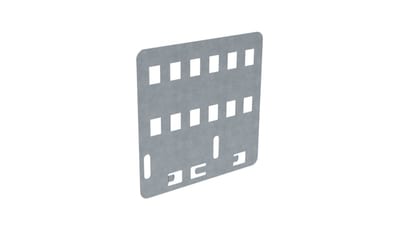

Fastening plate dataoutlet Lexcom
MP-110SL
Elis Elektro

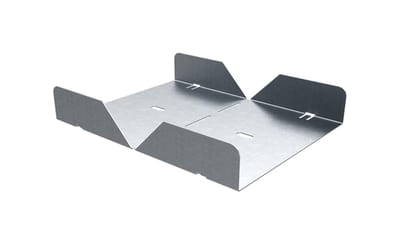

Level joint 200mm Sendz
MP-348S
Elis Elektro

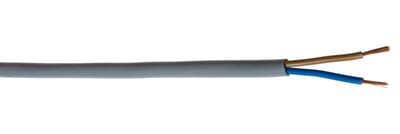

Elis Elektro ØPVC-JB 3G1.5 mm2 Earthed Installation Cable
1001791
Elis Elektro

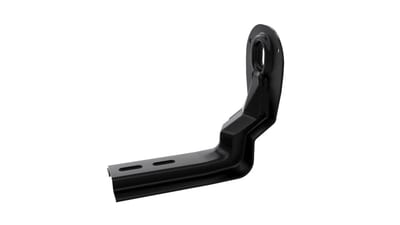

Bearing bracket inv 300-600 Black
MP-943SV
Elis Elektro

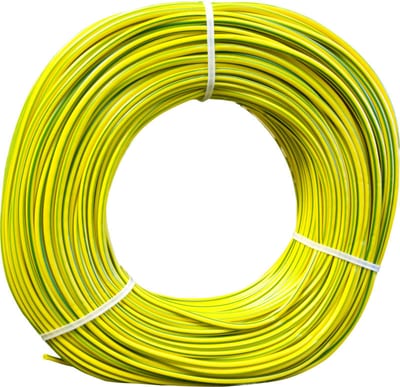

Sleeve PVC Yellow/Red 10mm
1800126
Elis Elektro

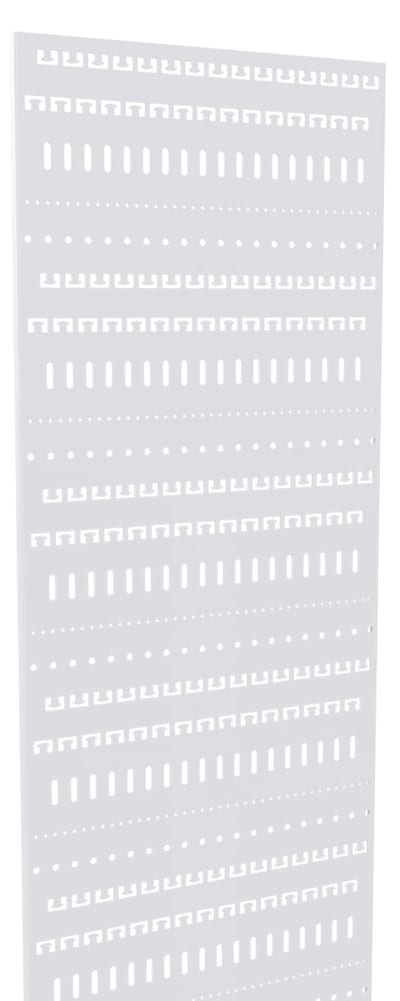

Mounting channel 400mm White L=2M MP-827V
