NIPPLE M12X1,5 (3,0-6,5) Ex-in (VEGA)
Part number1255661EAN / GTIN7070613074449HS code3917.40
Electrical Components
Cable Glands
MOQ:1
Pricing
Request a quote
We reply within 24 hours
Product Description

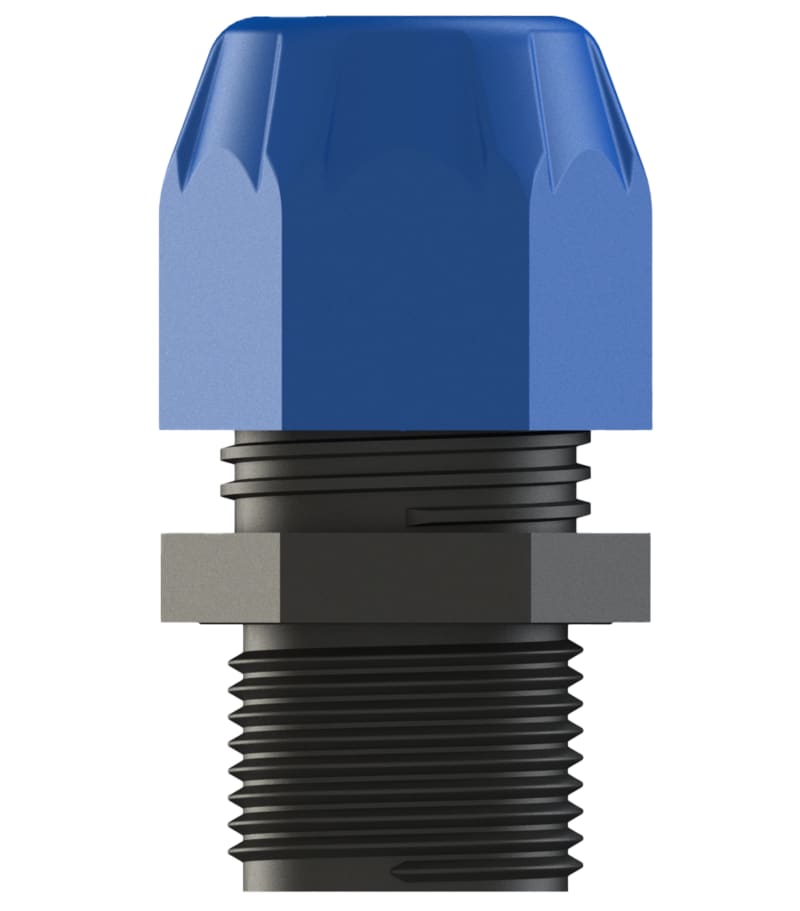

Elis Elektro 1255661 NIPPLE M12x1,5 (3,0-6,5) Ex-in (VEGA).
Technical Specifications
- Manufacturer part number (MPN)
- 1255661
- EAN / GTIN
- 7070613074449
- Sales unit
- pcs
- Thread size
- M12x1.5
- Connection type to housing
- Screwing
- Pressure-compensating
- No
- Thread type
- Metric
- Nominal thread size metric/PG
- 12
- Pitch thread
- 1.5 mm
- Thread length
- 10 mm
- Wrench width
- 15 mm
- Hexagon angular dimension
- 17 mm
- Suitable for cable diameter
- 3–6.5 mm
- Material
- Plastic
- Material quality
- Polyamide (PA)
- Surface protection
- Untreated
- Halogen free
- Yes
- Glass-fibre reinforced
- No
- Degree of protection (IP)
- IP68
- Shock resistant
- Yes
- RAL-number
- 9010
- Bend radius protection/trumpet flare
- No
- With locknut
- No
- Snapping in opening
- Yes
- Multi seal area
- Yes
- Flat cable coupling
- No
- With strain relief
- Yes
- Type of sealing
- Cut-out ring
- Separable screw gland
- No
- Operating temperature
- -40–70 °C
- Explosion-tested version
- Yes
- For Ex-zone gas
- 2
- For Ex-zone dust
- 20, 21, 22
- For armoured cable
- No
- EMC-version
- No
- Screened
- No
- Material sealing
- CR (neoprene)
- Colour
- Black
Standards & Compliance
- HS Code
- 3917.40
Cross References
- EAN 7070613074449
- SAP 1200824272
- Code 84008779
Product Documentation
Document preview: NIPPLE M12X1,5 (3,0-6,5) Ex-in (VEGA) (1255661) — Specification sheet
More from Elis Elektro
Elis Elektro
Enlarging Adapter M63 to M75, Brass
1254879
Elis Elektro
Sleeve PVC Yellow/Green 9mm
1800115
Elis Elektro

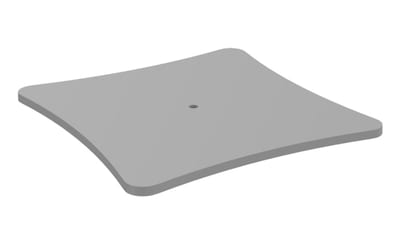

Rod Foot Flex/Duo 8 kg grey MP-U040G
Elis Elektro

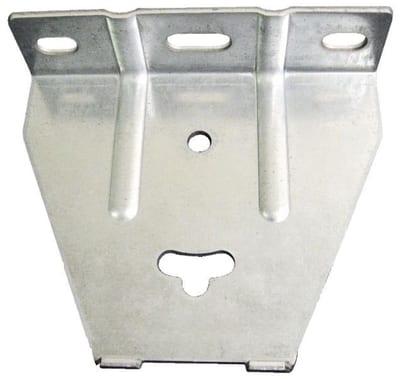

Ceiling Bracket TN White MP-150V
1352741
Elis Elektro

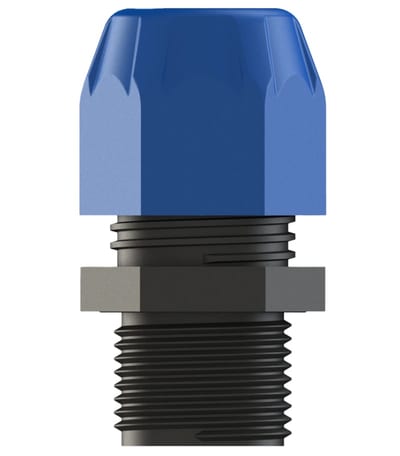

NIPPLE M16X1,5 (4,0-10,0) Ex-in (VEGA)
1255662
Elis Elektro

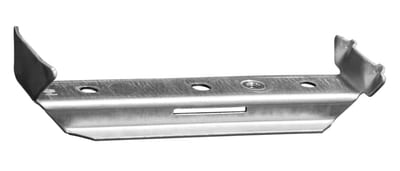

Elis Elektro MP-536S Combi Bracket 150 mm Sendzimir Galvanised Steel
Elis Elektro

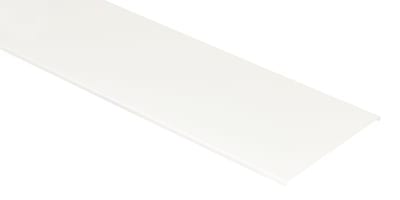

Cover 400mm White L=2M MP-460V
