Elis Elektro

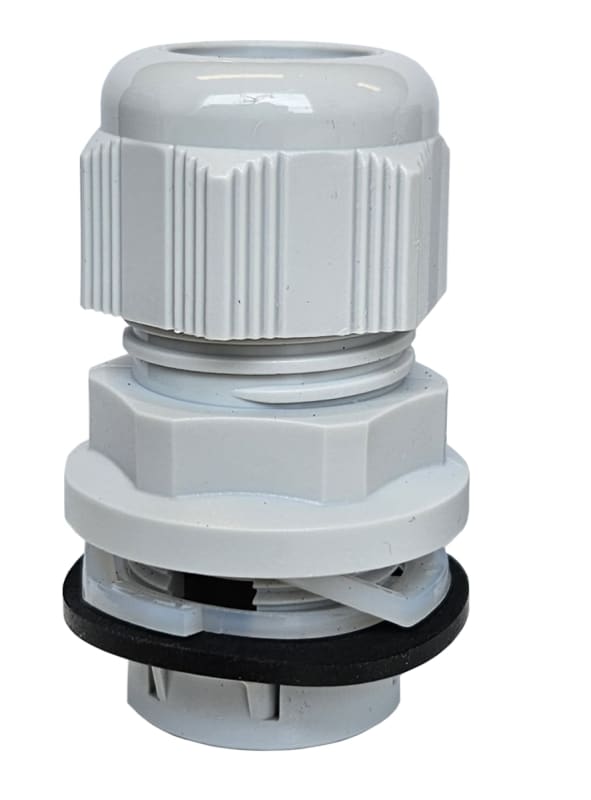

Elis Snap-in nipple M25 (8-17) grey
Part number1255033EAN / GTIN7070613073664HS code7412.20
Electrical Components
Cable Glands
MOQ:1
Pricing
Request a quote
We reply within 24 hours
Product Description
Elis Elektro 1255033 Elis Snap-in nipple M25 (8-17) grey.
Technical Specifications
- Manufacturer part number (MPN)
- 1255033
- Sales unit
- pcs
- Package quantity
- 25 pcs
- EL number
- 1255033
- EAN / GTIN
- 7070613073664
- ETIM class
- EC000441 - Cable gland
- CE marked
- Yes
- REACH relevant
- No
- Country of origin
- Turkey
- HS code
- 74122000
- Base unit
- pcs
- Price unit
- pcs
- Product height
- 60 mm
- Product width
- 30 mm
- Product length / depth
- 30 mm
- Net weight
- 24 g
- Product volume
- 0.054 dm³
- Price units per base unit
- 1
- Suitable for cable diameter (mm)
- 8 to 17
- Nominal thread size metric/PG
- 20
- Wrench width (mm)
- 29
- RAL-number
- 7001
- Working temperature (°C)
- -20 to 100
- With strain relief
- Yes
- Bend radius protection/trumpet flare
- Yes
- Snapping in opening
- Yes
- Separable screw gland
- Yes
- Glass-fibre reinforced
- No
- Halogen free
- No
- Shock resistant
- No
- Screened
- No
- EMC-version
- No
- With locknut
- No
- Multi seal area
- No
- Flat cable coupling
- No
- Suitable for armoured cable
- No
- Connection type to housing
- Click in mounting
- For wall thickness
- 0.5–4 mm
- Thread type
- Metric
- Hexagon angular dimension
- 27.5 mm
- Material
- Plastic
- Material quality
- Polyamide (PA)
- Surface protection
- Untreated
- Degree of protection (IP)
- IP68
- Type of sealing
- Cut-out ring
- Operating temperature
- -20–100 °C
- For Ex-zone gas
- None
- For Ex-zone dust
- None
- For armoured cable
- No
- Colour
- Grey
Standards & Compliance
- HS Code
- 7412.20
Cross References
- 7070613073664
Product Documentation
Document preview: Elis Snap-in nipple M25 (8-17) grey (1255033) — Data Sheet (OEM, Norwegian)
More from Elis Elektro
Elis Elektro

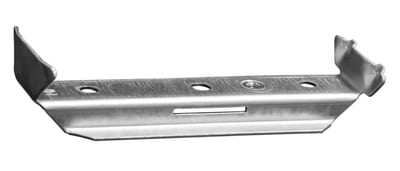

Elis Elektro Sendz Combi Bracket 400 mm
MP-566S
Elis Elektro

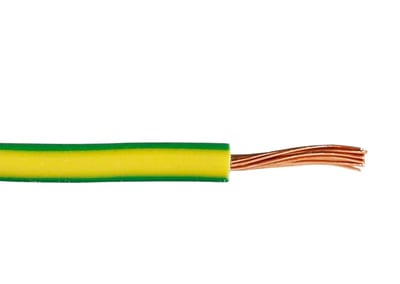

H07 V-K 50 mm² G/G (1002816)
