Elis Elektro

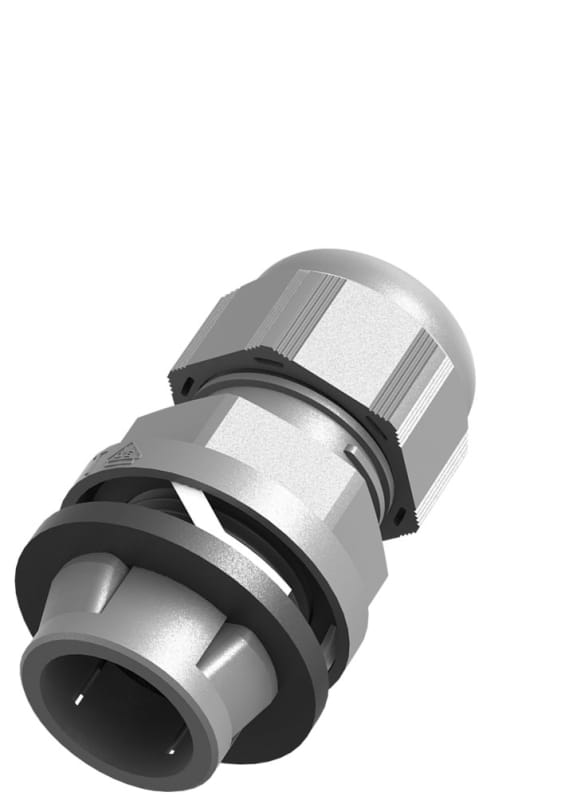

Elis Snap-in nipple M20 (7-13) grey
Part number1255032EAN / GTIN7070613073589HS code7412.20
Electrical Components
Cable Glands
MOQ:1
Pricing
Request a quote
We reply within 24 hours
Product Description
Elis Elektro 1255032 Elis Snap-in nipple M20 (7-13) grey.
Technical Specifications
- Manufacturer part number (MPN)
- 1255032
- Sales unit
- pcs
- Package quantity
- 50 pcs
- EL number
- 1255032
- EAN / GTIN
- 7070613073589
- ETIM class
- EC000441 - Cable gland
- CE marked
- Yes
- REACH relevant
- No
- Country of origin
- Turkey
- HS code
- 74122000
- Base unit
- pcs
- Price unit
- pcs
- Product height
- 55 mm
- Product width
- 30 mm
- Product length / depth
- 30 mm
- Net weight
- 18 g
- Product volume
- 0.0495 dm³
- Price units per base unit
- 1
- Hexagon angular dimension (mm)
- 27.5
- Suitable for cable diameter (mm)
- 7 to 13
- Nominal thread size metric/PG
- 20
- Wrench width (mm)
- 24
- RAL-number
- 7001
- Working temperature (°C)
- -20 to 100
- With strain relief
- Yes
- Bend radius protection/trumpet flare
- Yes
- Snapping in opening
- Yes
- Separable screw gland
- Yes
- Glass-fibre reinforced
- No
- Halogen free
- No
- Shock resistant
- No
- Screened
- No
- EMC-version
- No
- With locknut
- No
- Multi seal area
- No
- Flat cable coupling
- No
- Suitable for armoured cable
- No
- Connection type to housing
- Click in mounting
- For wall thickness
- 0.5–4 mm
- Thread type
- Metric
- Material
- Plastic
- Material quality
- Polyamide (PA)
- Surface protection
- Untreated
- Degree of protection (IP)
- IP68
- Type of sealing
- Cut-out ring
- Operating temperature
- -20–100 °C
- For Ex-zone gas
- None
- For Ex-zone dust
- None
- For armoured cable
- No
- Colour
- Grey
Standards & Compliance
- HS Code
- 7412.20
Cross References
- 7070613073589
Product Documentation
Document preview: Elis Snap-in nipple M20 (7-13) grey (1255032) — Data Sheet (OEM, Norwegian)
More from Elis Elektro
Elis Elektro
Fire-resistant Fire Alarm Cable Green m
1004060
Elis Elektro
Universalbrikke Acid-resistant
MP-731R
Elis Elektro
Elis Elektro Rapid Joint Gel-Filled Cable Joint IP68 L6
1250456
Elis Elektro

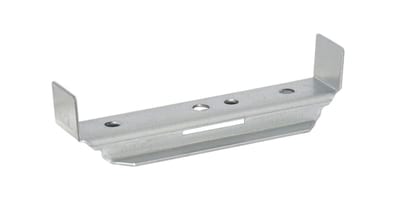

Bearing bracket 200 Sendz
