Elis Elektro

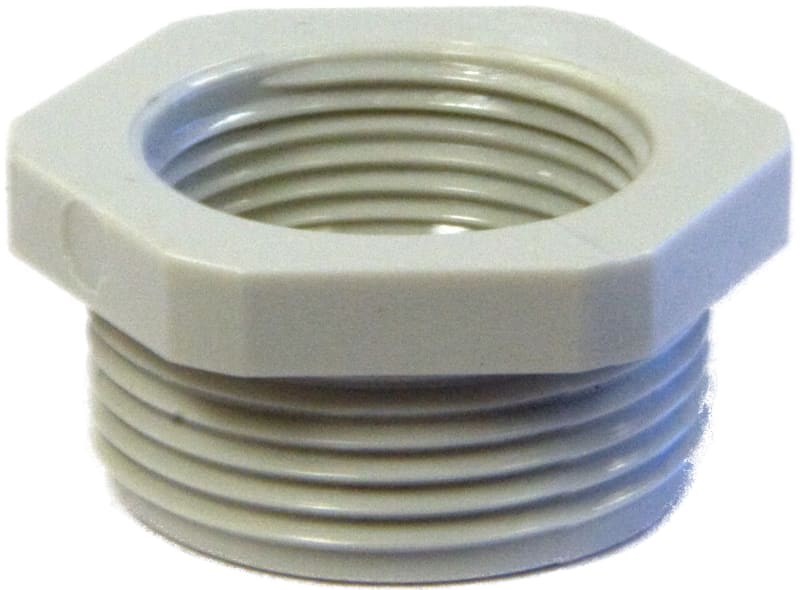

Reducer M63-M50 Polyamid
Part number1254799EAN / GTIN7070613006570HS code3917.40
Electrical Components
Cable Glands
MOQ:1
Pricing
Request a quote
We reply within 24 hours
Product Description
Elis Elektro 1254799 Reducer M63-M50 Polyamid.
Technical Specifications
- Manufacturer part number (MPN)
- 1254799
- Sales unit
- pcs
- Package quantity
- 10 pcs
- EL number
- 1254799
- EAN / GTIN
- 7070613006570
- ETIM class
- EC000441 - Cable gland
- CE marked
- Yes
- REACH relevant
- No
- Country of origin
- Germany
- HS code
- 39174000
- Base unit
- pcs
- Price unit
- pcs
- Product height
- 21 mm
- Product width
- 70 mm
- Product length / depth
- 70 mm
- Net weight
- 35 g
- Product volume
- 0.1029 dm³
- Price units per base unit
- 1
- Hexagon angular dimension (mm)
- 70
- Suitable for cable diameter (mm)
- 0 to 0
- Nominal thread size metric/PG
- 63
- Wrench width (mm)
- 70
- RAL-number
- 7035
- Pitch thread (mm)
- 1.5
- Thread length (mm)
- 15
- Working temperature (°C)
- -40 to 135
- Halogen free
- Yes
- Glass-fibre reinforced
- No
- Shock resistant
- No
- With strain relief
- No
- Screened
- No
- EMC-version
- No
- With locknut
- No
- Bend radius protection/trumpet flare
- No
- Snapping in opening
- No
- Multi seal area
- No
- Flat cable coupling
- No
- Separable screw gland
- No
- Explosion-tested version
- No
- Suitable for armoured cable
- No
- Connection type to housing
- Screwing
- Thread type
- Metric
- Material
- Plastic
- Material quality
- Polyamide (PA)
- Surface protection
- Untreated
- Degree of protection (IP)
- IP68
- Operating temperature
- -40–135 °C
- For Ex-zone gas
- None
- For armoured cable
- No
- Colour
- Grey
Standards & Compliance
- HS Code
- 3917.40
Cross References
- 7070613006570
Product Documentation
Document preview: Reducer M63-M50 Polyamid (1254799) — Data Sheet (OEM, Norwegian)
