Elis Elektro

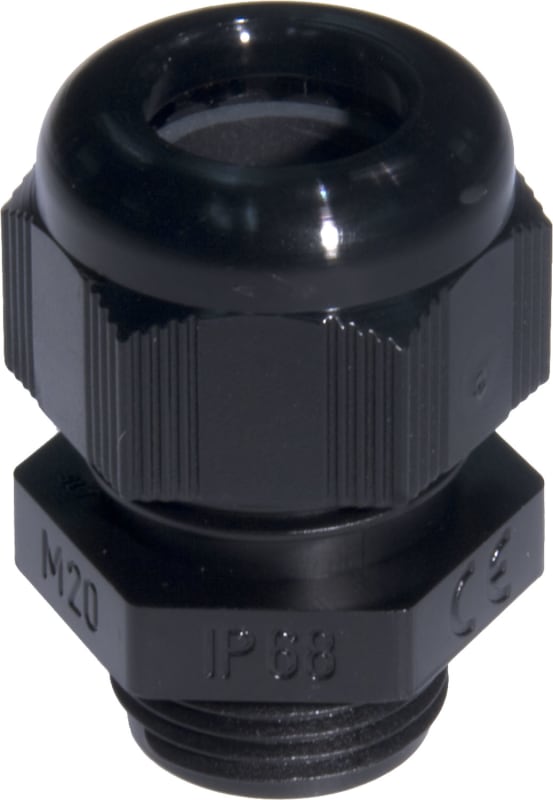

Nipple SCHL-TEC M20 5-12 Black
Part number1254749EAN / GTIN7070613014469HS code8544.11
Electrical Components
Cable Glands
MOQ:1
Pricing
Request a quote
We reply within 24 hours
Product Description
Elis Elektro 1254749 Nipple SCHL-TEC M20 5-12 Black.
Technical Specifications
- Manufacturer part number (MPN)
- 1254749
- EAN / GTIN
- 7070613014469
- Sales unit
- pcs
- Package quantity
- 50 pcs
- EL number
- 1254749
- ETIM class
- EC000441 - Cable gland
- CE marked
- Yes
- REACH relevant
- No
- Country of origin
- France
- HS code
- 39174000
- Base unit
- pcs
- Price unit
- pcs
- Product height
- 40 mm
- Product width
- 24 mm
- Product length / depth
- 24 mm
- Net weight
- 10 g
- Product volume
- 0.02304 dm³
- Price units per base unit
- 1
- Hexagon angular dimension (mm)
- 24
- Suitable for cable diameter (mm)
- 5 to 12
- Nominal thread size metric/PG
- 20
- Wrench width (mm)
- 24
- RAL-number
- 9001
- Pitch thread (mm)
- 1.5
- Thread length (mm)
- 10
- Working temperature (°C)
- -40 to 100
- Halogen free
- Yes
- With strain relief
- Yes
- Glass-fibre reinforced
- No
- Shock resistant
- No
- Screened
- No
- EMC-version
- No
- With locknut
- No
- Bend radius protection/trumpet flare
- No
- Snapping in opening
- No
- Multi seal area
- No
- Flat cable coupling
- No
- Separable screw gland
- No
- Explosion-tested version
- No
- Suitable for armoured cable
- No
- Connection type to housing
- Screwing
- Thread type
- Metric
- Material
- Plastic
- Material quality
- Polyamide (PA)
- Surface protection
- Untreated
- Degree of protection (IP)
- IP68
- Operating temperature
- -40–100 °C
- For Ex-zone gas
- None
- For Ex-zone dust
- None
- For armoured cable
- No
- Colour
- Black
Standards & Compliance
- HS Code
- 8544.11
Cross References
- EAN 7070613014469
- SAP 1200793861
- Code 84006381
Product Documentation
Document preview: Nipple SCHL-TEC M20 5-12 Black (1254749) — Data Sheet (OEM, Norwegian)
