Elis Elektro
Elis ElastiSeal nipple M40 (5G50 mm²)
Part number1254225HS code7412.20
Electrical Components
Cable Glands
MOQ:1
Pricing
Request a quote
We reply within 24 hours
Product Description

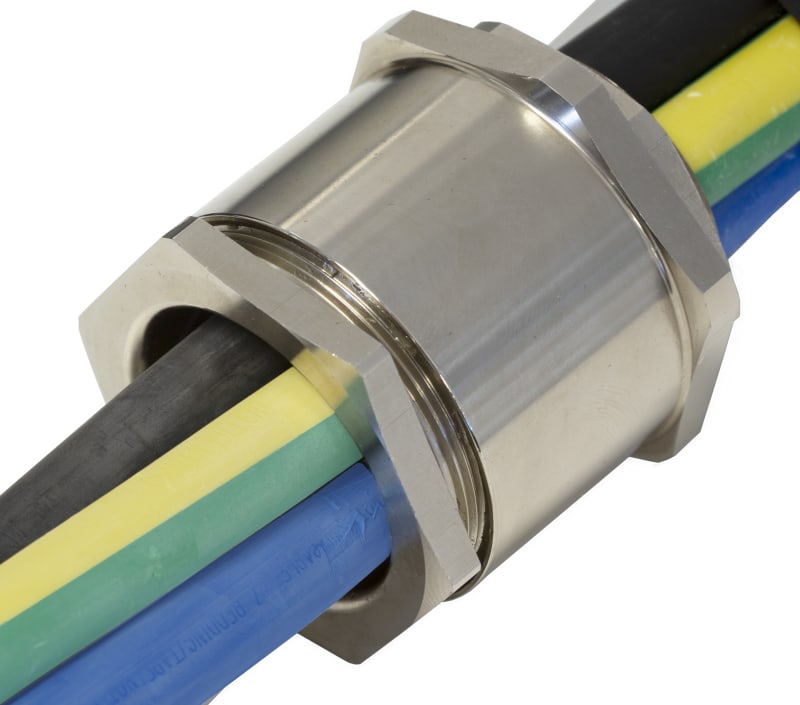

Elis Elektro 1254225 Elis ElastiSeal nipple M40 (5G50 mm²).
Technical Specifications
- Manufacturer part number (MPN)
- 1254225
- Sales unit
- pcs
- Package quantity
- 24 pcs
- Thread size
- M40
- Connection type to housing
- Screwing
- Pressure-compensating
- No
- Thread type
- Metric
- Nominal thread size metric/PG
- 40
- Pitch thread
- 1.5 mm
- Thread length
- 9 mm
- Wrench width
- 51 mm
- Hexagon angular dimension
- 61 mm
- Suitable for cable diameter
- 13.5 mm
- Material
- Metal
- Material quality
- Brass
- Surface protection
- Nickel-plated
- Halogen free
- Yes
- Glass-fibre reinforced
- No
- Degree of protection (IP)
- IP67
- Shock resistant
- Yes
- Bend radius protection/trumpet flare
- No
- With locknut
- No
- Snapping in opening
- Yes
- Multi seal area
- No
- Flat cable coupling
- No
- With strain relief
- Yes
- Separable screw gland
- No
- Operating temperature
- -20–80 °C
- Explosion-tested version
- No
- For armoured cable
- No
- EMC-version
- No
- Screened
- No
- Material sealing
- NBR (nitrile rubber)
- Colour
- Brass
- Country of origin
- Türkiye
Standards & Compliance
- HS Code
- 7412.20
Cross References
- 7070613073701
Product Documentation
Document preview: Elis ElastiSeal nipple M40 (5G50 mm²) (1254225) — Specification sheet
