Elis Elektro
Nipple WADI-TEC M12 3-6
Part number12 502 30EAN / GTIN7070613004286HS code7412.20
Electrical Components
Cable Glands
MOQ:1
Pricing
Request a quote
We reply within 24 hours
Product Description

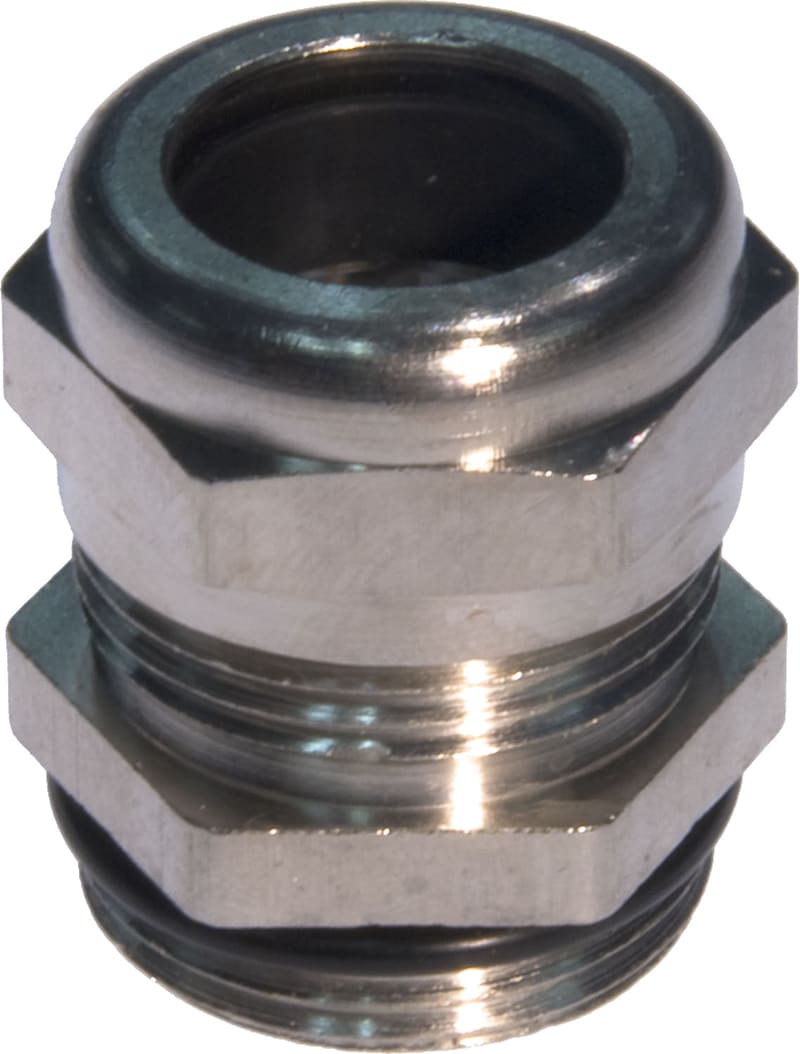

Elis Elektro 12 502 30 Nipple WADI-TEC M12 3-6.
Technical Specifications
- Manufacturer part number (MPN)
- 12 502 30
- EAN / GTIN
- 7070613004286
- Sales unit
- pcs
- Package quantity
- 50 pcs
- Thread size
- M12
- Connection type to housing
- Screwing
- Thread type
- Metric
- Nominal thread size metric/PG
- 12
- Pitch thread
- 1.5 mm
- Thread length
- 7 mm
- Wrench width
- 14 mm
- Hexagon angular dimension
- 14 mm
- Suitable for cable diameter
- 3–6 mm
- Material
- Metal
- Material quality
- Brass
- Surface protection
- Nickel-plated
- Halogen free
- Yes
- Glass-fibre reinforced
- No
- Degree of protection (IP)
- IP68
- Shock resistant
- No
- Bend radius protection/trumpet flare
- No
- With locknut
- No
- Snapping in opening
- No
- Multi seal area
- No
- Flat cable coupling
- No
- With strain relief
- Yes
- Separable screw gland
- No
- Operating temperature
- -30–120 °C
- Explosion-tested version
- No
- For Ex-zone gas
- None
- For armoured cable
- No
- EMC-version
- No
- Screened
- No
- Country of origin
- France
Standards & Compliance
- HS Code
- 7412.20
Cross References
- EAN 7070613004286
- SAP 1200048149
- Code 81876273
Product Documentation
Document preview: Nipple WADI-TEC M12 3-6 (12 502 30) — Specification sheet
More from Elis Elektro
Elis Elektro

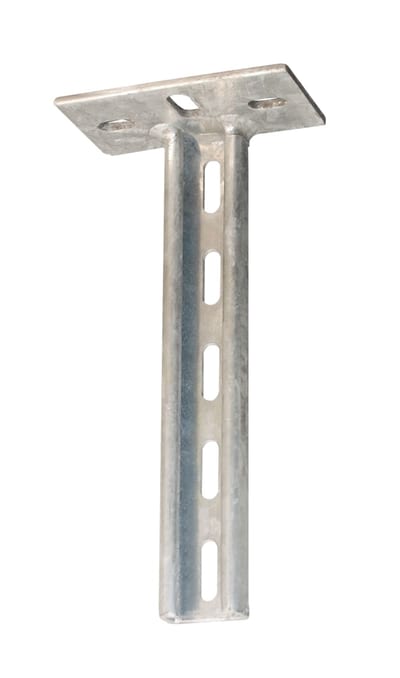

Ceiling Pendant MP-V Acid-resistant 0,25M
MP-964R
Elis Elektro

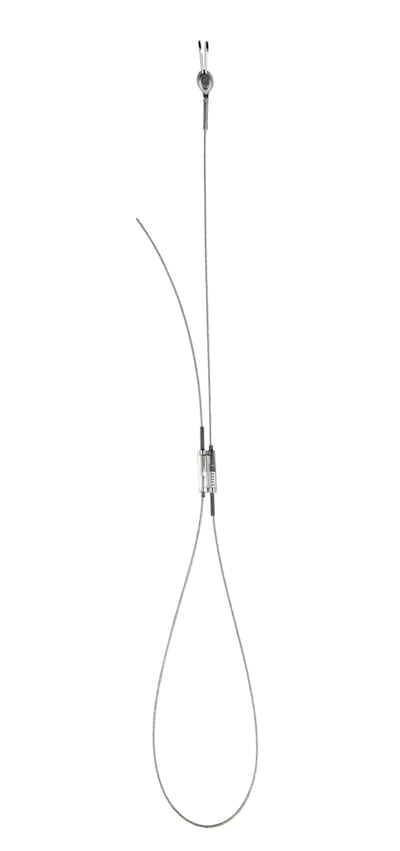

Wire Pendant with hook L=3M MP-707E
1352388
Elis Elektro
LIYCY 5X0,75 mm² (1001646)
Elis Elektro
Wall Trunking 100x65 mm, 3 m, Aluminium/White
TB1010-3
Elis Elektro
Sleeve 12mm Black Conform B
1821086
Elis Elektro

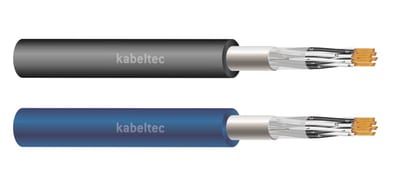

RE2Y(ST)Y 4X2X0,5 mm² Black
1002461
Elis Elektro

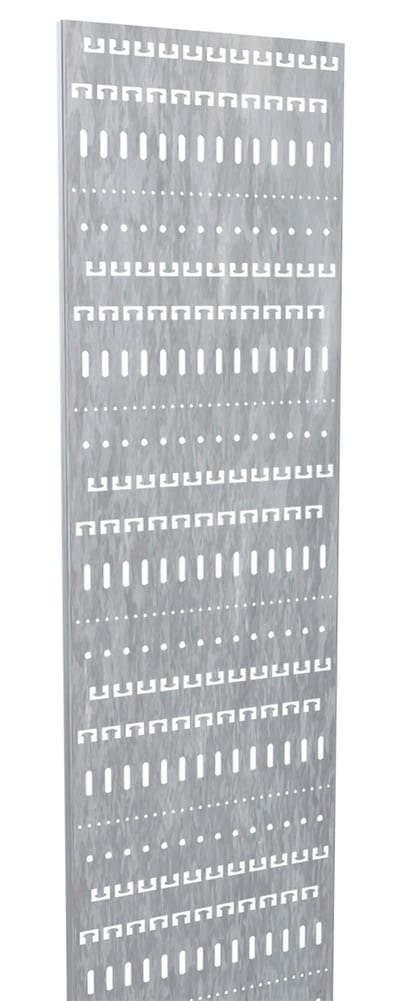

Mounting channel 300mm L=2M
