Elis Elektro
Nipple Standard PG11 8-10
Part number1250102EAN / GTIN7070613003456HS code7412.20
Electrical Components
Cable Glands
MOQ:1
Pricing
Request a quote
We reply within 24 hours
Product Description

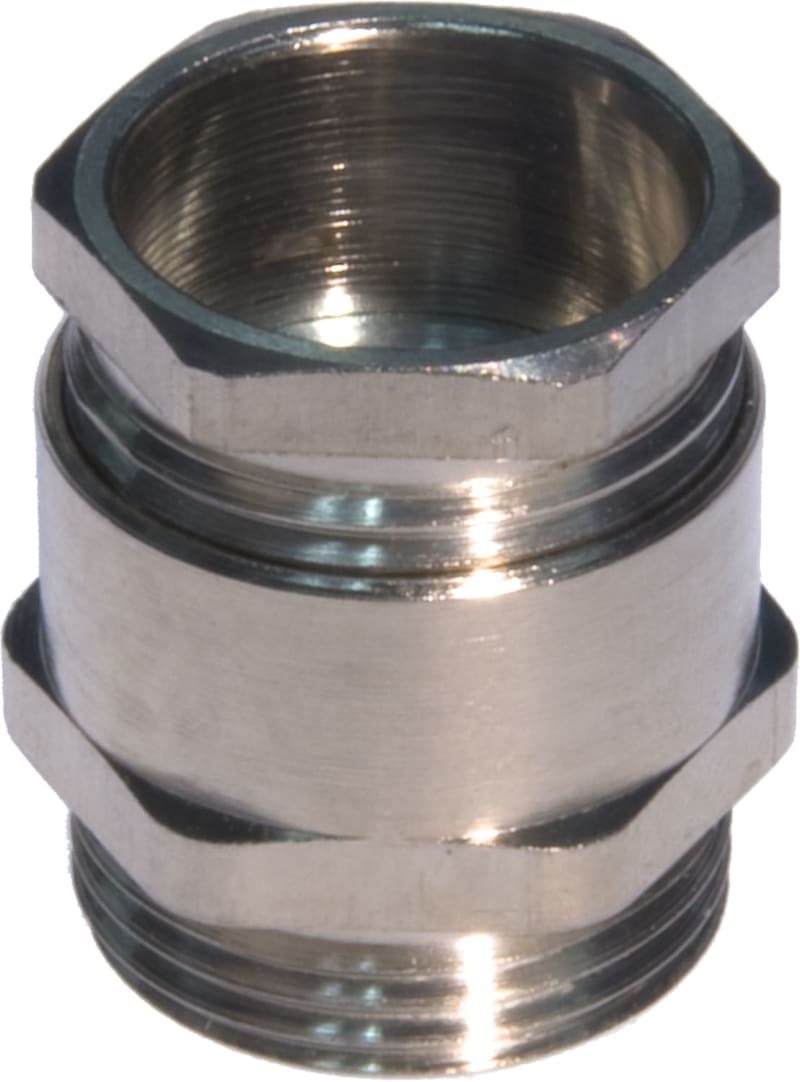

Elis Elektro 1250102 Nipple Standard PG11 8-10.
Technical Specifications
- Manufacturer part number (MPN)
- 1250102
- EAN / GTIN
- 7070613003456
- Sales unit
- pcs
- Package quantity
- 50 pcs
- Cable entry
- PG11
- Connection type to housing
- Screwing
- Thread type
- PG
- Nominal thread size metric/PG
- 11
- Pitch thread
- 1.5 mm
- Thread length
- 6 mm
- Wrench width
- 18 mm
- Hexagon angular dimension
- 20 mm
- Suitable for cable diameter
- 8–11 mm
- Material
- Metal
- Material quality
- Brass
- Surface protection
- Nickel-plated
- Halogen free
- Yes
- Glass-fibre reinforced
- No
- Degree of protection (IP)
- IP65
- Shock resistant
- No
- Bend radius protection/trumpet flare
- No
- With locknut
- No
- Multi seal area
- No
- Flat cable coupling
- No
- With strain relief
- No
- Separable screw gland
- No
- Operating temperature
- -30–100 °C
- Explosion-tested version
- No
- For Ex-zone gas
- None
- For armoured cable
- No
- EMC-version
- No
- Screened
- No
- Country of origin
- France
Standards & Compliance
- HS Code
- 7412.20
Cross References
- EAN 7070613003456
- SAP 1200927327
- Code 84212305
Product Documentation
Document preview: Nipple Standard PG11 8-10 (1250102) — Specification sheet
