Elis Elektro

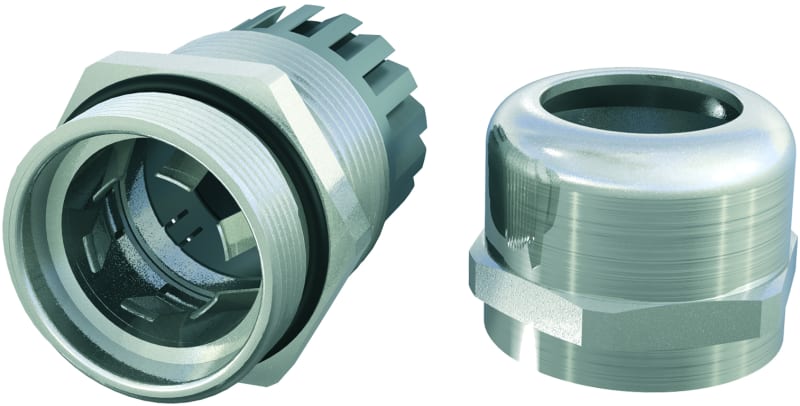

Nipple ELIS EMC M20 6-12
Part number1249252EAN / GTIN7070613063894HS code7412.20
Electrical Components
Cable Glands
MOQ:1
Pricing
Request a quote
We reply within 24 hours
Product Description
Elis Elektro 1249252 Nipple ELIS EMC M20 6-12.
Technical Specifications
- Manufacturer part number (MPN)
- 1249252
- EAN / GTIN
- 7070613063894
- Sales unit
- pcs
- Package quantity
- 50 pcs
- EL number
- 1249252
- ETIM class
- EC000441 - Cable gland
- CE marked
- Yes
- REACH relevant
- No
- Country of origin
- Turkey
- HS code
- 74122000
- Base unit
- pcs
- Price unit
- pcs
- Product height
- 20 mm
- Product width
- 20 mm
- Product length / depth
- 33 mm
- Net weight
- 32 g
- Product volume
- 0.0132 dm³
- Price units per base unit
- 1
- Hexagon angular dimension (mm)
- 22
- Suitable for cable diameter (mm)
- 6 to 12
- Nominal thread size metric/PG
- 20
- Wrench width (mm)
- 22
- Pitch thread (mm)
- 1.5
- Thread length (mm)
- 8
- Working temperature (°C)
- -40 to 100
- Halogen free
- Yes
- With strain relief
- Yes
- EMC-version
- Yes
- Snapping in opening
- Yes
- Glass-fibre reinforced
- No
- Shock resistant
- No
- Screened
- No
- With locknut
- No
- Bend radius protection/trumpet flare
- No
- Multi seal area
- No
- Flat cable coupling
- No
- Separable screw gland
- No
- Explosion-tested version
- No
- Suitable for armoured cable
- No
- Connection type to housing
- Screwing
- Thread type
- Metric
- Material
- Metal
- Material quality
- Brass
- Surface protection
- Nickel-plated
- Degree of protection (IP)
- IP68
- Operating temperature
- -40–100 °C
- For Ex-zone gas
- None
- For armoured cable
- No
- Material sealing
- NBR (nitrile rubber)
Standards & Compliance
- HS Code
- 7412.20
Cross References
- EAN 7070613063894
- SAP 1200927324
- Code 84212313
Product Documentation
Document preview: Nipple ELIS EMC M20 6-12 (1249252) — Data Sheet (OEM, Norwegian)
More from Elis Elektro
Elis Elektro

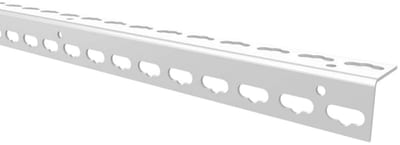

Angle Profile 35X35 White 3M
MP-262V
Elis Elektro

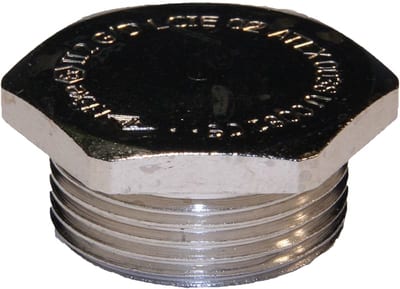

Blanking Plug M25 EEXE Brass
1254903
Elis Elektro

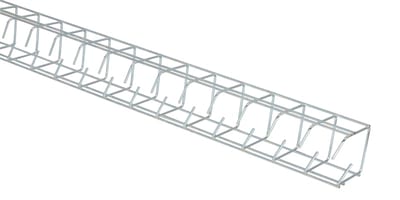

Wire Mesh Tray m/lock MP-773R 75X75MM L=3000M
1352197
Elis Elektro

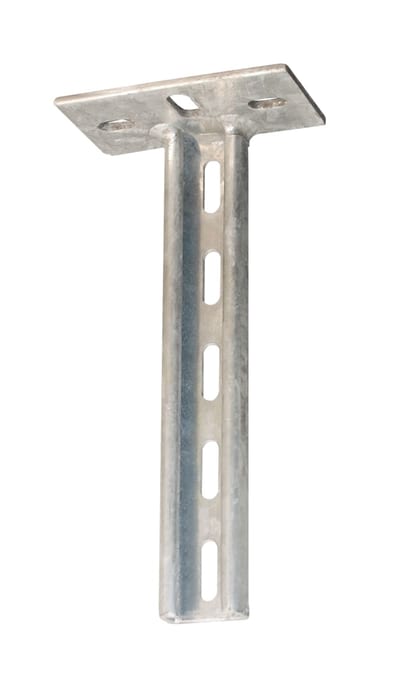

Ceiling Pendant MP-V Hot-dip galvanised 1M
MP-968Z
Elis Elektro

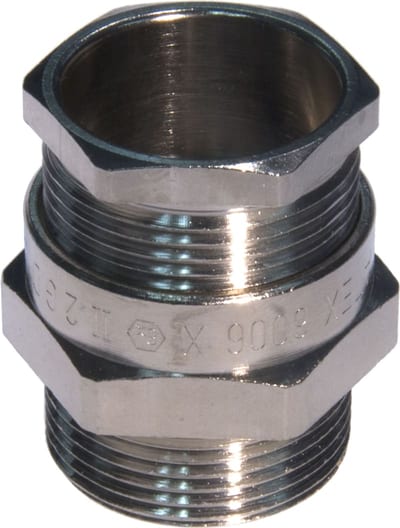

Nipple EX/EMC PG21 15-18
1249205
Elis Elektro
FLEX-OZ-H 2X2,5 mm² Unshielded Halogen-free
1003331
Elis Elektro

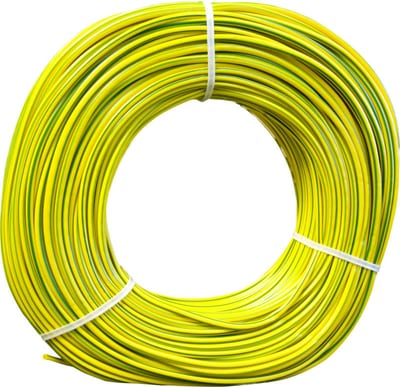

Sleeve PVC Yellow/Green 30mm
1800200
Elis Elektro

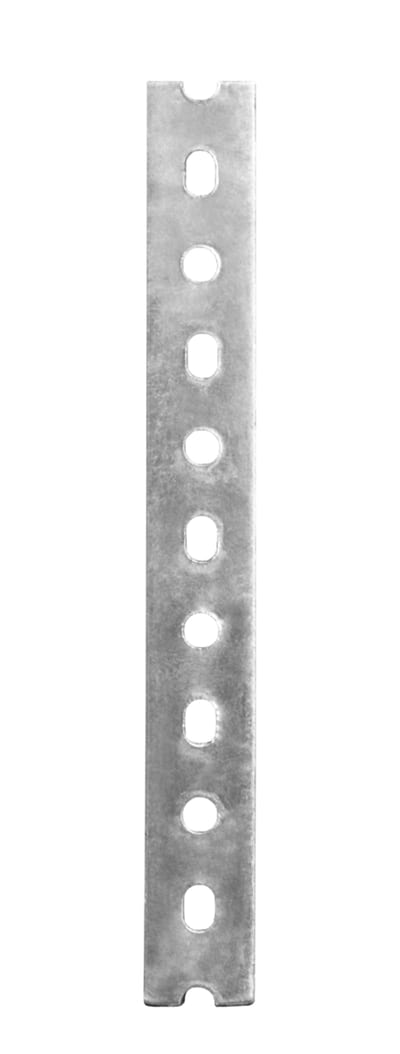

Joint pendant rail 250mm White
