Elis Elektro

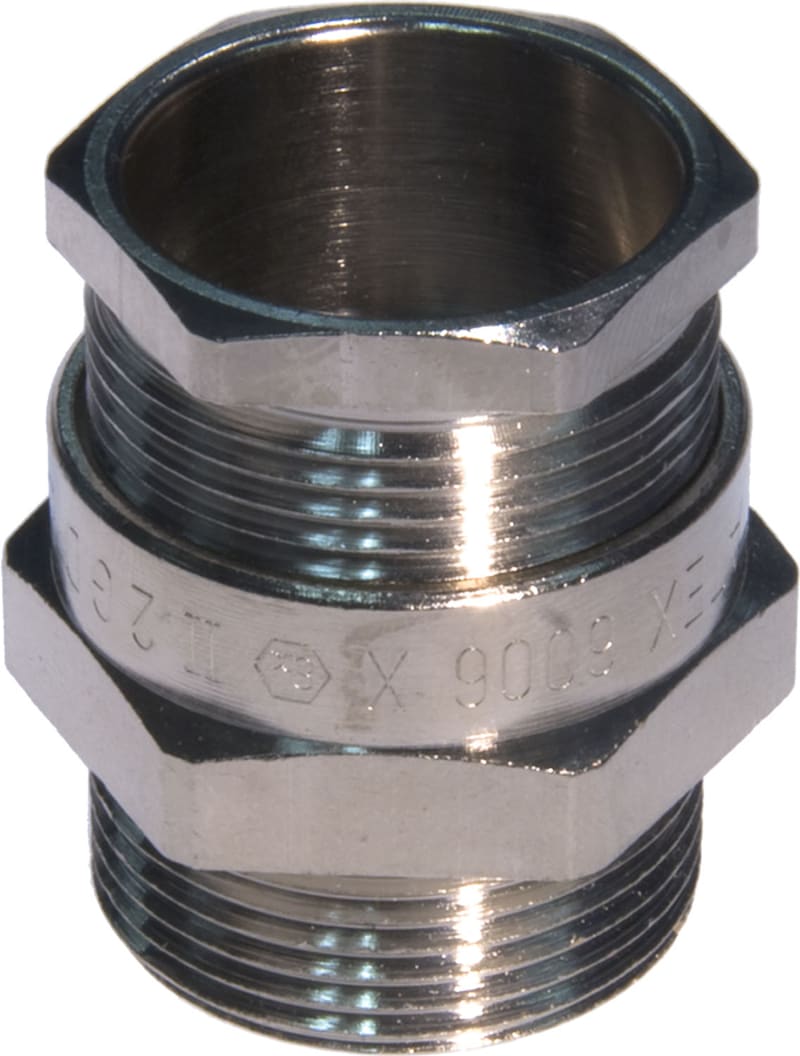

Nipple EX/EMC PG11 8-10
Part number1249202HS code7412.20
Electrical Components
Cable Glands
MOQ:1
Pricing
Request a quote
We reply within 24 hours
Product Description
Elis Elektro 1249202 Nipple EX/EMC PG11 8-10.
Technical Specifications
- Manufacturer part number (MPN)
- 1249202
- Sales unit
- pcs
- Package quantity
- 50 pcs
- Cable entry
- PG11
- Connection type to housing
- Screwing
- For wall thickness
- 0.1–7.5 mm
- Thread type
- PG
- Nominal thread size metric/PG
- 11
- Pitch thread
- 1.5 mm
- Thread length
- 12 mm
- Wrench width
- 18 mm
- Hexagon angular dimension
- 22 mm
- Suitable for cable diameter
- 8–10 mm
- Material
- Metal
- Material quality
- Brass
- Surface protection
- Nickel-plated
- Halogen free
- Yes
- Glass-fibre reinforced
- No
- Degree of protection (IP)
- IP66
- Shock resistant
- No
- Bend radius protection/trumpet flare
- No
- With locknut
- No
- Snapping in opening
- No
- Multi seal area
- No
- Flat cable coupling
- No
- With strain relief
- No
- Separable screw gland
- No
- Operating temperature
- -20–55 °C
- Explosion-tested version
- Yes
- For Ex-zone gas
- 2
- For armoured cable
- No
- EMC-version
- Yes
- Screened
- No
- Material sealing
- CR (neoprene)
- Country of origin
- Germany
Standards & Compliance
- HS Code
- 7412.20
Cross References
- 7070613002596
Product Documentation
Document preview: Nipple EX/EMC PG11 8-10 (1249202) — Specification sheet
More from Elis Elektro
Elis Elektro

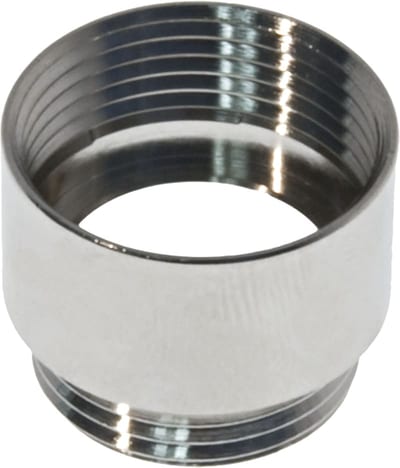

Extension M50/M63 Brass
12 548 78
Elis Elektro

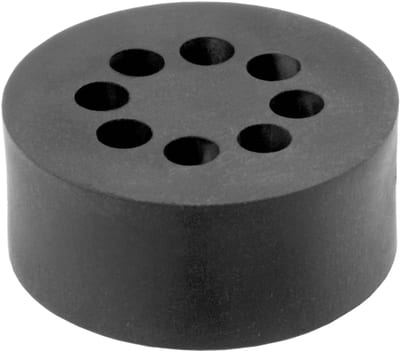

Multiple Cable Gland Gasket M32/PG29 4X6MM
Elis Elektro
AL/CU 25-50/16 Blue/GG 345/800
1210411
Elis Elektro

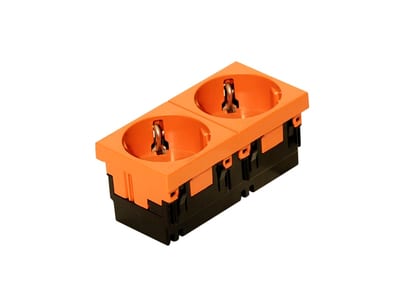

230V dobl f/ floor box Orange UST45-O 2
