Straight Nipple SEM/M32 for NW 29 Conduit
Pricing
Request a quote
We reply within 24 hours
Product Description
Elis Elektro 1212677 straight nipple (conduit fitting) SEM/M32 for NW 29 flexible conduit.
Technical Specifications
- Manufacturer part number (MPN)
- 1212677
- Sales unit
- pcs
- Package quantity
- 20 pcs
- Colour
- Black
- Model
- Straight
- Type of connection
- Snap connection
- Thread length
- 15 mm
- Total length
- 49.5 mm
- Construction type
- External thread
- Operating temperature
- -40–120 °C
- Revolving thread
- No
- Lowest inner diameter hose
- 25.5 mm
- Total height
- 52 mm
- Approved in combination with protective conduit UR
- No
- One-piece
- No
- Max. outer diameter hose
- 49.5 mm
- Degree of protection (IP)
- IP50
- Thread connection size
- M32 x 1.5
- With integrated holder
- Yes
- Material screw gland
- Polyamide (PA)
- Country of origin
- Germany
Standards & Compliance
- HS Code
- 7412.20
Cross References
- 7070613001735
Product Documentation
More from Elis Elektro
Elis Elektro

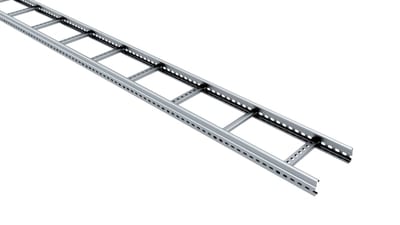

Cable ladder TS 400 Sendz 6M
MP-154S
Elis Elektro

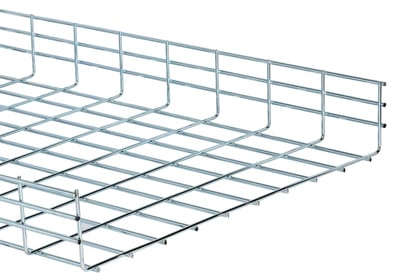

Wire Mesh Tray 600 H110 SS L=2,5M MP-727HR
1354126
Elis Elektro

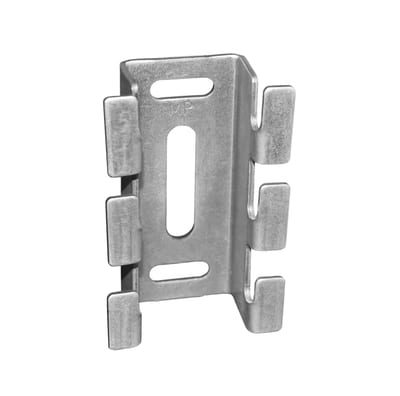

Wall bracket Wire Mesh Tray White
MP-735V
Elis Elektro
Cable ladder S 200 Sendz 6M
MP-102S6
Elis Elektro
Elis Elektro Cable Protection Bend Ø34 mm Steel, Round, 390 mm Length
2860343
Elis Elektro
Elis Elektro ÖPVC-JZ 5G16 mm² Number-Marked PVC Control Cable
1002163
Elis Elektro

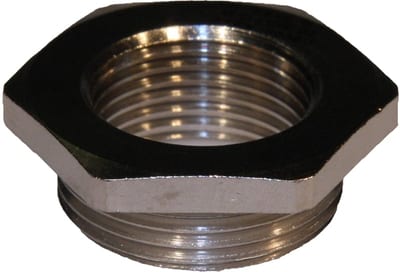

Reducer EEXE M63-M50 Brass
1254976
Elis Elektro

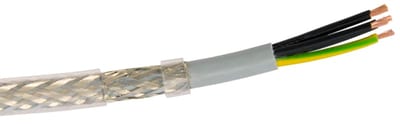

Elis Elektro ÖPVC-JZ-CY 5G16 mm² Copper-Shielded PVC Control Cable
