Elis Elektro

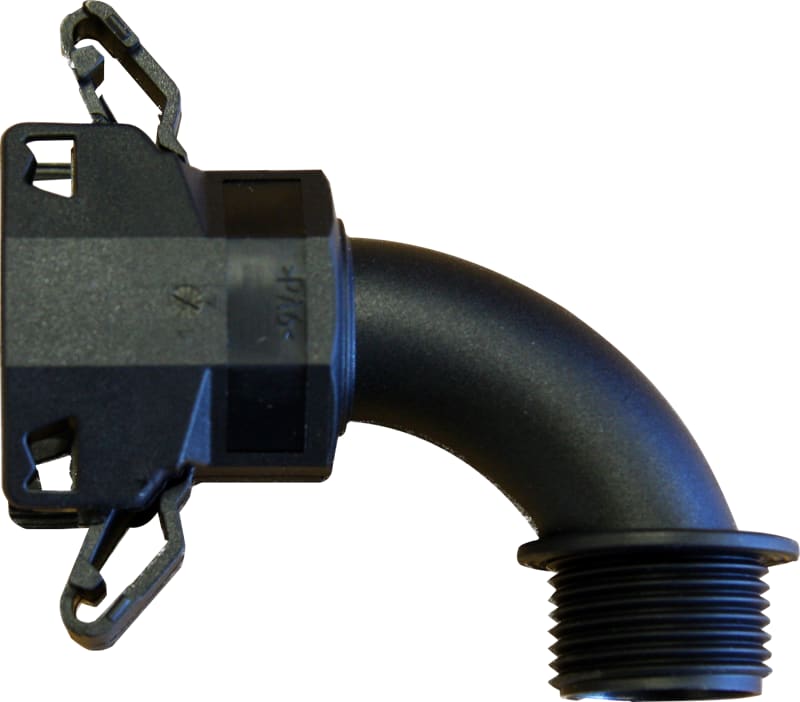

Nipple Angle SEM/W16 for NW17
Part numberL1091165EAN / GTIN7070613001438HS code7412.20
MOQ:1
Pricing
Request a quote
We reply within 24 hours
Product Description
Elis Elektro L1091165 Nipple Angle SEM/W16 for NW17.
Technical Specifications
- Manufacturer part number (MPN)
- L1091165
- EAN / GTIN
- 7070613001438
- Sales unit
- pcs
- Package quantity
- 25 pcs
- Colour
- Black
- Model
- 90°-elbow
- Type of connection
- Snap connection
- Thread length
- 13 mm
- Total length
- 65.8 mm
- Construction type
- External thread
- Operating temperature
- -40–120 °C
- Revolving thread
- No
- Lowest inner diameter hose
- 17 mm
- Total height
- 57.5 mm
- Approved in combination with protective conduit UR
- No
- One-piece
- No
- Max. outer diameter hose
- 34.5 mm
- Degree of protection (IP)
- IP50
- Thread connection size
- PG16
- With integrated holder
- Yes
- Material screw gland
- Polyamide (PA)
- Country of origin
- Germany
Standards & Compliance
- HS Code
- 7412.20
Cross References
- EAN 7070613001438
- SAP 1000010378
- Code 8479017
Product Documentation
Document preview: Nipple Angle SEM/W16 for NW17 (L1091165) — Specification sheet
