Elis Elektro
Corrugated Conduit NW 22 10M
Part numberL1080224EAN / GTIN7070613001094HS code3917.31
Control & Automation
Conduit & Trunking
MOQ:1
Pricing
Request a quote
We reply within 24 hours
Product Description

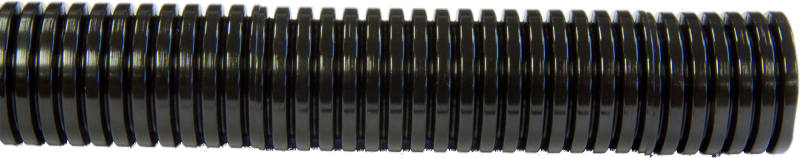

Elis Elektro L1080224 Corrugated conduit NW 22 10m.
Technical Specifications
- Manufacturer part number (MPN)
- L1080224
- EAN / GTIN
- 7070613001094
- Sales unit
- m
- Package quantity
- 10 m
- Colour
- Black
- Outer diameter
- 25.4 mm
- Oil resistant
- Yes
- UV resistant
- Yes
- Halogen free
- Yes
- Shape
- Round
- Inner diameter
- 21.3 mm
- Material quality
- Polyamide 6
- Operating temperature
- -40–120 °C
- Fire resistance according to UL94
- HB
- Bending radius, static
- 50 mm
- Sheathing material
- Polyamide (PA)
- Flame accelerating
- No
- Approved according to UR
- No
- Approved according to CSA
- No
- Material
- Polyamide (PA)
- Approved according to LUL/British Standard
- No
- Approved according to Lloyd's Register TA
- No
- Approved according to UTAC
- No
- Bending strength
- Flexible
- Inner width
- 21.3 mm
- Inner height
- 21.3 mm
- High conducting inner coating
- No
- Lengthwise slotted
- No
- Closable (two-part)
- No
- Approved according to DIN EN 61386-23
- No
- Approved according to NF F 16-101
- No
- Outer width
- 25.4 mm
- Outer height
- 25.4 mm
- With draw wire
- No
- Country of origin
- Germany
Standards & Compliance
- HS Code
- 3917.31
Cross References
- EAN 7070613001094
- SAP 1000061345
- Code 8919431
Product Documentation
Document preview: Corrugated Conduit NW 22 10M (L1080224) — Specification sheet
