Elis Elektro
Fire-resistant cable 4X2X0,8mm JE-H(St)
Part number1021699EAN / GTIN7070613073558HS code8544.42
Cables & Wiring
Single-Core Wires
MOQ:1
Pricing
Request a quote
We reply within 24 hours
Product Description

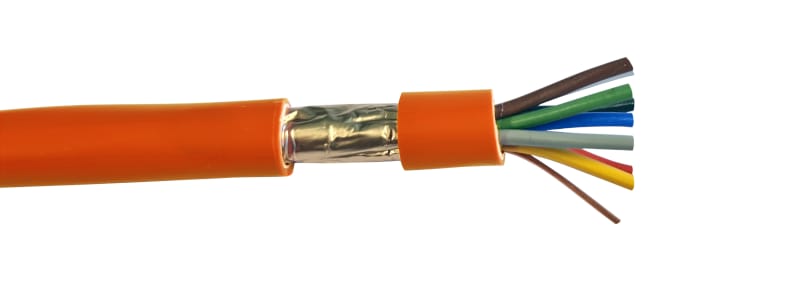

Elis Elektro 1021699 Fire-resistant cable 4x2x0,8mm JE-H(St)H E90 Orange.
Technical Specifications
- Manufacturer part number (MPN)
- 1021699
- EAN / GTIN
- 7070613073558
- HS code
- 8544.42
- Sales unit
- m
- Package quantity
- 500 m
- EL number
- 1021699
- ETIM class
- EC003248 - Power cable < 1 kV, for permanent installation
- CE marked
- Yes
- REACH relevant
- No
- Country of origin
- Turkey
- Base unit
- m
- Price unit
- m
- Product length / depth
- 1000 mm
- Net weight
- 130 g
- Price units per base unit
- 1
- Nominal voltage U (V)
- 225
- Nominal cross section conductor (mm²)
- 0.8
- Nominal voltage U0 (V)
- 225
- Nominal cross section conductor (AWG) (kcmil)
- 20
- Diameter conductor (mm)
- 0.8
- Number of strands per conductor
- 1
- Conductor resistance at 20 °C (Ohm/km)
- 73.2
- Cable width approximate (mm)
- 7.4
- Cable height approximate (mm)
- 7.4
- Number of cores
- 8
- Weight (kg/km)
- 130
- Outer diameter approximate (mm)
- 7.4
- Min. permitted bending radius, stationary application/permanent installation (mm)
- 66.6
- Max. permitted conductor temperature (°C)
- 70
- Permitted cable outer temperature during assembling/handling (°C)
- -5 to 50
- Permitted cable outer temperature after assembling without vibration (°C)
- -5 to 50
- Twisted cores
- Yes
- Screen
- Yes
- With protective conductor
- Yes
- Drain wire
- Yes
- Flame retardant according to IEC 60332-3-24 (Cat C)
- Yes
- Low smoke according to EN IEC 61034-2
- Yes
- Halogen free according to EN IEC 60754-2
- Yes
- Suitable as installation cable
- Yes
- Suitable for underground installation
- No
- Lead sheath
- No
- Radial water blocking cable
- No
- Certified for shipboard application
- No
- Certified as airport lighting cable
- No
- With rodent protection
- No
Standards & Compliance
- HS Code
- 8544.42
Cross References
- EAN 7070613073558
- SAP 1200827493
- Code 84015541
Product Documentation
Document preview: Fire-resistant cable 4x2x0,8mm JE-H(St) (1021699) — Data Sheet (OEM, Norwegian)
