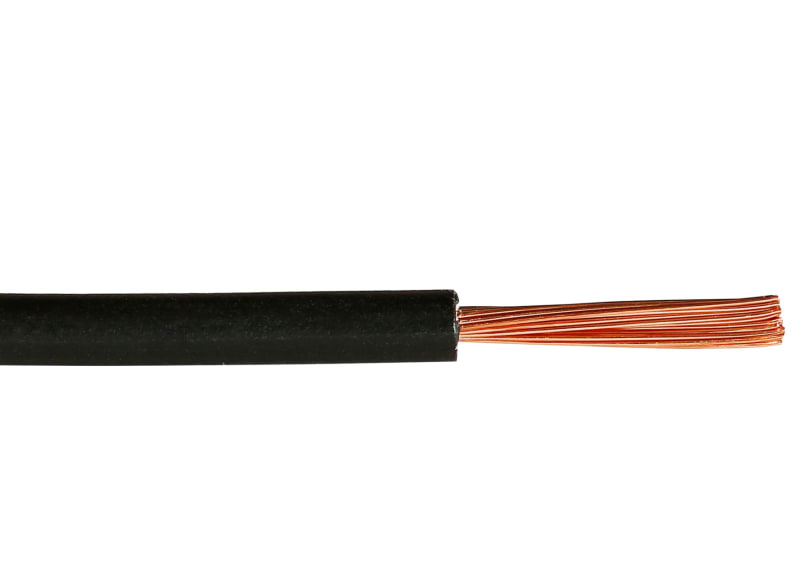

Elis Elektro H05Z-K 1.0 mm² Black Halogen-Free Wire, 2000 m Drum

Halogen-free flexible single-core installation wire H05Z-K, 1 mm² copper conductor with 2.6 mm outer diameter, rated 300/500 V and 90 °C maximum conductor temperature. Flame retardant to IEC 60332-1-2, suitable as an installation cable and supplied on a 2000 m drum for permanent fixed wiring. ETIM class EC003248, HS code 85441100, country of origin Germany.

Manufacturer part number (MPN)

1021642 Sales unit: m Package quantity: 2000 m EL number: 1021642 EAN / GTIN: 7070613073732 ETIM class: EC003248 - Power cable < 1 kV, for permanent installation CE marked: Yes REACH relevant: No Country of origin: Germany HS code: 85441100 Base unit: m Price unit: m Product length / depth: 1000 mm Net weight: 14 g Price units per base unit: 1 Nominal voltage U (V): 500 Nominal cross section conductor (mm²): 1 Nominal voltage U0 (V): 300 Nominal cross section conductor (AWG) (kcmil): 18 Cable width approximate (mm): 2.6 Cable height approximate (mm): 2.6 Number of cores: 1 Weight (kg/km): 14 Outer diameter approximate (mm): 2.6 Min. permitted bending radius, stationary application/permanent installation (mm): 6 Max. permitted conductor temperature (°C): 90 Permitted cable outer temperature during assembling/handling (°C): -40 to 90 Permitted cable outer temperature after assembling without vibration (°C): -40 to 90 Flame retardant according to IEC 60332-1-2: Yes Suitable as installation cable: Yes Twisted cores: No Screen: No With protective conductor: No Drain wire: No Radial water blocking cable: No Low temperature resistant according to EN 60811-504+505+506: No Oil resistant according to EN IEC 60811-404: No Certified for shipboard application: No Certified as airport lighting cable: No With rodent protection: No

HS Code

8544.49

• 7070613073732
