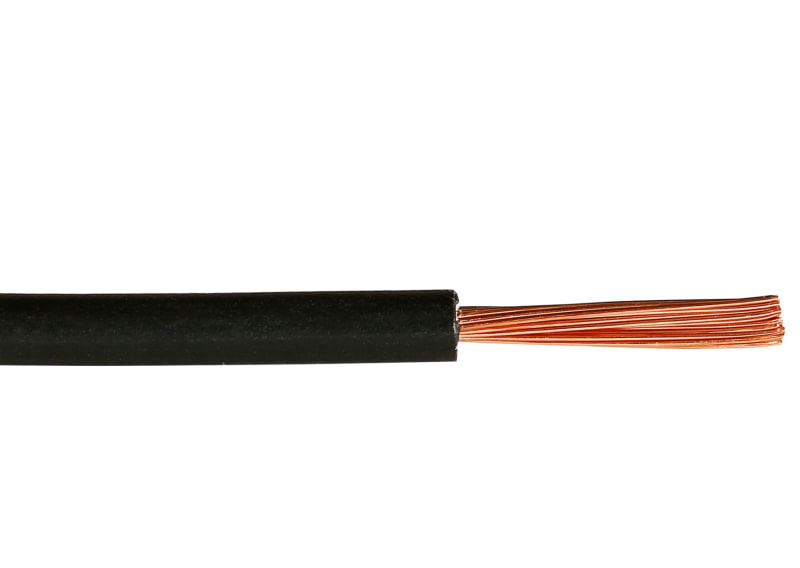

H07 Z-K 2,5 mm² Black Halogen-free 100M

Elis Elektro 1006580 H07 Z-K 2,5 mm² Black Halogen-free 100m.

Manufacturer part number (MPN)

1006580

Sales unit

m

Package quantity

100 m

EL number

1006580

EAN / GTIN

7070613012540

ETIM class

EC003248 - Power cable < 1 kV, for permanent installation

CE marked

Yes

REACH relevant

No

Country of origin

Germany

HS code

85441100

Base unit

m

Price unit

m

Product length / depth

1000 mm

Net weight

32 g

Price units per base unit

1

Nominal voltage U (V)

750

Nominal cross section conductor (mm²)

2.5

Nominal voltage U0 (V)

450

Nominal cross section conductor (AWG) (kcmil)

14

Diameter conductor (mm)

0

Cable width approximate (mm)

3.6

Cable height approximate (mm)

3.6

Number of cores

1

Weight (kg/km)

32

Outer diameter approximate (mm)

3.6

Min. permitted bending radius, stationary application/permanent installation (mm)

15

Max. permitted conductor temperature (°C)

90

Permitted cable outer temperature during assembling/handling (°C)

-40 to 90

Permitted cable outer temperature after assembling without vibration (°C)

-40 to 90

Flame retardant according to IEC 60332-1-2

Yes

Low smoke according to EN IEC 61034-2

Yes

Halogen free according to EN IEC 60754-1

Yes

Halogen free according to EN IEC 60754-2

Yes

Suitable as installation cable

Yes

Twisted cores

No

Screen

No

With protective conductor

No

Drain wire

No

Radial water blocking cable

No

Low temperature resistant according to EN 60811-504+505+506

No

Oil resistant according to EN IEC 60811-404

No

Certified for shipboard application

No

Certified as airport lighting cable

No

With rodent protection

No

HS Code

8544.49

• 7070613012540
