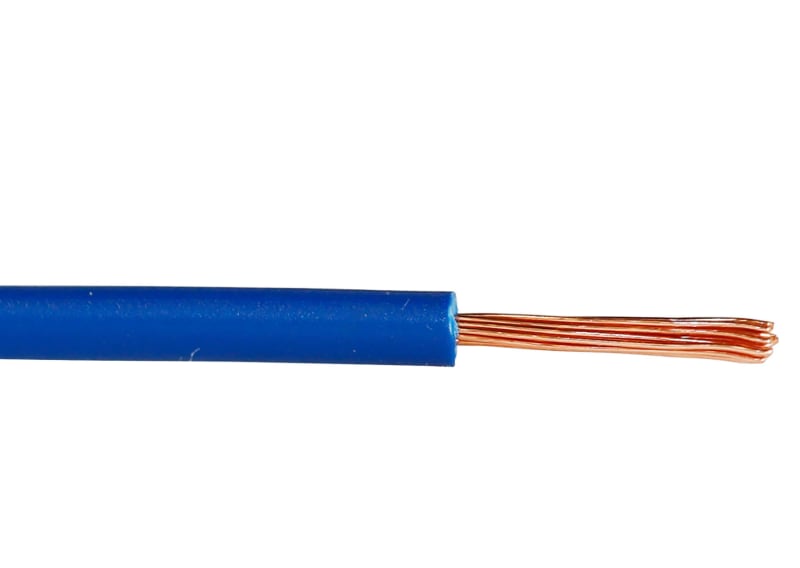

H05 Z-K 0,75 mm² Dark blue Halogen-free 100M
Pricing
Request a quote
We reply within 24 hours
Overview
Elis Elektro H05 Z-K 0,75 mm² Dark blue Halogen-free 100M (part number 1006519) is listed under Cables & Wiring / Single-Core Wires. Sales unit: m; Package quantity: 100 m; EL number: 1006519; CE marked: Yes; REACH relevant: No; Country of origin: Germany.
Technical Specifications
- Manufacturer part number (MPN)
- 1006519
- Sales unit
- m
- Package quantity
- 100 m
- EL number
- 1006519
- EAN / GTIN
- 7070613011703
- ETIM class
- EC003248 - Power cable < 1 kV, for permanent installation
- CE marked
- Yes
- REACH relevant
- No
- Country of origin
- Germany
- HS code
- 85441100
- Base unit
- m
- Price unit
- m
- Product length / depth
- 1000 mm
- Net weight
- 11 g
- Price units per base unit
- 1
- Nominal voltage U (V)
- 500
- Nominal cross section conductor (mm²)
- 0.75
- Nominal voltage U0 (V)
- 300
- Nominal cross section conductor (AWG) (kcmil)
- 18
- Diameter conductor (mm)
- 0
- Cable width approximate (mm)
- 2.4
- Cable height approximate (mm)
- 2.4
- Number of cores
- 1
- Weight (kg/km)
- 11
- Outer diameter approximate (mm)
- 2.4
- Min. permitted bending radius, stationary application/permanent installation (mm)
- 4.5
- Max. permitted conductor temperature (°C)
- 90
- Permitted cable outer temperature during assembling/handling (°C)
- -40 to 90
- Permitted cable outer temperature after assembling without vibration (°C)
- -40 to 90
- Flame retardant according to IEC 60332-1-2
- Yes
- Low smoke according to EN IEC 61034-2
- Yes
- Halogen free according to EN IEC 60754-1
- Yes
- Halogen free according to EN IEC 60754-2
- Yes
- Suitable as installation cable
- Yes
- Twisted cores
- No
- Screen
- No
- With protective conductor
- No
- Drain wire
- No
- Radial water blocking cable
- No
- Low temperature resistant according to EN 60811-504+505+506
- No
- Oil resistant according to EN IEC 60811-404
- No
- Certified for shipboard application
- No
- Certified as airport lighting cable
- No
- With rodent protection
- No
Standards & Compliance
- HS Code
- 8544.49
Cross References
- 7070613011703
Product Documentation
More from Elis Elektro
Elis Elektro
Bearing bracket inv 300-600 Sendz
MP-943S
Elis Elektro
Ceiling Bracket f/gj.rod M10 Sendz MP-920S
MP-920Z
Elis Elektro
SKK 1X10 mm² Black 50M reel
1003653
Elis Elektro
Sleeve 10mm Blue 10M SRG725
1821029
Elis Elektro
Elis Elektro Sendz Locking Plate Galvanised Steel
MP-914S
Elis Elektro
Nipple SCHL-TEC PG16 7-14
5308160
Elis Elektro
Fully Threaded rod M10 Els L=3M
MP-928E
Elis Elektro
Cable Tray perf 200mm Sendz 3M MP-3431S
