Elis Elektro
LIHCH 4X0,75 mm² Halogen-free
Part number1003579EAN / GTIN7070613072568HS code8544.11
Cables & Wiring
Control Cables
MOQ:1
Pricing
Request a quote
We reply within 24 hours
Product Description

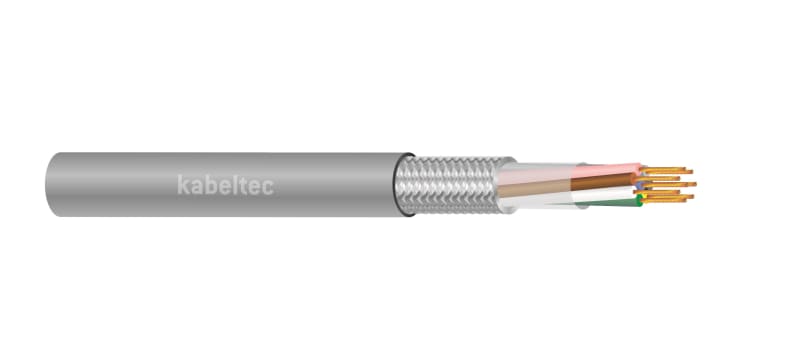

Elis Elektro 1003579 LIHCH 4x0,75 mm² Halogen-free.
Technical Specifications
- Manufacturer part number (MPN)
- 1003579
- EAN / GTIN
- 7070613072568
- Sales unit
- m
- Package quantity
- 500 m
- EL number
- 1003579
- ETIM class
- EC003250 - Power cable < 1 kV, for moving application
- CE marked
- Yes
- REACH relevant
- No
- Country of origin
- Turkey
- HS code
- 85441100
- Base unit
- m
- Price unit
- m
- Product length / depth
- 1000 mm
- Net weight
- 60 g
- Price units per base unit
- 1
- Nominal voltage U (V)
- 500
- Nominal cross section conductor (mm²)
- 0.75
- Nominal voltage U0 (V)
- 500
- Nominal cross section conductor (AWG) (kcmil)
- 20
- Cable width approximate (mm)
- 7
- Cable height approximate (mm)
- 7
- Number of cores
- 4
- Weight (kg/km)
- 80
- Min. permitted bending radius, moving application with forced guidance (mm)
- 35
- Min. permitted bending radius, moving application/free movement (mm)
- 35
- Outer diameter approximate (mm)
- 7
- Min. permitted bending radius, stationary application/permanent installation (mm)
- 35
- Permitted cable outer temperature during assembling/handling (°C)
- -15 to 70
- Screen
- Yes
- Flame retardant according to IEC 60332-1-2
- Yes
- Halogen free according to EN IEC 60754-1
- Yes
- Halogen free according to EN IEC 60754-2
- Yes
- With protective conductor
- No
- Torsion resistant
- No
- Low temperature resistant according to EN 60811-504+505+506
- No
- Low smoke according to EN IEC 61034-2
- No
- Oil resistant according to EN IEC 60811-404
- No
- Conductor material
- Copper
- AWG size
- 20
- Conductor category
- Class 5 = flexible
- Stranding element
- No
- Core identification
- Colour
- Screen over stranding element
- Braiding
- Screen over stranding
- Braiding
- Suspension element
- None
- Colour outer sheath
- Grey
- Cable geometry
- Round
- Reaction-to-fire according to EN 13501-6
- Class: B2ca
- Shape
- Round
- Halogen free according to EN 60754-1/2
- Yes
- Flame retardant
- According to IEC/EN 60332-1-2
- Low smoke (according to EN 61034-2)
- No
Standards & Compliance
- HS Code
- 8544.11
Cross References
- EAN 7070613072568
- SAP 1200733110
- Code 83871954
Product Documentation
Document preview: LIHCH 4x0,75 mm² Halogen-free (1003579) — Data Sheet (OEM, Norwegian)
